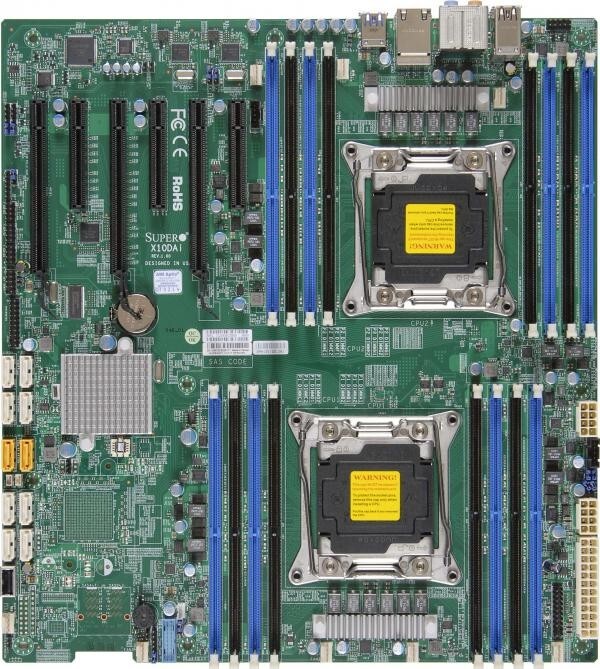

Supermicro X10DAi Motherboard E-ATX Dual Socket R3 (LGA 2011) Xeon FULL WARRANTY
Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s Intel® C612 chipset Up to 2TB ECC 3DS LRDIMM, up to DDR4-2400MHz; 16x DIMM slots 3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slot Dual GbE LAN ports via Intel® i210 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10 6x USB 3.0 (4 rear, 2 via header), 5x USB 2.0 (2 rear, 2 via header, 1 Type A) 7.1 HD Audio with optical S/PDIF Thunderbolt Add-On Card support
Product SKUs MBD-X10DAi -B MBD-X10DAi -O Physical Stats Form x 13" (30.5cm x Xeon® processor E5-2600v4†/ v3 family (up to 160W TDP**) Dual Socket R3 (LGA 2011) Cores / Cache System Bus Note †BIOS version 2.0 or above is required Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity Memory ECC DDR4 SDRAM 72-bit DIMM Sizes Memory Voltage Error Detection On-Board C612 chipset AHCI SATA SCU SATA Network Controllers Dual Gigabit Ethernet LAN ports via Intel® i210 Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 ALC888 7.1 High Definition Audio with S/PDIF header
Input / SATA3 (6Gbps) RJ45 Gigabit Ethernet LAN USB 3.0 ports (4 rear + 2 via header) 5x USB 2.0 ports (2 rear + 2 via header + 1 Type HD Audio with optical SuperDOM(Disk on Module) TPM (Optimized for X10DAi ) 2U / Tower Chassis Notes System BIOS BIOS Type BIOS Features Management Software NMI SuperDoctor® 5 Watch Dog Power Configurations PC Health Monitoring Voltage Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 6 Phase-switching voltage regulator FAN 8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI LED Other Features Operating Environment Operating Temperature Range Non-Operating Temperature Range Operating Relative Humidity Range Non-Operating Relative Humidity Range
