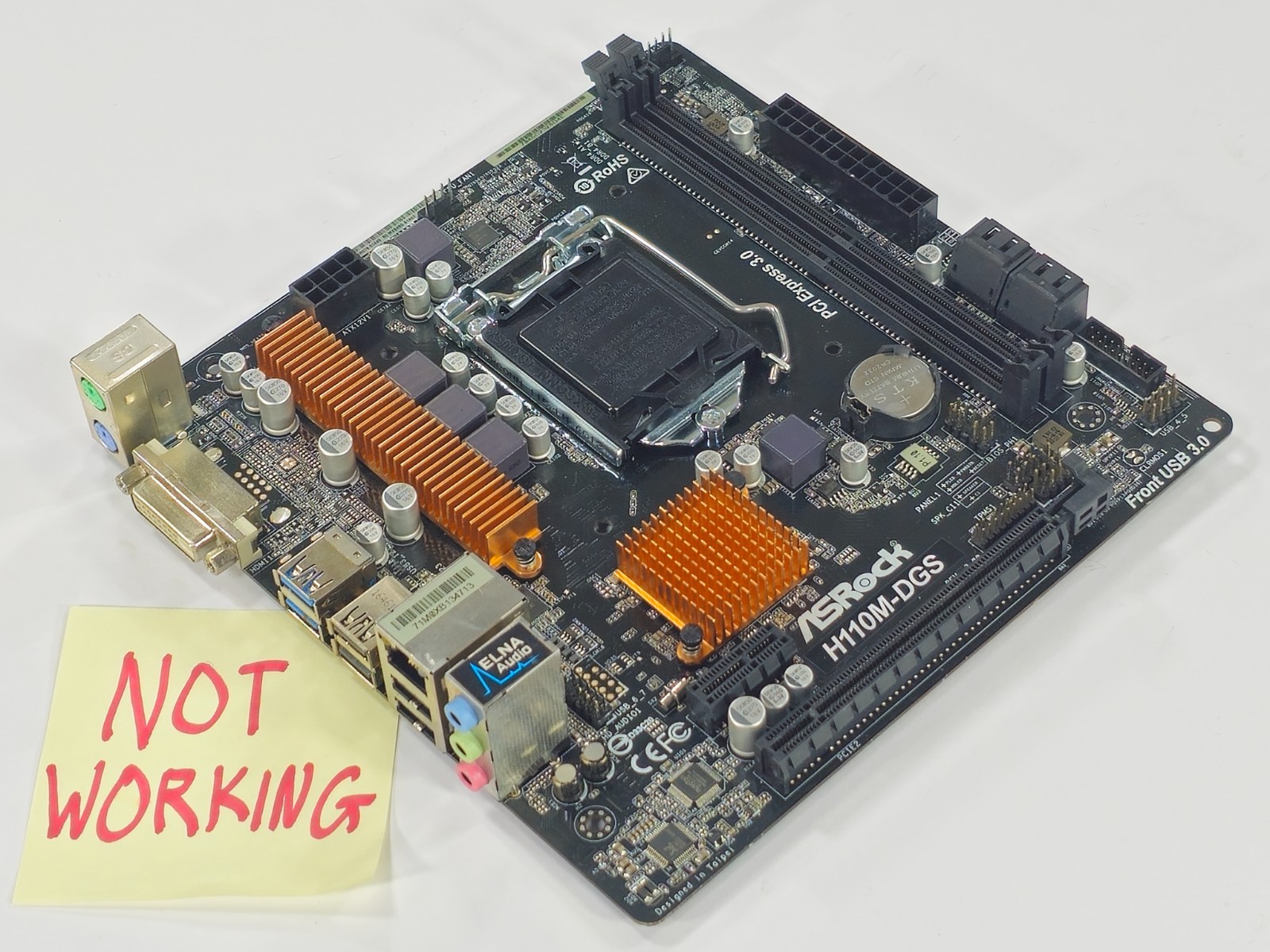

For sale is my ASRockH110M-DGS R3.0 motherboard.It is not in working condition.The motherboard will not power on. It does not come with I/O shield or any other accessories.
Imay have some spare accessory parts available, such as CPU backplates and brackets, CMOS batteries, I/O shields, Wi-Fi antennas, M.2 screws and studs, and PCI-E slot retention clips. If available, these can be added to a motherboard purchase as needed for an additional fee. I don’t offer these items on their own, and quantities are limited to what makes sense for the motherboard(s) being purchased. If interested, send an message to ask about availability and pricing.
This motherboard was shipped as part of a prebuilt computer at some point, so any damage or symptoms may be related to damage during shipping. It was also in storage for a long period of time, so the CMOS battery may be dead if there is a battery still installed, and there may be dust, scratches, dents, bent or broken pins, or other physical damage not explicitly described. You will receive the exact motherboard that is pictured, so make sure to check all of the photos closely for actual physical condition.
Your purchase comes with everything pictured. You are only buying what is pictured, and nothing else. If a cable or something else is not pictured, it is not included!SHIPPING AND PURCHASE TERMSIdo combined shipping discounts! Multiple quantity listings already have automatic shipping discounts included, but multiple items from different listings do not. If you want to purchase from multiple listings from me and you need a shipping adjustment, please contact me and an adjustment will be made after purchase. Shipping discounts on additional items beyond the first item vary, but expect modest to significant savings depending on factors like size, weight, and distance for the package(s). Multiple listing combined shipping discounts are not automatic and must be requested.
Due to increasing amounts of fraudulent buyers using freight forwarders, buyers suspected to be using a freight forwarder will be scrutinized for fraudulent activity, and will require an admission in messages that a freight forwarder is being used for that order. I reserve the right to cancel and refund orders using freight forwarders in order to protect myself from potential fraud.Item serial number will be recorded if present.Signature confirmation will be required on all sales of $750 or more.International buyers READ THIS: International shipping for most countries will be handled by international shipping services. Otherwise it will be shipped with an appropriate USPS, UPS, or FedEx service. Keep in mind, I cannot change customs value of the item and I cannot mark it as gift. Import duties, taxes, and charges aren't included in the item price or postage cost for items not shipped with international shipping. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.___
Learn more about theASRock H110M-DGS R3.0ModelBrandASRockModelH110M-DGS R3.0Supported CPUCPU Socket TypeLGA 1151CPU TypeCeleron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / PentiumSupported CPU TechnologiesTurbo Boost Technology 2.0
* Not Compatible with Intel 8th Gen CPUsChipsetsChipsetIntel H110Onboard VideoOnboard Video ChipsetSupports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530
Pixel Shader 5.0, DirectX 12
Max. shared memory 1024MB**
Supports DVI-D with max. resolution up to 1920 x 1200 @ 60Hz
Supports Accelerated Media Codecs: HEVC, VP8, VP9
Supports HDCP with DVI-D Port
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port* Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
** The size of maximum shared memory may vary from different operating systems.
*** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit.
**** Intel InTru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit.MemoryNumber of Memory Slots2x288pin (DDR4)Memory StandardDDR4 2133Maximum Memory Supported32GBChannel SupportedDual ChannelExpansion SlotsPCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
* Supports NVMe SSD as boot disksPCI Express x11 x PCI Express 2.0 x1 SlotStorage DevicesSerial ATA (SATA)4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot PlugOnboard AudioAudio ChipsetRealtek ALC887Audio Channels7.1 ChannelsOnboard LANLAN ChipsetRealtek 8111CMax LAN Speed1GbpsRear Panel PortsPS/21 x PS/2 Mouse Port
1 x PS/2 Keyboard PortVideo Ports1 x DVI-D PortRJ451 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)USB 3.02 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))USB 1.1/2.04 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
ACPI wake-up function is supported on USB23 ports only.Audio PortsHD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O ConnectorsOnboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))Other Connectors1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)*
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.Physical SpecForm FactorMicro ATXDimensions (W x L)7.5" x 7.4"Power Pin24 PinFeaturesFeaturesUnique Feature
ASRock Super Alloy
- Matte Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP ShopBIOS
- 64MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.0V Voltage Multi-adjustmentSoftware
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Fast Boot (Fast Boot, Restart to UEFI)*
*These utilities can be downloaded from ASRock Live Update & APP Shop.UEFI
- ASRock EZ Mode
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI Tech Service
- ASRock Easy Driver InstallerHardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU VcoreOS
- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*
* To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details.Certifications
- FCC, CE, WHQL___
