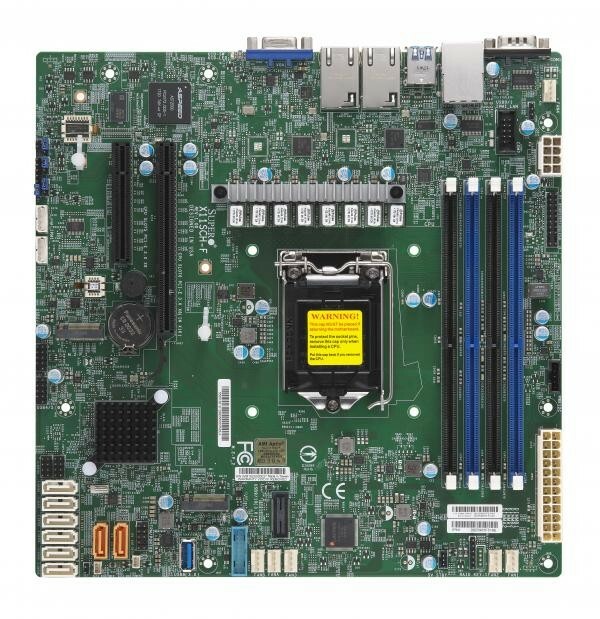

Supermicro X11SCH-F Motherboard Micro ATX LGA 1151 MBD-X11SCH-F-O FULL WARRANTY

• Key Features
  1. 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
  2. Intel® C246 chipset
  3. Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
  4. Expansion slots: 1 PCI-E 3.0 x8 (in x16) and 1 PCI-E 3.0 x8 slots
  5. 2x M.2 NGFF connectors
     M.2 Interface:PCI-E 3.0 x4
     Form Factor: 2280, 22110
     Key: M-Key
     Double Height Connector
  6. 8 SATA3 (6Gbps) via C246; RAID 0, 1, 5, 10
  7. 2 USB 3.1 Gen 2 (rear); 3 USB 3.1 Gen 1 (1 Type A, 2 via header(s)); 6 USB 2.0 (2 rear, 4 via header(s))
  8. Dual GbE LAN ports via Intel® i210
  9. I/O: 1 VGA, 2 COM, TPM header
  10. 2 SuperDOM with built-in power



Main SpecificationsDevice TypeMotherboardDimensions (WxDxH)9.6" x 9.6" (24.38cm x 24.38cm)Form FactorMicro-ATXProcessorCache/Cores8 cores, 16 threadsCompatible Processors8th/9th Generation Intel Corei3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 ProcessorProcessor SocketsSocket LGA 1151 supported, CPU TDP support Up to 95W TDPSystem MemoryDIMM Sizes4GB, 8GB, 16GB, 32GBError DetectionCorrects single-bit errorsMemory CapacityUp to 128GB DDR4 ECC UDIMM, in 4 DIMM slotsCache MemoryMemory Type2666/2400/2133MHz ECC DDR4 SDRAM 72-bitMemorySupply Voltage1.2VOn-Board DevicesChipsetIntel C246IPMIASPEED AST2500 BMCASPEED AST2500Network ControllersDual LAN with Intel Ethernet Controller I210TPM1 TPM HeaderUSB6x USB 2.0 ports (2 rear, 4 via headers)2x USB 3.1 Gen2 ports (rear)3x USB 3.1 Gen1 ports (1 Type-A, 2 via header)Input / OutputSATAIntel C246 controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10Serial Port / Header2 COM Ports (1 rear, 1 header)VGA1 VGA portExpansion / ConnectivityExpansion Slots Total (Free)1 PCI-E 3.0 x81 PCI-E 3.0 x8 (in x16 slot)M.2Form Factor: 2280, 22110Key: M-keyM.2 Interface: PCI-E 3.0 x4Double Height ConnectorSystem BIOSBIOS FeaturesACPI 6.0, SMBIOS 2.7, Plug and Play (PnP), RTC (Real Time Clock) Wakeup, UEFI 2.7, USB Keyboard support, PCI 3.0BIOS TypeUEFI 256MbManagementPower ConfigurationsPower-on mode for AC power recoveryACPI Power ManagementSoftwareIntel Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor 5, WatchdogPC Health MonitoringFAN6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectorsLEDN/ACPU / System Overheat LED, UID/Remote UIDOther FeaturesACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOLVoltage+12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBATEnvironmental ParametersOperating Humidity5 - 95% (non-condensing)Operating Temperature0C ~ 50C (32F ~ 122F)Operating Environment (System)Non-Operating Temperature Range-40C - 70C (-40F - 158F)EnvironmentalOperating Relative Humidity8% - 90% (non-condensing)Compatible ChassisCompatible Heatsink: SNK-P0046PParts ListI/O Cables6x CBL-0044LI/O Shield1x MCP-260-00042-0NMotherboard1x MBD-X11SCH-F
