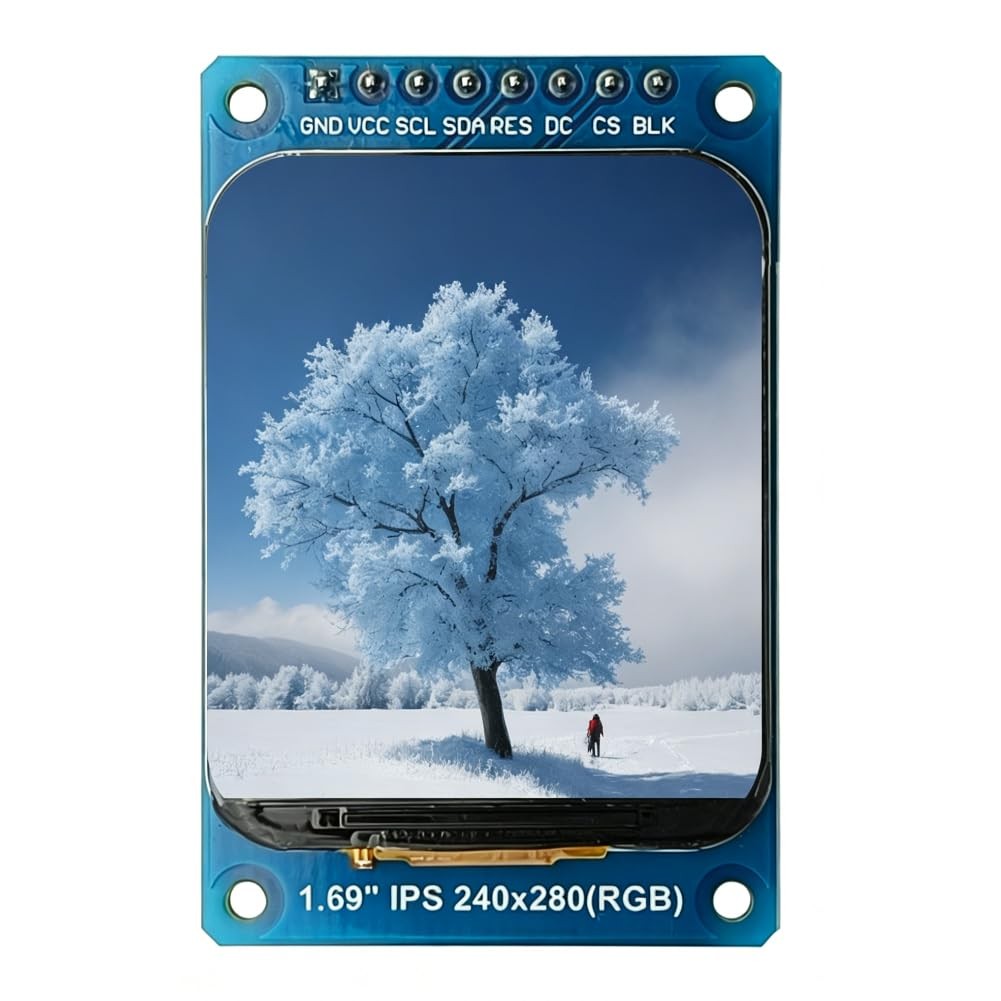

1.69inch SPI display screen parameter Size: 1.69inch Display Color: RGB 65K color Panel Material: IPS full view angle Resolution: 240*280 Interface: 4-wire SPI Drive IC: ST 7789 Touch: No Power Consumption: TBD Active Area: 27.972x32.634 (mm) PCB Size: 31.00x48.00(mm) Weight: 11g Working Temperature: -10 °C to 60 °C Storage Temperature: -20 °C to 70 °C Power voltage: 3.3V Pin Definition 1 GND: LCD Power ground 2 VCC: LCD power supply is positive (3.3V) 3 SCL: LCD SPI bus clock signal 4 SDA: LCD SPI bus write data signal 5 RES: LCD reset control signal(Low level reset) 6 DC: LCD register / data selection control signal (Low level: register, high level: data) 7 CS: LCD selection control signal(Low level enable) 8 BLK: LCD backlight control signal (high level lighting, if you do not need control, please connect 3.3V)
1.69-inch color screen, support 65K color display, display rich colors
240x280 resolution, clear display. IPS full view panel, ultra wide viewing angle
Use 4-wire SPI serial bus, requiring only a few I/O pins to light up the display
Operation Voltage: 3.3V, compatible with arduino, STM32, Raspberry Pi
Widely used with many development boards to display temperature humidity, image, text, number etc.
Applicable products: walkie-talkies, electronic scales, electric ovens, electric rice cookers, attendance machines, learning machines, POS machines, smart speakers, drones, industrial control screens
