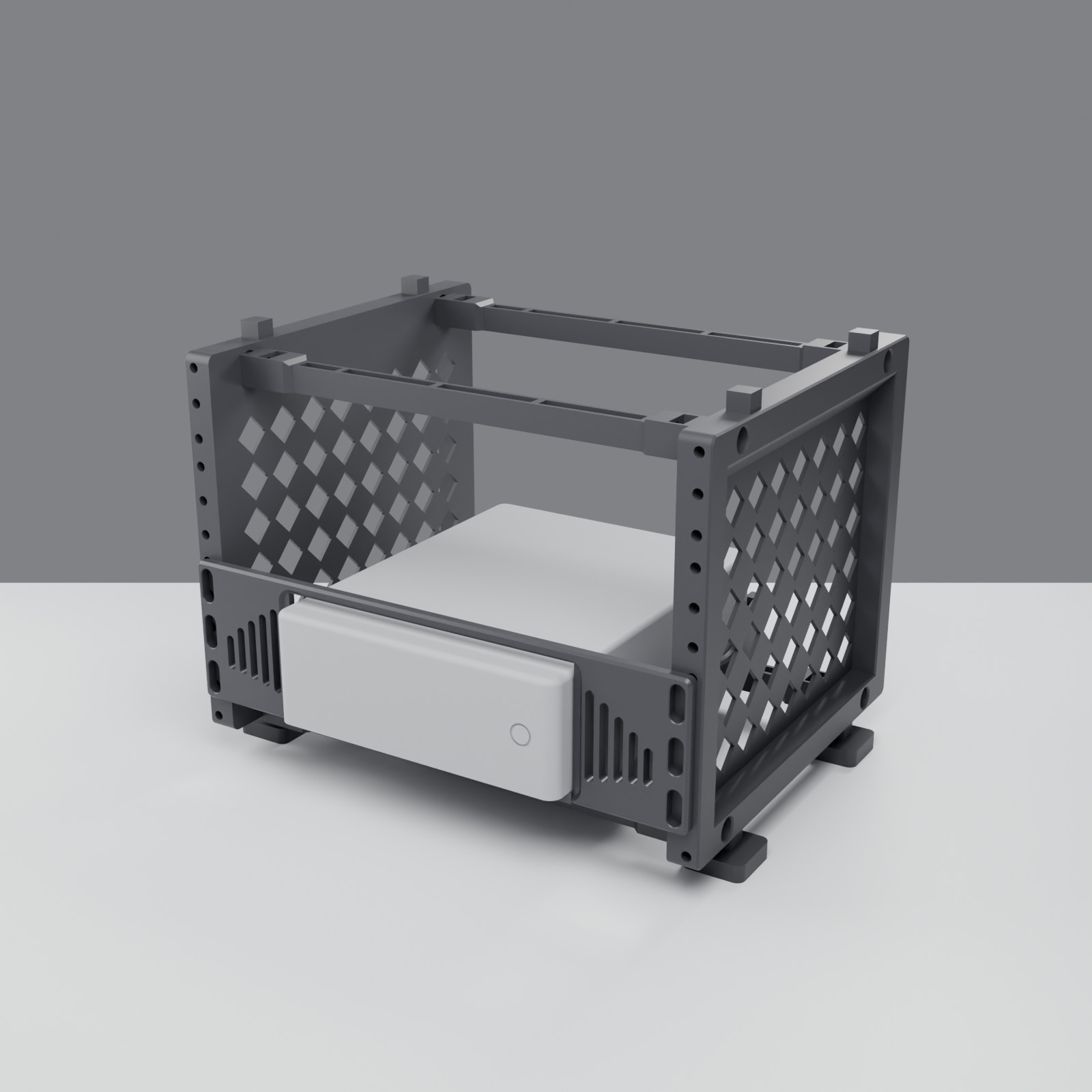

10 Inch Rack Mount 1.5U for UGREEN NASync DXP480T Plus
A 1.5U tray that seats the UGREEN NASync DXP480T Plus in a 10 inch mini rack, printed to order in matte black PETG. It slides in from the front, through the window, until it touches the two rear stop posts, and sits about 11 mm proud of the faceplate. No adhesive, no modification to the device.
Designed From The Published Specification
- Fits: UGREEN NASync DXP480T Plus 4-bay NVMe NAS, 7.05 x 5.59 x 2.05 in (179 x 142 x 52 mm) per UGREEN.
- The rear of the tray is open between two small corner stops: the Thunderbolt, USB and 10GbE cables leave straight back.
- Opening 144.1 x 56.2 mm over a flush floor: 1 mm of side clearance and 4.1 mm above the 52.1 mm body.
- Faceplate 248 mm wide on EIA-310 10 inch hole spacing; 1.5U (66.7 mm) tall.
Build
- Single piece.
- Vented rhythm-slot face and an open honeycomb floor.
- Fits any 10 inch / 254 mm mini rack with standard square or round holes. The mounting slots take M6, M5, #10-32 or M4 rack screws.
- Part measures 248 x 176.2 x 66.7 mm. Matte black PETG.
Printed To Order
Each unit is printed fresh in our shop on calibrated printers and inspected before it ships. Lead time is typically 1-3 business days. Minor layer lines are normal for FDM 3D printing and part of the finish.
Mount only. NAS and power adapter not included. The rack and the device shown in the photos are not included; they appear for scale and fitment only.
Not an official UGREEN product; UGREEN is a trademark of its owner.
