10 Inch Rack Mount 1U for The Raspberry Pi CM5 IO Case
A 1U tray that seats the Raspberry Pi CM5 IO Case in a 10 inch mini rack, printed to order in matte black PETG. It slides in from the front, through the window, until it touches the two rear stop posts, and sits about 11 mm proud of the faceplate. No adhesive, no modification to the device.
Designed From The Published Specification
- Fits: The official Raspberry Pi IO Case for Compute Module 5 (with the CM5 IO Board inside), 170 x 94 x 28 mm per Raspberry Pi.
- The port side (HDMI, Ethernet, USB, USB-C power, microSD and the SMA antenna mount) faces out through the window, so an antenna points straight out of the rack; the camera/display ribbon slots and the power button face the open rear.
- An M.2 SSD or a PoE+ HAT+ fits inside the case as Raspberry Pi designed it, and the lid fan stays uncovered.
- Not for the bare IO Board without the case.
- Opening 172 x 32.4 mm over a flush floor: 1 mm of side clearance and at least 2.5 mm above the case standing on its feet.
- Faceplate 248 mm wide on EIA-310 10 inch hole spacing; 1U (44.45 mm) tall.
Build
- Single piece.
- Vented rhythm-slot face and an open honeycomb floor.
- Fits any 10 inch / 254 mm mini rack with standard square or round holes. The mounting slots take M6, M5, #10-32 or M4 rack screws.
- Part measures 248 x 91 x 44.45 mm. Matte black PETG.
Printed To Order
Each unit is printed fresh in our shop on calibrated printers and inspected before it ships. Lead time is typically 1-3 business days. Minor layer lines are normal for FDM 3D printing and part of the finish.

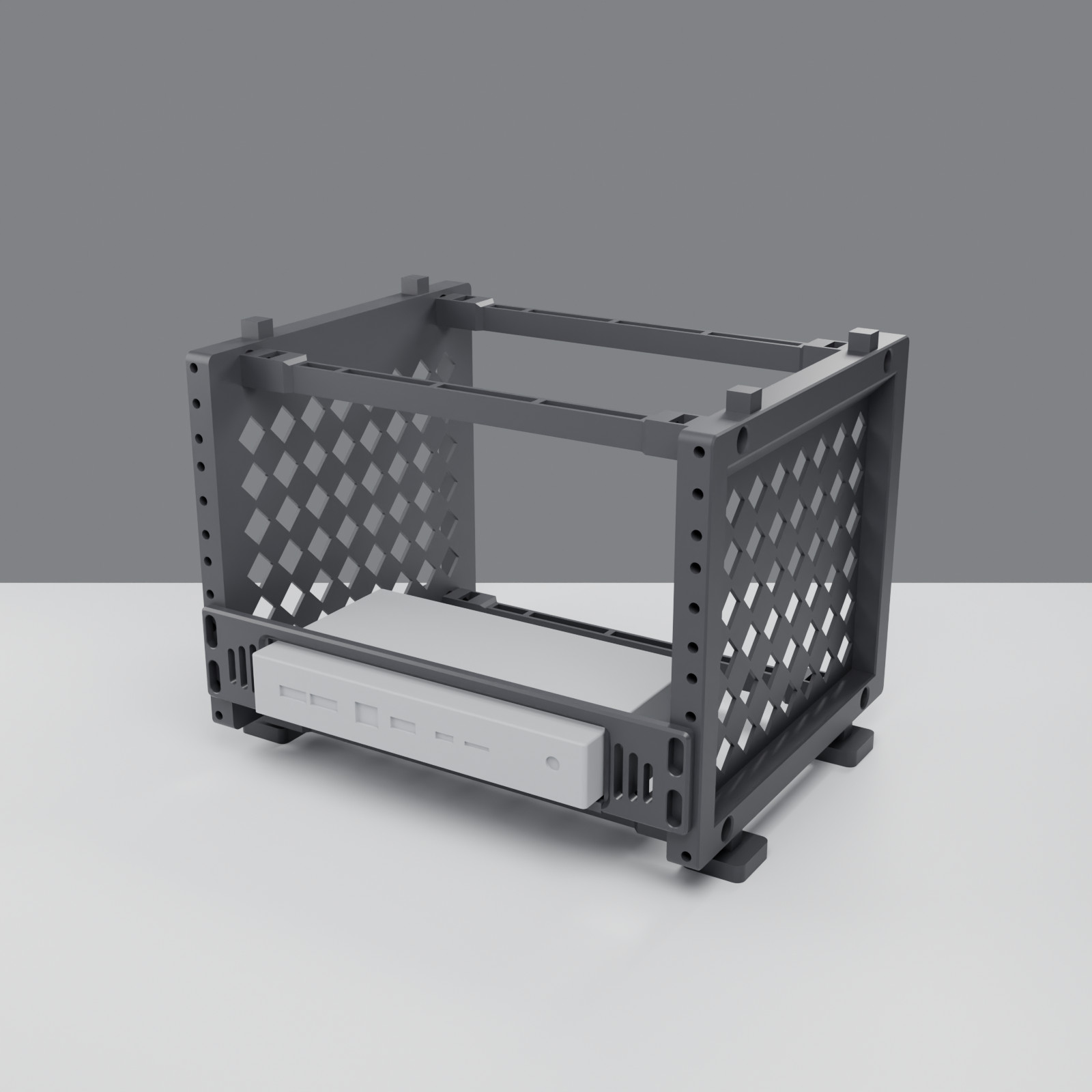

Mount only. Case, Compute Module, IO Board and power supply not included. The rack and the device shown in the photos are not included; they appear for scale and fitment only.
Not an official Raspberry Pi product; Raspberry Pi is a trademark of its owner.
