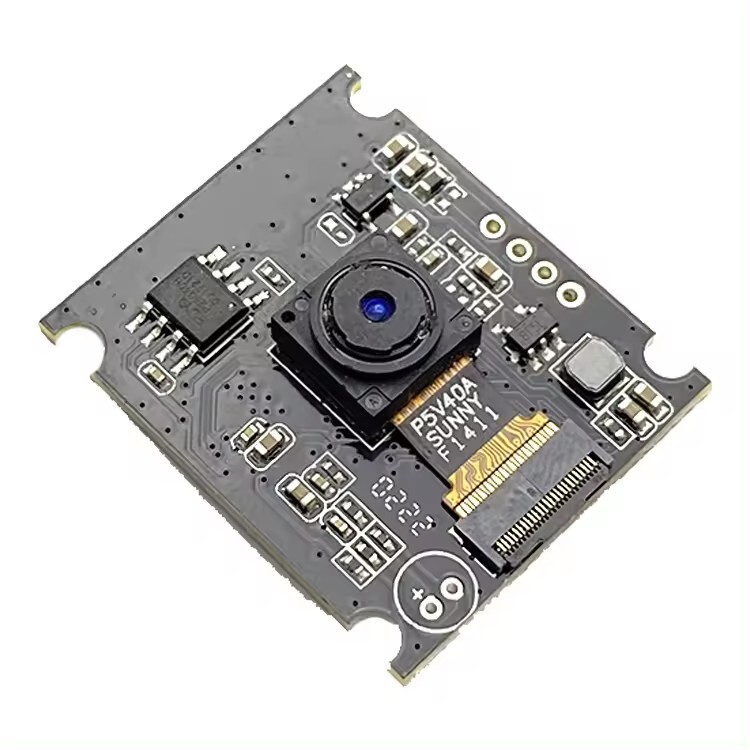

2MP USB2.0Camera ModuleWeinan Electronics this2MP USB camera module adopts the 1/4.0-inch CMOS image sensor with maximum resolution of 1920×1080at 30fps frame rate. Mini size, 70° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.Main Parameters
Product Name
2MP USB2.0 Camera Module
Product Code
WN-L2204.k327L
Module Size
30*25mm
Image Sensor
1/4.0-inch CMOS Sensor
Max. Resolution
1920H x 1080V
Pixel Size
1.4*1.4μm
Output Format
MJPEG,YUY2
Field of View
70°
Lens
EFL: 2.8mm, F.NO: 2.2 4P
Focus Mode
Fixed Focus
Shutter Mode
Electronic Rolling Shutter
Dynamic Range
Up to 37.1dB
Output & Power Supply
High Speed USB2.0
Interface
5PIN 1.25mm Socket
Controllable Parameters
Brightness, Contrast, Saturation, Hue,
Sharpness, Gamma, White Balance, Backlight ,Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
1920x1080 (1080P)
30FPS
30FPS
640 x 480 (VGA)
30FPS
YUY2
1920x1080 (1080P)
5FPS
1280 x 720 (720P)
8FPS
640 x 480 (VGA)
30FPS
Working Conditions
Working Voltage
USB DC+5Vsuppiy
Working Current
90mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
