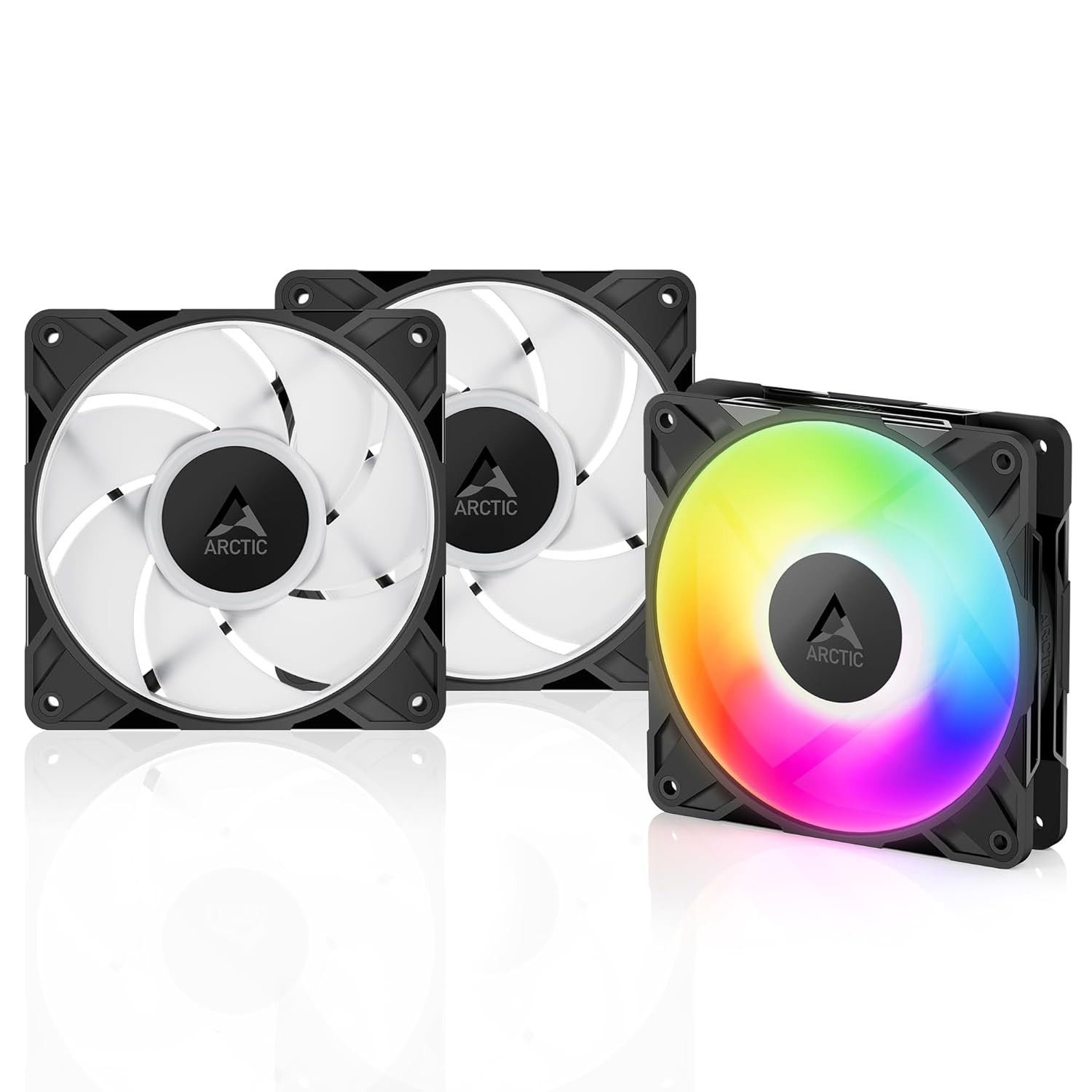

120 mm PWM Computer Case Fan 3-Pack 600-3000 RPM 5V Digital RGB Plastic 4-Pin
- HIGH STATIC PRESSURE: Efficient even with resistance – the generated airflow easily penetrates dense radiators, narrow perforated panels and mesh structures and ensures reliable cooling
- PWM CONTROL WITH WIDE SPEED RANGE: The speed can be progressively adjusted up to 3000 rpm via the 4-pin PWM connection – the fan stops completely at less than 5% PWM
- PRECISE MANUFACTURING FOR MAXIMUM SMOOTH RUNNING: Minimal gaps, automatic balancing and high-precision measurement noticeably reduce vibrations – for quiet, efficient and long-lasting performance
- SMOOTH-RUNNING FLUID DYNAMIC BEARING (FDB): The self-lubricating bearing minimizes noise during operation – ideal for quiet, efficient cooling and a long, reliable service life
- NEW FAN BLADE DESIGN FOR MORE PERFORMANCE: The redesigned rotor blades offer an optimal balance of performance and low noise – especially efficient at low speeds
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and quiet operation. Thanks to an additional PWM connector, the P12 Pro A-RGB can be directly connected to additional fans. This allows multiple fans to be daisy-chained and controlled synchronously via a single connector.
SOTA microcontroller
Reduces motor noise and automatically compensates for speed drops due to increased resistance. Integrated protection mechanisms limit inrush current peaks and reliably protect against damage caused by reverse polarity. Narrower manufacturing tolerances and gaps allow the fan to work more effectively against resistance, maximizing static pressure and airflow efficiency.
More Power - Less Noise
The fan impresses with a significant increase in performance even at low speeds. Normalized to 25 dB(A), the fan offers both increased airflow and increased static pressure – ideal for quiet and efficient cooling. The high static pressure makes Pro fans ideal for use on radiators, as they can effectively move air through tight obstacles. Pressure-optimized fans are also particularly suitable for use with perforated panels or mesh fabrics, which create additional resistance.
Technical Data
Product DetailsUPC840033402804Speed600–3000 rpm (PWM controlled), 0 rpm below 5% PWMWeight185 gAirflow77 cfm | 131 m³/hCurrent0.33 AVoltage12 voltsWattage3.96 wattsMaterialPlasticRGB LEDs12x A-RGB Gen2 LEDsConnector4-pin Fan Connector + 4-pin AdapterDimensions120 (L) x 120 (W) x 25 (H) mmUnit Count3 CountFan bearingHydrodynamic sleeve bearingItem Weight185 gPart NumberACFAN00310ACable Length400mm + 80mm Daisy-Chain CableMaterial TypePlasticRGB Connector3-pin A-RGB Connector + 3-pin AdapterCooling MethodAirNumber of Items3Number of Packs3Static pressure6.9 mmH₂OTypical Voltage12 V DCAir Flow Capacity77 cfmCompatible DevicesDesktopProduct Dimensions4.7"L x 1"W x 4.7"HIncluded ComponentsP12 Pro PWM PST A-RGB, 3 Pack (black)Power Connector Type4-PinRGB Current | Voltage0,40 A | 5 V DCMaximum Rotational Speed1 rpmItem Dimensions L x W x H4.7"L x 1"W x 4.7"HOperating ambient temperature0–40 °C
