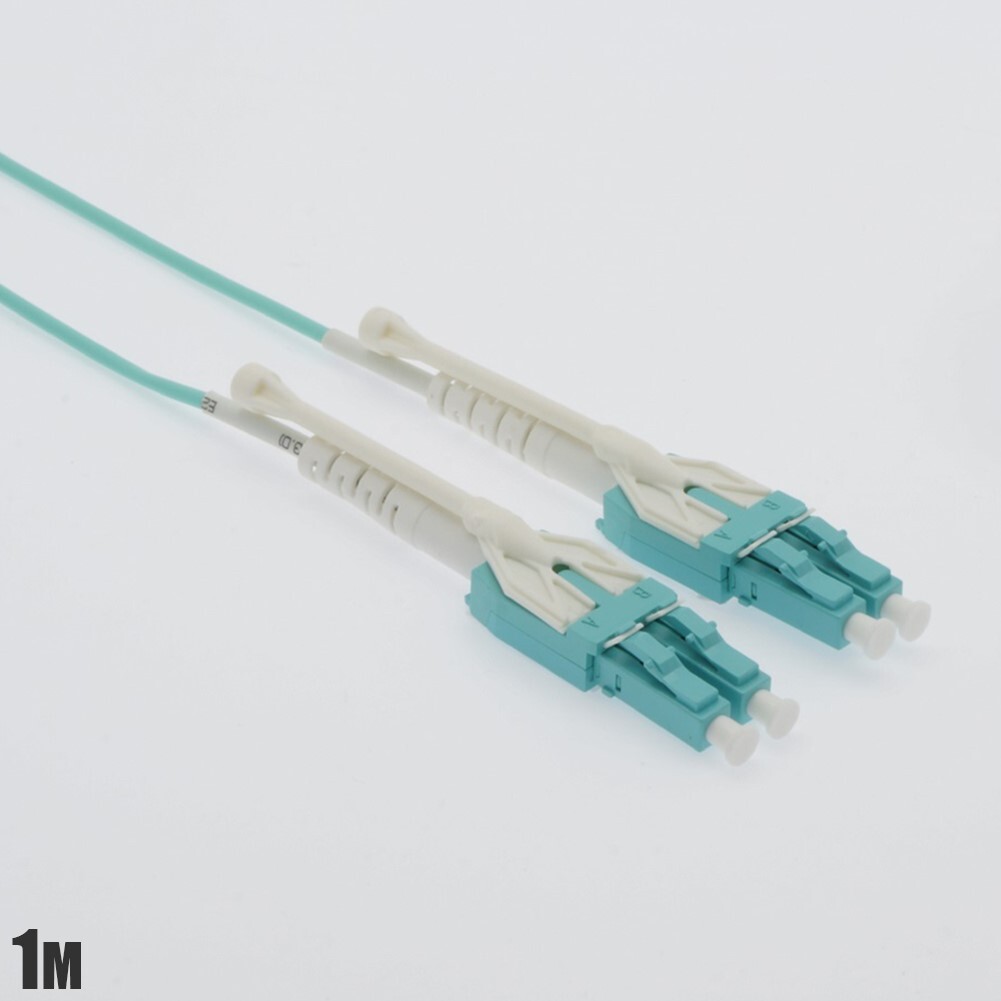

1M Uniboot LC/UPC to LC/UPC OM4 Duplex Multi Mode 50/125 Fiber Optic Cable with Pull Push Tab
Specifications:
Product Type Fiber Optic CableConnector Type LC-LC with Pull Push TabCabled Optical Fiber Uniboot OM4Polishing UPC Return Loss = 55 dBInsertion Loss = 0.30 dB (typical)Ferrule Material Ceramic (zirconia)Ferrule Diameter 1.25 mm / 2.5 mmNominal Diameter Core50/125 µm Temperature Range -20°C +70°C Jacket Material OFNR
Description:
The 1M Uniboot LC/UPC to LC/UPC OM4 Duplex Multi Mode 50/125 Fiber Optic Cable is a fiber optic cable that can transmit high-speed data over long distances.
It has a uniboot design, which means it has one cable that carries both fibers, reducing cable congestion when routing.
It is suitable for high-density fiber patching in data centers that need space saving and less cable management troubles.
The fiber optic cable has LC-LC connectors with pull push tabs, which allow for smooth and easy removal on high density patch panels.
The connectors have UPC polishing, which means they have ultra physical contact and low back reflection.
The connectors have ceramic (zirconia) ferrules, which are hard and durable.
The ferrules have diameters of 1.25 mm and 2.5 mm, which are standard sizes for LC connectors.
The fiber optic cable has uniboot OM4 cabled optical fiber, which means it has a high performance and bandwidth of up to 4700 MHz-km.
The fiber has a nominal diameter core of 50/125 µm, which means it has a core diameter of 50 micrometers and a cladding diameter of 125 micrometers.
The fiber has a return loss of = 55 dB, which means it has a low amount of light reflected back to the source.
The fiber has an insertion loss of = 0.30 dB (typical), which means it has a low amount of light lost when the fiber is inserted into the connector.
The fiber optic cable has a temperature range of -20°C +70°C, which means it can operate in various environments and conditions.
The fiber optic cable has an OFNR jacket material, which means it has an optical fiber nonconductive riser rating.
This means it is fire resistant and can be used in vertical runs between floors.
The 1M Uniboot LC/UPC to LC/UPC OM4 Duplex Multi Mode 50/125 Fiber Optic Cable is a reliable and efficient product that can help you connect your devices and networks with high-speed data transmission.
It is easy to use and install. It is a great product for data centers and other applications that require high-density fiber patching.
