Description:

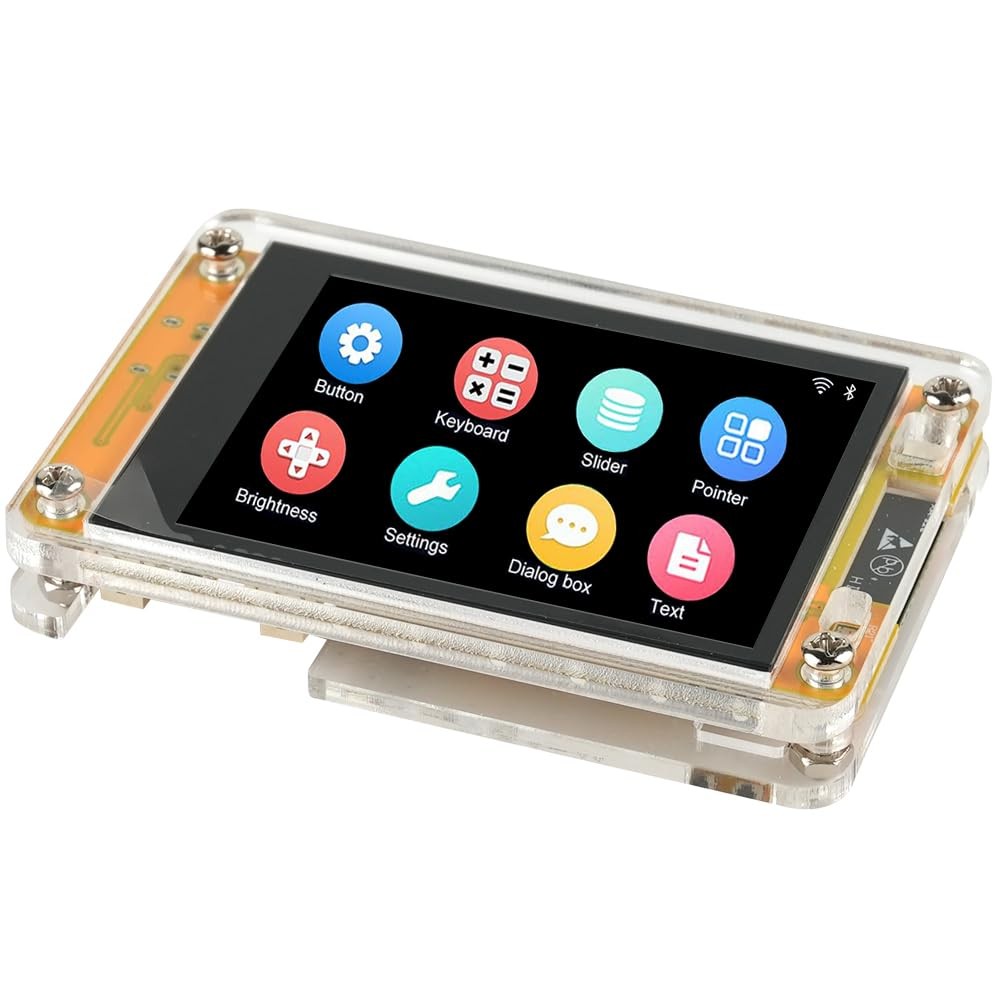

JC2432W328C touch screen uses ESP-32 module as the main control, integrated W F and B L E functions, 240MHz, 520KB SRAM, 448KB ROM, 4MB Flash. JC2432W328C module includes LCD display screen, backlight control circuit, touchscreen control circuit, speaker drive circuit, TF card interface, and serial interface. Feature:
- Operating Voltage: 5V
- 2.8 inch color screen, support 16 BIT RGB 65K colord display rich colors
- 240x320 resolution
- The sample program has been programmed in the factory and can be plugged in
- With TF card slot for easy expansion storage Package Included:
1pcs 2.8" capacitive touchscreen JC2432W328C with cables
1pcs acrylic case for JC2432W328CJC2432W328C module is the combination of ESP-32 development board + 2.8" inch capacitive touchscreen display.
Support uploading code to the 2.8 inch esp-32 touchscreen via IDE or esp32 flash tool.
Recommend to power this esp32 display 2.8" via 5V power adapter, not PC.
Comes with 1pcs esp32 display 2.8 inch, 1pcs 1.25mm 4pin to female dupont wire, and 1pcs case for JC2432W328C .
You can find information of this display if search "JC2432W328C" in , or check the sixth image.
