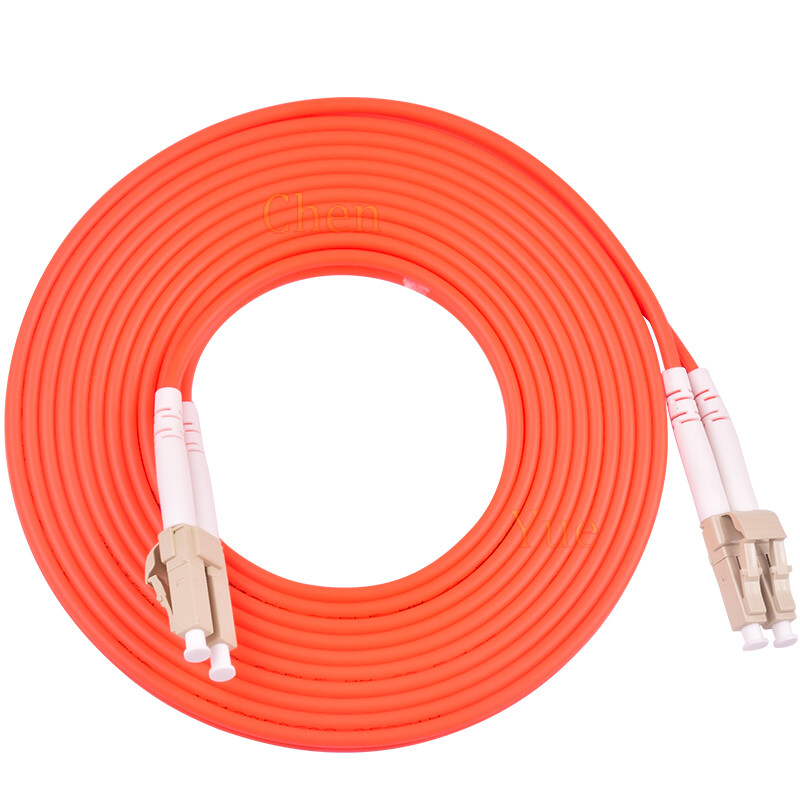

20m LC UPC to LC UPC Duplex 50/125 OM2 Multimode Fiber Optic Patch Cord Cable
Description:
The 50/125μm OM2 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 OM2 multimode fiber optic cable is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.Connector TypeLC to LCPolish TypeUPC to UPCFiber CountDuplexFiber ModeOM2 50/125μmWavelength850/1300nm1G Ethernet Distance550m at 850nmInsertion Loss≤0.3dBReturn Loss≥20dBFiber GradeBend InsensitiveMinimum Bend Radius7.5mmAttenuation at 850nm3.0 dB/kmAttenuation at 1300nm1.0 dB/kmCable JacketPVCCable Diameter3.0mmPolarityA(Tx) to B(Rx)Operating Temperature-20~80°CHow to Choose The Right Fiber Optic Cable Type?DesignationFiber Dia.
(μm)TypeFast Ethernet
100BASE-FX1 Gigabit Ethernet
1000BASE-SX1 Gigabit Ethernet
1000BASE-LX10 Gigabit Ethernet
10GBASE40 Gigabet Ethernet
40GBASE-SR4100 Gigabet Meters275 Meters550 Meters
(mode conditioning patch cable required)33 MetersNot supportedNot supportedOM250/125Multimode550 Meters82 MetersNot supportedNot supportedOM3 (Laser Optimized)50/125Multimode550 Meters300 Meters100 Meters100 MetersOM4 (Laser Optimized)50/125Multimode400 Meters150 Meters150 MetersSinglemode9/125Singlemode5km at 1310nm5km at 1310nm10km at 1310nmPS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.Package Include:
20m MM 62.5 patch cord
