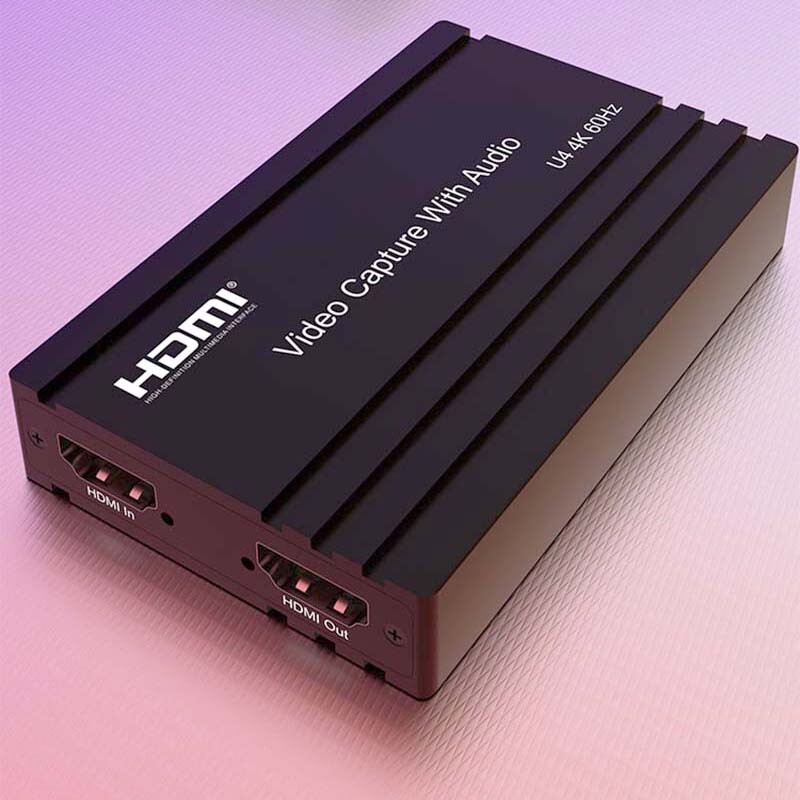

NEW U4 HDMI Video Capture Card With Audio Output / Mic Input
(4K@60Hz)
Product Introduction:
New arrival,brand new and high quality.
This HDMI video capture card can capture both HDMI video and audio,also supports MIC audio mix.
It can transmit HDMI audio and video signal to computer for storage or live streaming,suitable for game
video recording, live meetings,camera live streaming etc. the HD recording supports the RGB format.
Features:
Supports HDCP2.2/HDCP1.4/HDR10.
Input:4k HDMI2.0 input,microphone input.
Output:4k HDMI 2.0 loop out,Type-c (5Gbps) output,audio output.
Automatic detection of the input signals,resolution up to 4K@60Hz.
Support video format:MJPEG/YUY2/NV12/I420,etc.
Uncompressed video and audio acquisition,meet the UVC and UAC standards.
USB Type-c power supply,plug and play, no drive.
Compatible with Windows,MacOS.
Compatible OBS,Potplayer,VLC,Vmix and etc.
Specifications:
Input resolution: maximum 4k@60Hz 4:4:4
Output resolution: maximum 4k@60Hz
Video output mode: MJPEG/YUY2/NV12/I420
Max bandwidth: 600MHz
Max baud rate: 18Gbps
Support audio format: meet the UVC and UAC standards
Cable length :≤5m,AWG26 HDMI standard cable
Max working current: 0.7A/5VDC
Operating temperature range : (-10 to +55℃)
Dimension: approx.100x63x16 (mm)
Package Content:
U4 Video capture card x1
manual x1
Type-C To USB 3.2 data cable x1
Without retail box and other accessories,if any need,pls contact us before purchase.
