Description

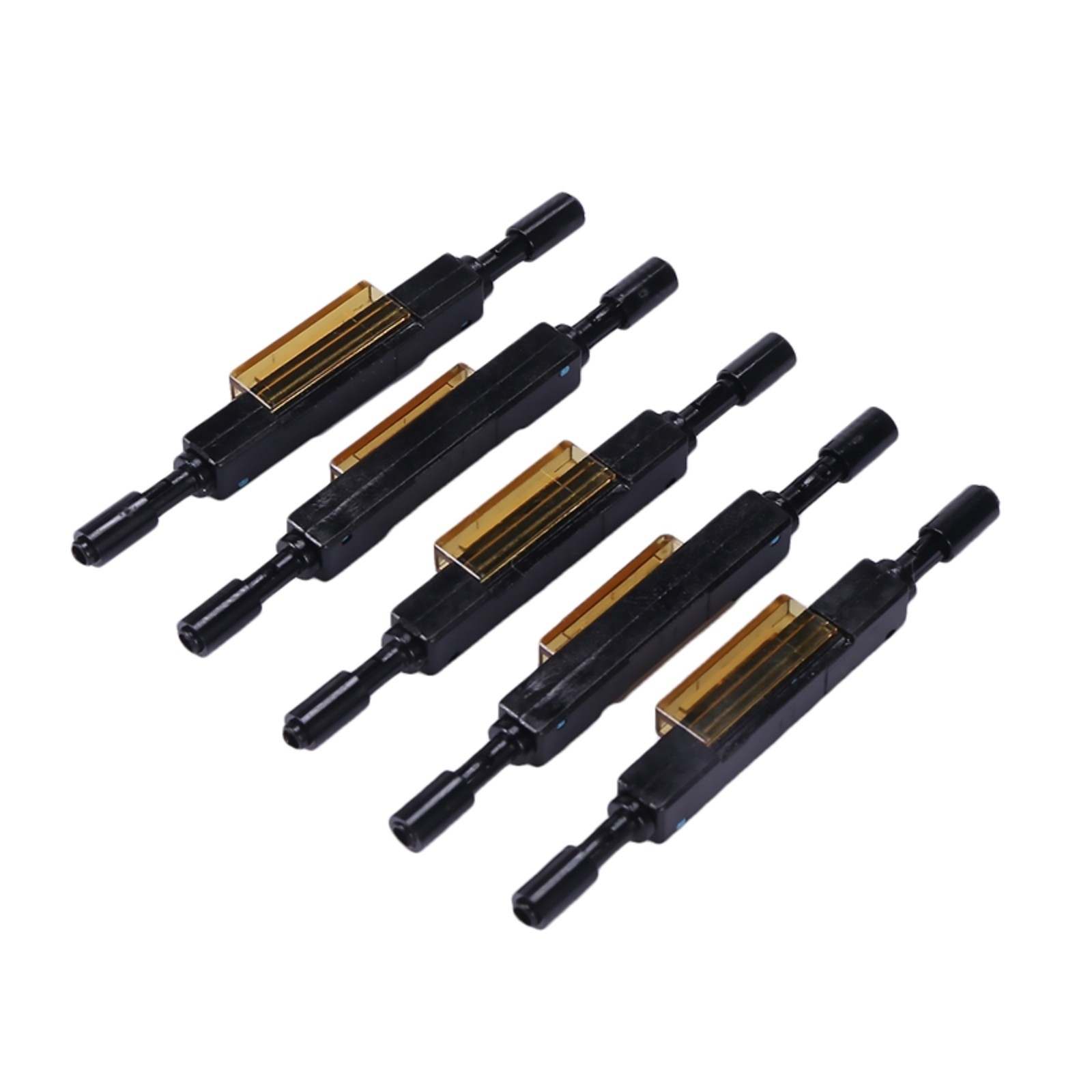

5Pack L925B Fiber Optic Quick Connector Optical Fiber Mechanical Splice

5Pcs Fiber Optic Fast Connector L925B Fiber Optic Quick Connector Optical Fiber Mechanical Splice For Drop name: L925B Fiber Optic Quick Connector
Material: Plastic
Color: Black
Applicable optical cable: 250um/900um
Insertion loss: AVG ≤ 0.2dB, MAX ≤ 0.5dB
Return loss: AVG ≥ 45dB, MIN ≥ 40dB
Tensile strength: 250um bare fiber ≥ 2N/30s, 900um tight sleeve fiber ≥ 4N/30s
Repeated assembly: ≥ 3 times
Working temperature: -40 - + 85
Size: 45x5x5 mm

Features:
1. Metal V-groove design, high fiber optic connection accuracy and excellent technical indicators.
2. Core structure: adopts box structure design, good sealing performance, supporting liquid is not easy to lose, and strong weather resistance;
3. Applicable optical cable: suitable for any combination of 0.25mm fiber and 0.9mm fiber.
4. simple operation, fast construction speed, high installation success rate, long service life, simple and convenient later maintenance.

Package Includes:
5x L925B Fiber Optic Quick Connector
6x Dust-free paper
1x Instructions
1x Box
10x 250 line pipe

Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing
