8-Port Gigabit 10/100/1000 Mbps Ethernet Desktop Switch - Intellinet (530347)
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

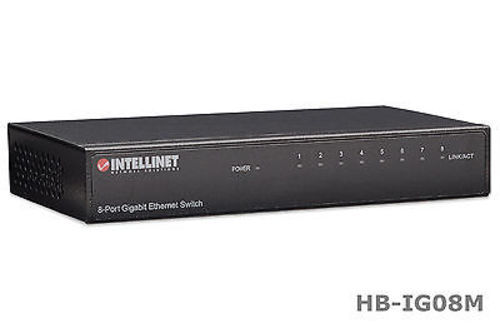

8-Port Gigabit 10/100/1000 Mbps Ethernet Desktop Switch - Intellinet (530347)
Price: US $45.95
8-Port Gigabit 10/100/1000 Mbps Ethernet Desktop Metal Switch - Intellinet (530347)


Features

  • 10/100/1000 auto-sensing Auto MDI-X ports — automatically detect optimal network speeds
  • High performance, half and full duplex, with zero packet loss
  • Full flow control support provides optimum performance
  • Auto-learning of network configuration
  • Supports up to 8192 MAC address entries
  • 128 kBytes buffer memory
  • Supports jumbo frames up to 9 kBytes
  • Store and forward switching architecture
  • Non-blocking wire-speed forwarding and Standards
    • IEEE 802.3 (10Base-T Ethernet)
    • IEEE 802.3u (100Base-TX Fast Ethernet)
    • IEEE 802.3ab (Gigabit Ethernet)
    • IEEE 802.3x (Flow Control and Backpressure)

    General
    • ANSI/IEEE 802.3 NWay auto-negotiation
    • Non-blocking, store and forward switching architecture
    • Backpressure flow control for half duplex mode on 10/100 Mbps ports
    • Connectors: 5 10/100/1000 Mbps RJ45 ports
    • Switch architecture: store and forward switch technology
    • Network cables:
    • - 10Base-T: Cat3, 4, 5 UTP/STP
    • - 100Base-TX: Cat5 UTP/STP
    • - 1000Base-T: Cat5e UTP/STP
    • Certifications: FCC Class B, CE, RoHS

    Performance
    • Filter/forward rate
    • - 10Base-T: 14,880 pps (packets per second)
    • - 100Base-TX: 148,800 pps (packets per second)
    • - 1000Base-T: 1,488,000 pps (packets per second)

    Package Contents
    • 8-Port Gigabit Ethernet Switch
    • External power adapter
    • User Manual
    CablesOnline Part Number: HB-IG08M
