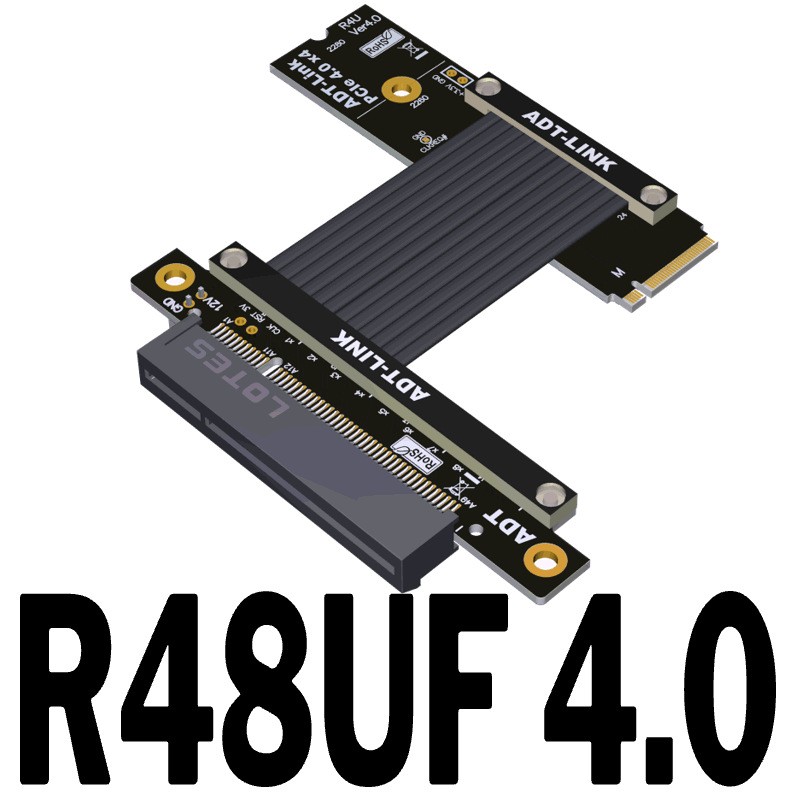

ADT R48UF 4.0 / R48UL 4.0 PCIe 4.0 x8 to M.2 NVMe Riser Extension Cable Gen4 64Gbps Shielded Flat Cable Custom Length 5~80cm
Product Description
Direct from ADT Factory. Reliable performance with great market response. Every cable is 100% power-on tested before shipment.
Brand: ADT Electronics
Model: R48UF 4.0; R48UL 4.0
Product: PCIe x8 to M.2 NVMe Extension Riser Cable
Cable Length: 5cm-80cm, custom length available
Spec: PCIe 4.0 x4 Gen4, 64Gbps Bandwidth
Purchase Restriction
This item is intended for professional engineers for hardware testing only. It is NOT designed for general consumer use. General buyers please DO NOT purchase.
Sourcing Recommendation
We highly recommend purchasing 1~2 samples for validation testing prior to bulk order.
Important Warning
This product has many compatibility limitations. Improper assembly or operation may permanently damage your hardware.This is a custom-made product, non-returnable and non-refundable. Please fully verify and confirm before checkout.
Note: It supports PCIe 4.0 standard, but signal attenuation is unavoidable with extension cables. Full PCIe4.0 speed is NOT guaranteed. If your hardware is aging, has weak signal or works under poor environment, please run at reduced speed.
Cable Length Definition
The listed cable length refers only to the visible flat cable section. PCB boards and connectors are excluded. Please refer to the blue dimension arrow mark on our product diagram.
Product Key Advantages
✅ ADT 4th Gen Self-developed Shielded High-Speed CableFitted with premium connectors, delivers stable high-frequency PCIe 4.0 x1 8Gbps transmission.
✅ Flexible Custom LengthCustom length available from 3cm up to 100cm. Low-impedance cable design, stable full PCIe4.0 speed within 60cm.
✅ Differential Signal No-Via PCB DesignEliminates signal attenuation and interference caused by parasitic capacitance & inductance. Prevents CAF micro-short faults for long service life.
✅ High TG Low-Loss PCB with 1oz Copper & Gold-Plated FingersHigh-frequency low-resistance PCB material. 1oz thick copper layer and sufficient gold plating on gold fingers. Reduces crashes and noise issues caused by oxidation and rising impedance.
✅ Reinforced Soldering Joints3mm thick PCB reinforcement pads at soldering points, secured with screws and hex lock nuts. Tear-resistant, anti-interference, prevents broken wires and lifted pins.
✅ Low-profile & Widened PCB DesignLow-profile PCB avoids collision with graphics cards. Widened & elongated PCB for easier installation and lower risk of hardware damage.
FAQ
Q: What is the cable quality? Does it come with shielding?A: It adopts full metal layer shielding with advanced EMI conductive polymer material for flat ribbon cable.This technology fully covers each wire with conductive polymer EMI shielding, blocking incoming and outgoing electromagnetic radiation. It minimizes interference and performance drop while reducing cable weight.
Q: Cable thickness? Is it flexible? Can it be bent?A: Cable thickness is only 1.3mm. The flat cable is soft and flexible. Proper bending will not affect performance.
Purchase & Installation Notes
- Check connector polarity before plugging in. Never reverse or misalign the connector, this may burn your hardware. Hold the socket firmly during insertion. Do NOT apply excessive force which may break pins.Do NOT bend or pull the cable within 2cm from soldering points on both ends.
- Motherboards and hardware vary in signal driving capability. Our lab test results do not guarantee identical performance on your setup. Signal loss always occurs on extension cables. Do not buy if you require zero-loss perfect performance.
Motherboards and adapters will age and oxidize over time. Extension cables increase instability on aged hardware.
Not compatible with hardware older than 4 years. Do NOT buy for old devices.
- This product is for professional engineers only, for hardware testing purpose. Not permitted for other applications. Please do not purchase if you do not meet this R48UF 4.0 / R48UL 4.0
- Interface: PCIe x8 male to M.2 NVMe
- Standard: PCIe 4.0 Gen4
- Bandwidth: 64Gbps
- Cable Type: Shielded flat ribbon cable
- Cable Thickness: 1.3mm
- Length: 5~80cm, custom length available
- Application: Server, industrial, hardware lab testing
