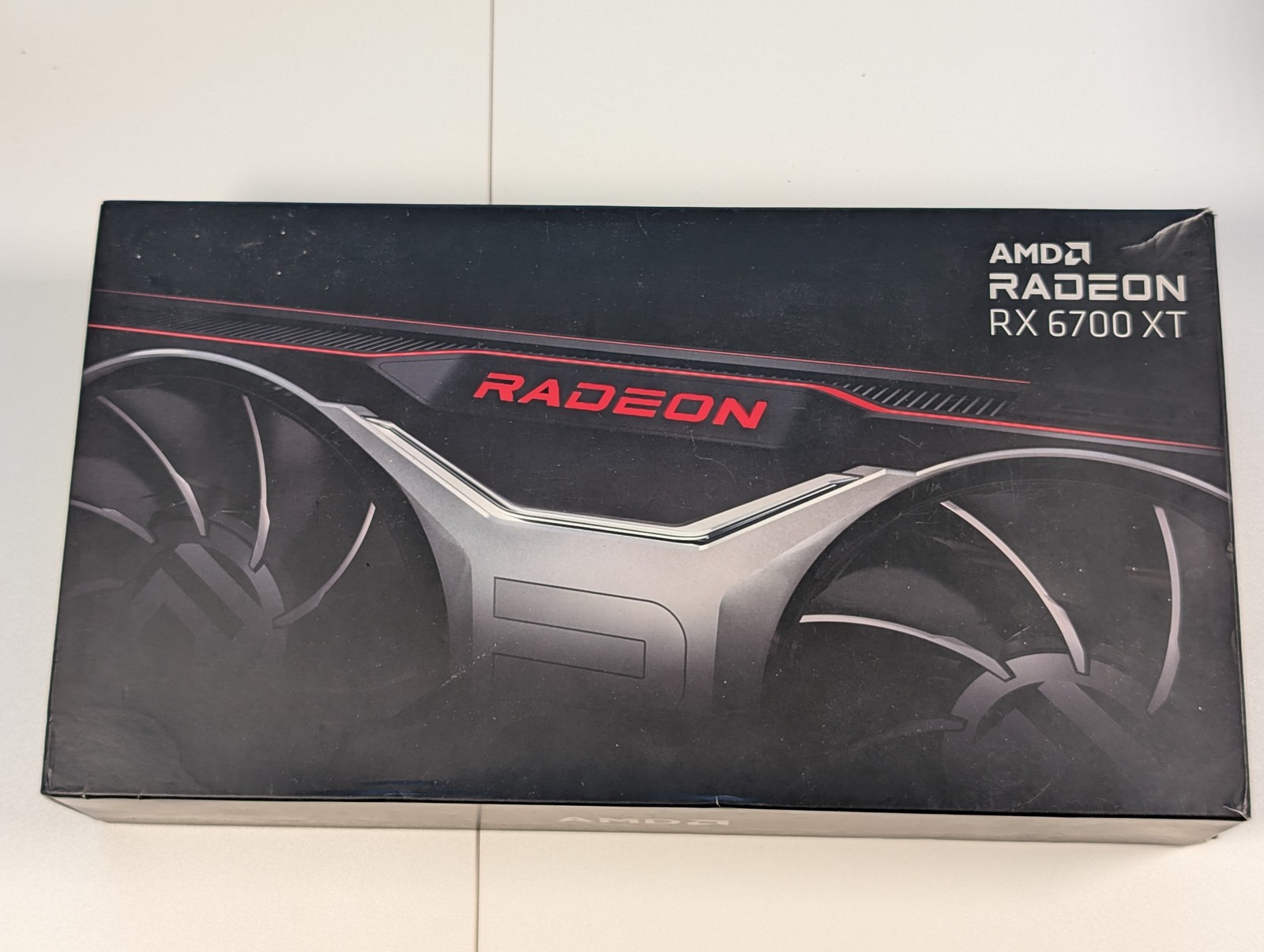

Includes a 1-year warranty.Retail box included.AMD Radeon RX 6700 XT 12GB GDDR6 Reference Edition Graphics Card
UPC: 727419312905
MPN: 102D5121100 709287
Brand: AMD
Chipset Manufacturer: AMD
Chipset/GPU Model: AMD Radeon RX 6700 XT
Memory Size: 12 GB
Memory Type: GDDR6
Power Cable Requirement: 6-Pin + 8-Pin PCI-E
Cooling Component Included: Fan with Heatsink
Architecture & Compute Performance
Built on the highly efficient 7nm TSMC RDNA 2.0 architecture (Navi 22 XT GPU), this graphics card delivers exceptional high-end gaming and compute performance. It features 2560 Stream Processors across 40 Compute Units and Ray Accelerators.
- Core Clocks: Operates at a base clock of 2321 MHz, a game clock of 2424 MHz, and boosts up to an impressive 2581 MHz for demanding workloads.
- Advanced Architecture: Utilizes AMD's RDNA 2 design for optimized power efficiency and hardware-accelerated ray tracing.
VRAM & Memory Bandwidth
Equipped with 12GB of high-speed GDDR6 memory on a 192-bit memory bus, this GPU ensures smooth texture loading and high-resolution gaming capabilities.
- Memory Speed: Achieves 16.0 Gbps for a total memory bandwidth of 384 GB/s.
- AMD Infinity Cache: Features 96 MB of Infinity Cache to dramatically reduce latency and boost effective bandwidth.
- High-Resolution Ready: The 12GB capacity provides ample headroom for modern 1440p and 4K gaming textures.
Power, Cooling & Connectivity
The AMD Reference design features a dual-axial fan cooler assembly (Model D512) that efficiently dissipates heat while maintaining a sleek dual-slot form factor (267 mm length). Includes original retail box.
- Display Outputs: Features 3x DisplayPort 1.4a with DSC and 1x HDMI 2.1 VRR for next-generation, high-refresh-rate displays.
- Power Requirements: Utilizes 1x 8-pin and 1x 6-pin PCIe power connectors with a 230W TDP (650W PSU recommended).
- Form Factor: Standard dual-slot design ensures compatibility with a wide range of desktop chassis.
OEM and retail GPU comparisons
The offered card is identified above. These references describe other cards; chassis fit, cooler, connectors and firmware vary by manufacturer.
- Dell — Dell RX 6700 XT OEM — AMD Radeon RX 6700 XT — 12 GB — GDDR6: Same GPU and memory configuration; physical interchangeability is not established.
- HP — HP RX 6700 XT OEM — AMD Radeon RX 6700 XT — 12 GB — GDDR6: Same GPU and memory configuration; physical interchangeability is not established.
- AMD — AMD Radeon RX 6700 XT Reference — AMD Radeon RX 6700 XT — 12 GB — GDDR6: Same GPU and memory configuration; physical interchangeability is not established.
