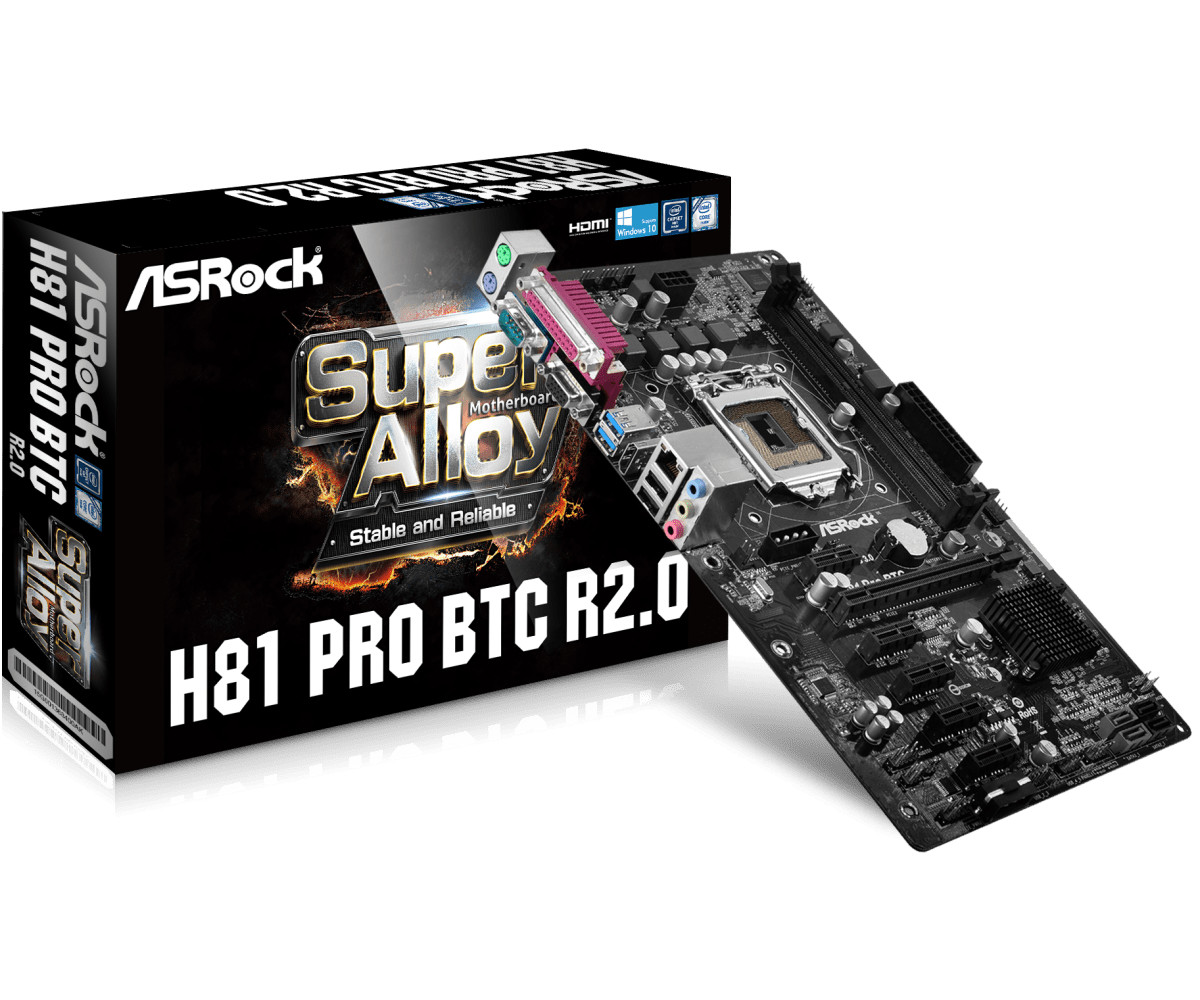

ASRock H81 Pro BTC r2.0 Intel LGA 1150 SATA 6Gb/s ATX 6 PCIE for Cryptobrand new and unused in factory box with original contents.

• Unique FeatureASRock Super Alloy
  - High Density Glass Fabric PCB
  ASRock Full Spike Protection
  ASRock Live Update & APP Shop
• CPU- Supports New 4thand 4thGeneration Intel®Xeon®/ Core™ i7 / i5 / i3 / Pentium®/ Celeron®Processors (Socket 1150)
  - Digi Power design
  - 4 Power Phase design
  - Supports Intel®Turbo Boost 2.0 Technology
• Chipset- Intel®H81
• Memory- Dual Channel DDR3 Memory Technology
  - 2 x DDR3 DIMM Slots
  - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
  - Max. capacity of system memory: 16GB*
  - Supports Intel®Extreme Memory Profile (XMP) 1.3 / 1.2

  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows®32-bit OS. For Windows®64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS- 32Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 1.1 Compliant wake up events
  - SMBIOS 2.3.1 support
  - CPU, DRAM, PCH 1.05V Voltage multi-adjustment
• Graphics- Supports Intel®HD Graphics Built-in Visuals : Intel®Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel®InTru™ 3D, Intel®Clear Video HD Technology, Intel®Insider™, Intel®HD Graphics 4400/4600
  - Pixel Shader 5.0, DirectX 11.1
  - Max. shared memory 512MB**
  - Dual Graphics Output: support HDMI and D-Sub ports by independent display controllers
  - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  - Supports HDCP with HDMI Port
  - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

  *Intel®HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  **The size of maximum shared memory may vary from different operating systems.

  ***Due to chipset limitation, the Blu-ray playback of Intel®HD Graphics is only supported under Windows®8 / 8 64-bit / 7 / 7 64-bit.

  ****Intel®InTru™ 3D is only supported under Windows®8 / 8 64-bit / 7 / 7 64-bit.
• Audio- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  - Supports Surge Protection (ASRock Full Spike Protection)
• LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111GR
  - Supports Wake-On-WAN
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  - Supports LAN Cable Detection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots- 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
  - 5 x PCI Express 2.0 x1 Slots
• Storage- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
  - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
• Connector- 1 x IR Header
  - 1 x COM Port Header
  - 1 x Power LED Header
  - 1 x TPM Header
  - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
  - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
  - 1 x Power Fan Connector (3-pin)
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 2 x PCIe Power Connectors
  - 1 x Front Panel Audio Connector
  - 1 x SPDIF Out connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• Rear Panel I/O- 1 x PS/2 Mouse Port
  - 1 x PS/2 Keyboard Port
  - 1 x Serial Port: COM1
  - 1 x Parallel Port (ECP/EPP support)
  - 1 x D-Sub Port
  - 1 x HDMI Port
  - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jack: Line in / Front Speaker / Microphone
• Software and UEFISoftware
  - ASRock USB Key
  - ASRock APP Charger
  - ASRock XFast LAN
  - ASRock Fast Boot (Fast Boot, Restart to UEFI)*
  UEFI
  - ASRock Interactive UEFI
  - ASRock UEFI Guide
  - ASRock Instant Flash
  - ASRock Internet Flash
  - ASRock Crashless BIOS
  - ASRock UEFI Tech Service
  - ASRock Dehumidifier
  - ASRock Easy Driver Installer

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories- Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
• Hardware Monitor- CPU, Chassis temperature sensing
  - CPU, Chassis, Power Fan Tachometer
  - CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
  - CPU, Chassis Fan multi-speed control
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor- ATX Form Factor: 12.0-in x 7.0-in, 30.5 cm x 17.8 cm
  - All Solid Capacitor design
• OS- Microsoft®Windows®10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit*

  *For the updated Windows®10 driver, please visit ASRock's website for details.
• Certifications- FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
