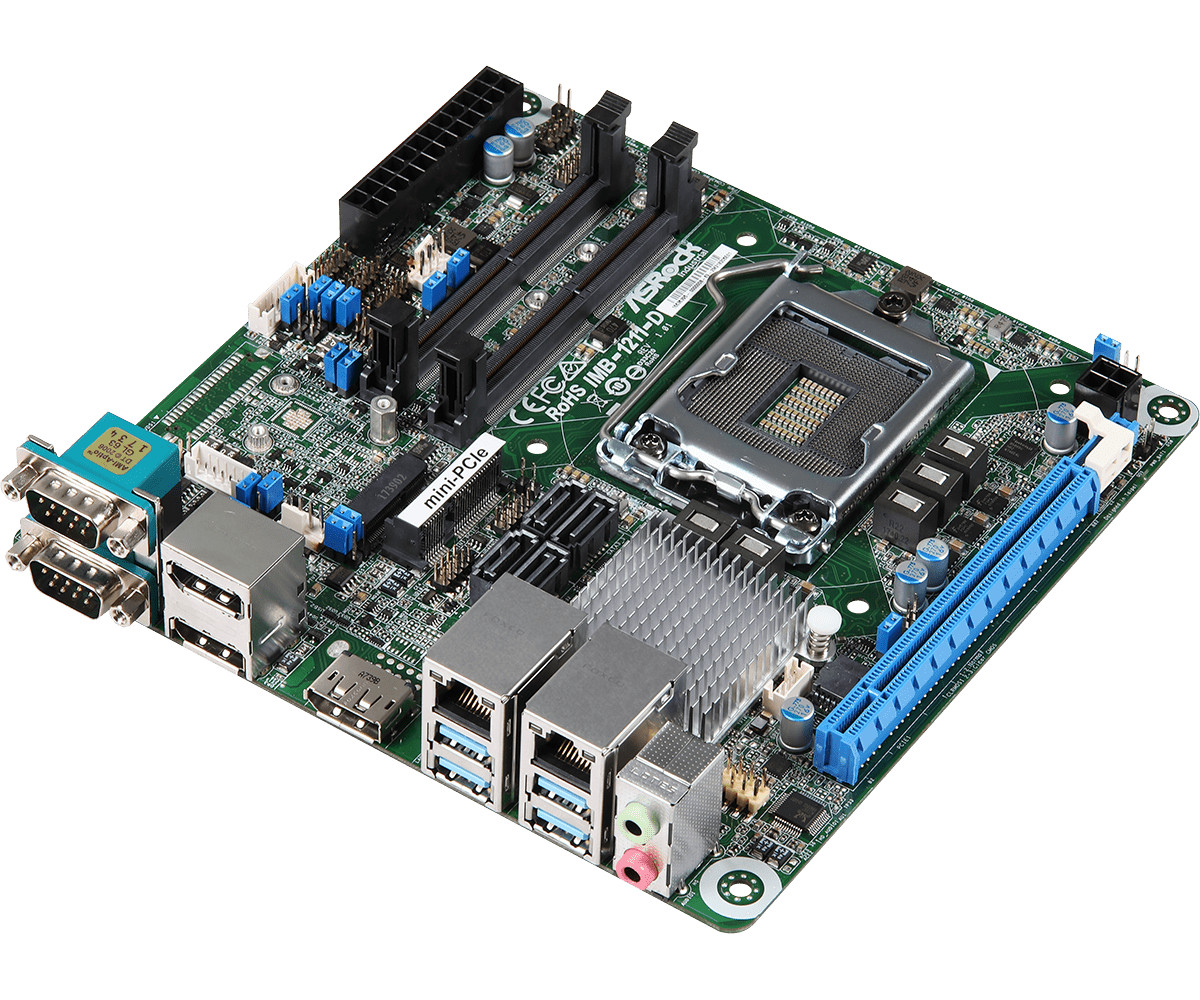

IMB-1211-DMini-ITX Motherboard - Processor SystemCPUIntel®9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 65W
*The Performance of CPUs over 65W will be limited due to power SPI 128 MbitForm FactorDimensionsMini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)MemoryTechnologyDual Channel DDR4 2666 MHzCapacity64GB*
* Intel Core i9/i7/i5 CPUs support up to 64GB (32GB per DIMM)
Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)Socket2 x 260-pin SO-DIMMGraphicsControllerCoffee Lake integrated graphicsDisplayPortDisplayPort 1.2, DP++
Max resolution up to 4096x2304@60HzeDPeDP 1.4 Max resolution up to 4096x2304@60HzMultiDisplayTriple DisplayExpansion SlotPCIe1 x PCIe x16 (Gen3, Support riser card x8/x8, x8/x4/x4)mini-PCIe1 x Full/Half size with PCIe x1 and USB 2.0M.21 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for WirelessAudioInterfaceRealtek ALC887/897, High Definition Audio. Line-out,Mic-inEthernetController/ SpeedLAN1: Intel®I210 with 10/100/1000 Mbps
LAN2: Intel®I219LM with 10/100/1000 Mbps, supports AMT/vProConnector2 x RJ-45Rear I/ODisplayPort3 x DP 1.2Ethernet2 x 1 Gigabit LANUSB4 x USB 3.1 (Gen1)Audio2 (Mic-in, Line-out)COMCOM3, 4(RS-232/422/485)Internal ConnectorUSB4 x USB 2.0 (2 x 2.00 pitch header)COMCOM1, 2, 5(RS232)GPIO4 x GPI, 4 x GPOTPMTPM 2.0 onboard ICLVDSN/AeDP1Speaker Header1StorageM.21 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSDSATA4 x SATA3 (6Gb/s)RAIDIntel®SATA RAID 0/1/5/10Watchdog TimerOutputFrom Super I/O to drag RESETCON#Interval256 Segments, 0, 1, 2, ...255secPower RequirementsInput PWRATX PWR (24+4-pin)Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input readyEnvironmentOperating Temp0ºC ~ 60ºCStorage Temp-40° C ~ 85° COperating Humidity5% ~ 90%Storage Humidity5% ~ 90%AccessoriesGift Package2 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020475010AK)
1 x COM Cable (14G000000340AK)
2 x SATA Data Cable (14G00010107DAK)
 |
|
