Notice:

The Intel Xeon E-2124 does not feature integrated graphics, please install a dedicated graphics card for video output. All other supported CPUs come with Intel integrated graphics.

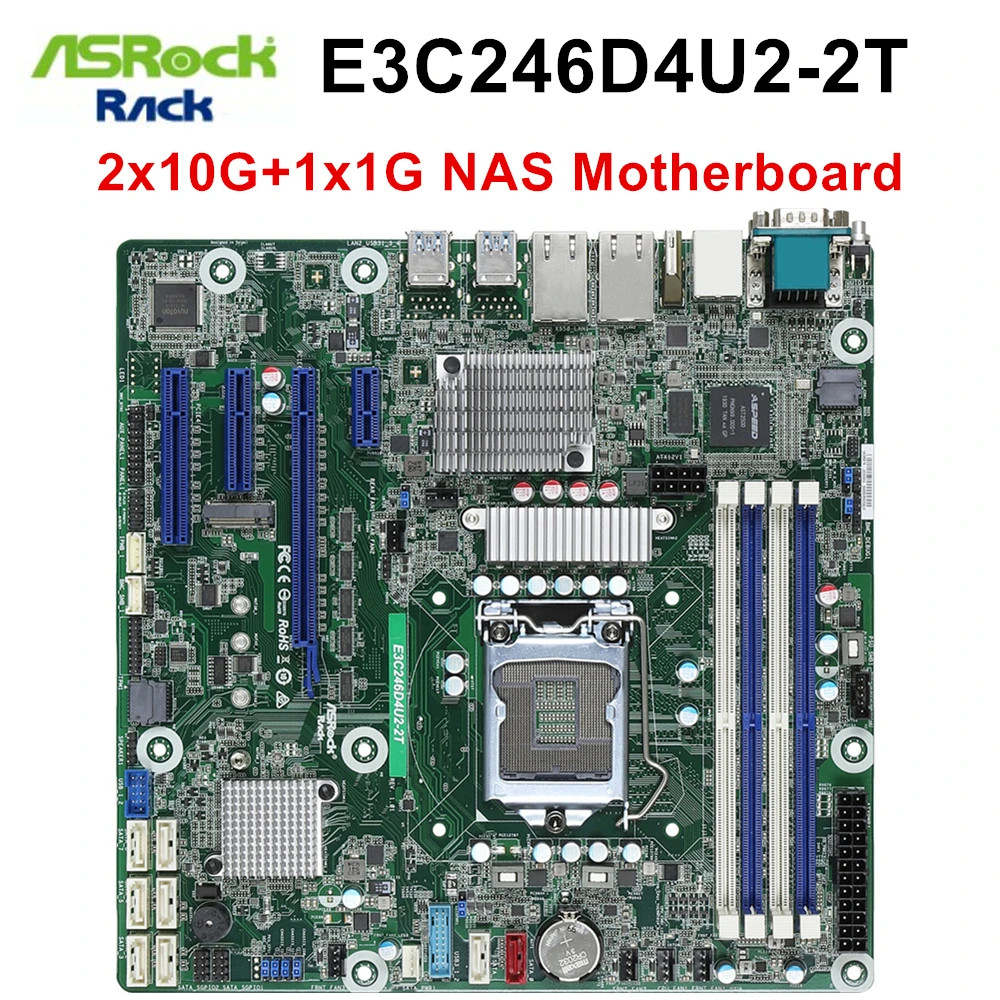

Specification:

Physical Status

Form Factor

mATX

Dimensions

9.6'' x 9.6'' (244 mm x244 mm)

Processor System

CPU

Supports Intel®Xeon®E-2100/E-2200 Series Processors

Socket

Single Socket LGA 1151

Thermal Design Power

Max. 95W

Chipset

Intel®C246

System Memory

Supported DIMM Quantity

4 DIMM slots

Supported Type

Dual Channel memory technology
DDR4 288-pin ECC/non-ECC UDIMM

Max. Capacity per DIMM

32GB

Max. DIMM Frequency

ECC/Non-ECC UDIMM: 2666/2400/2133 MHz

Voltage

1.2V

PCIe Expansion Slots (SLOT7 close to CPU)

PCIe x 16

- SLOT6: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied [CPU]

PCIe x 8

- SLOT4: PCIe3.0 x8 [CPU]

PCIe x 4

- SLOT5: PCIe3.0 x4 [PCH]**Only supported for E3C246D4U2-2L2T

PCIe x 1

- SLOT7: PCIe3.0 x1 [PCH]

Other PCIe Expansion Connectors

M.2 slot

- (2230/2242/2260/2280, Supports PCIE3.0(X4)/SATA3)

SATA/SAS Storage

PCH Built-in Storage

- 8 x SATA3 6Gb/s (SATA0-7, SATA_0 supports SATA DOM)
- 7 x SATA3 6Gb/s (SATA1-7) and 1 x M.2 SSD SATA connected**The M.2 slot (M2_1) is shared with the SATA_0 connector. When M2_1 is populated with a M.2 SATA3 module, the Pin 7 of SATA_0 is disabled.

Ethernet

Interface

- 10000/1000 /100 Mbps

Additional Ethernet Controller

- 2 x RJ45 10G base-T by Intel®X550-AT2
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI

Server Management

BMC Controller

- ASPEED AST2500

Dedicated IPMI LAN

- 1 x Realtek RTL8211E for dedicated management GLAN

Features

- Watch Dog
- NMI

Graphics

Controller

- ASPEED AST2500

VRAM

- DDR4 256MB (128MBx16)

Rear I/O

UID Button/LED

- 1

Video Port

- 1 x D-Sub, 1x HDMI

Serial Port

- 1

USB 3.2 Gen1 Port

- 2

USB 3.2 Gen2 Port

- 2

RJ45

- 2x RJ45: 2x 10GbE by Intel®X550-AT2
- 1x IPMI dedicated LAN
- LAN Ports with LED (ACT/LINK LED and SPEED LED)

Internal Connector/Headers

Power Connector

- 1x (24-pin) + 1x (8-pin)

Auxiliary Panel Header

- 1 (includes chassis intrusion, location button & LED, and front LAN LED)

System Panel

- 1 (RST, PWRBTN, HDDLED, PWRLED)

Buzzer

- 1

Fan Header

- 6(1CPU/3Front/2Rear)

Thermal Sensor Header

- 1 TR1

TPM Header

- 1

SGPIO Header

- 2

SMBus header

- 1

PMBus header

- 1

IPMB Header

- 1

Clear CMOS

- 1 (header and short pin)

ME/SPS Recovery

- 1

USB 3.2 (Gen1) Header

- 1 (supports 2 USB 3.1 Gen1 ports)

USB 2.0 Header

- 1 (supports 2 USB 2.0 ports)

LED Indicators

80 Debug Port LED

- 1

Fan Fail LED

- 6 (Header)

System BIOS

BIOS Type

- 256 Mb AMI UEFI Legal BIOS

BIOS Features

- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash

Hardware Monitor

Temperature

- CPU/PCH/DDR/LAN/Storage Temperature Sensing
- MB/Card side/TR1 Temperature Sensing

Fan

- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control

Voltage

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB

Supported OS

OS

Microsoft®Windows®
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.4 (64 bit)
- SUSE Enterprise Linux Server 12 SP1 (64 bit) /
12 SP3 (64 bit)
- Ubuntu 15.10 (64 bit) / 16.04 (64 bit)

Environment

Temperature

Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C

Humidity

- Non-operating humidity: 20% ~ 90% (non-condensing)
