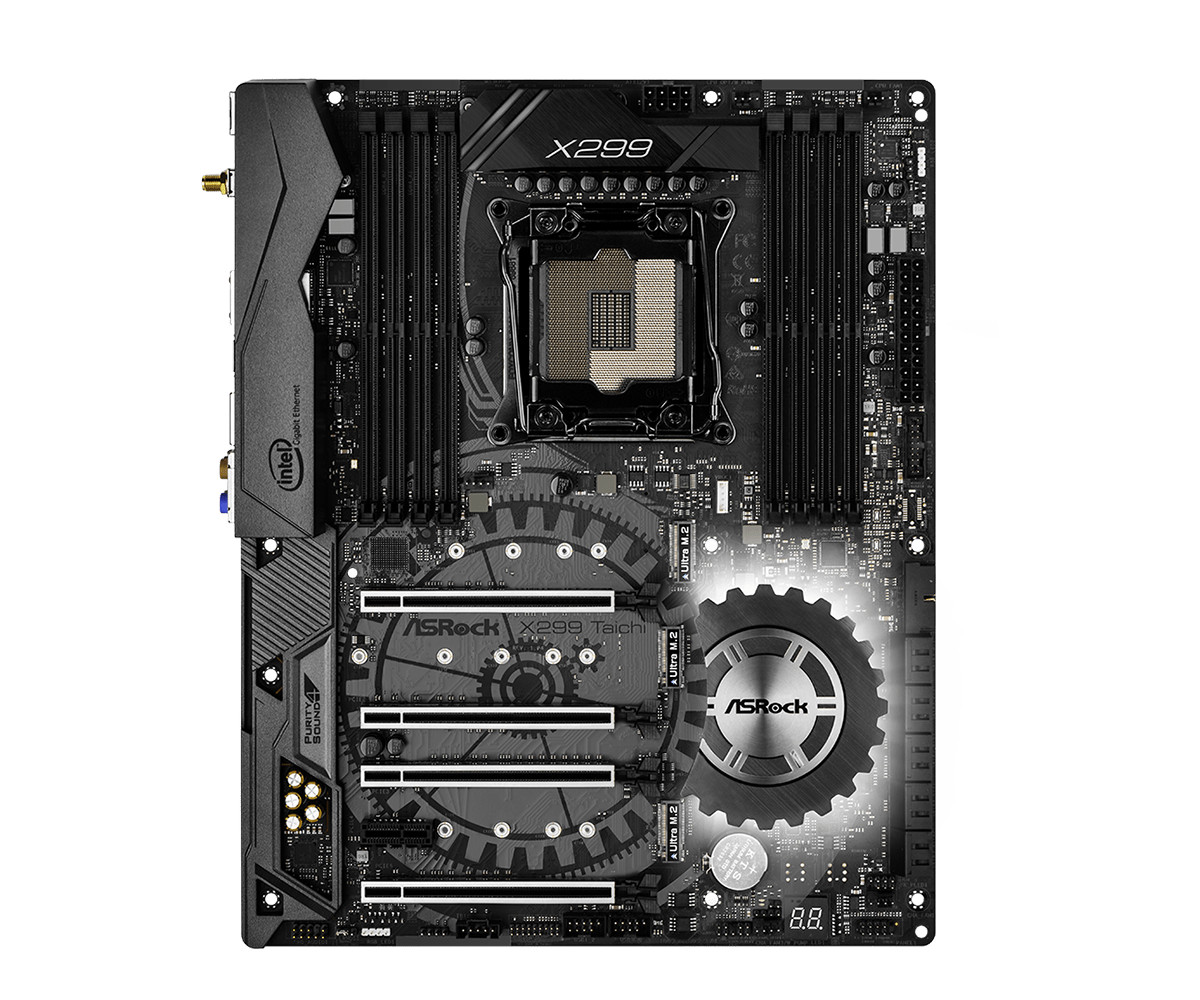

ASRock Taichi X299 Motherboard Workstation Support Intel core i9-10980xe LGA2066
Price: CN $417.56
Unique FeatureASRock USB 3.1 Gen2 - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 65A Power Choke - Dr. MOS - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB ASRock 802.11ac WiFi ASRock Steel Slots ASRock Ultra M.2(PCIe Gen3 x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection(for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU- Supports Intel®Core™ X-Series Processor Family for the LGA 2066 Socket - Digi Power design - 13 Power Phase design - Supports Intel®Turbo Boost Max Technology 3.0 - Supports ASRock Hyper BCLK Engine III
*Please note that the 4-Core processors only support Intel®Turbo Boost Technology 2.0.
*Intel®X299 does not support 1Rx16 memory modules. The maximum memory frequency supported may vary by processor type.
**Due to Intel®microcode updates, RDIMM is not supported with BIOS version 2.00 or above.
***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows®32-bit OS. For Windows®64-bit OS with 64-bit CPU, there is no such limitation.
BIOS- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 6.1 Compliant wake up events - SMBIOS 3.0 Support - CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD Voltage Multi-adjustment
Graphics- n/a
Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Supports Purity Sound™ 4 - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - TI®NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Supports DTS Connect
LAN- Gigabit LAN 10/100/1000 Mb/s - 1 x Giga PHY Intel®I219V, 1 x GigaLAN Intel®I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Dual LAN with Teaming* - Supports Energy Efficient Ethernet 802.3az - Supports PXE
*Teaming is supported on Windows®10 RS2, RS3 and RS4.
Wireless LAN- Intel®802.11ac WiFi Module (Free Bundle) - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots- 4 x PCI Express 3.0 x16 Slots* - 1 x PCI Express 2.0 x1 Slot - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™** - Supports NVIDIA®Quad SLI™, 3-Way SLI™ and SLI™*** - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
*If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x8/x16/x0 or x8/x8/x16/x8. If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x0/x8/x0 or x8/x0/x8/x8. If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x0/x0/x0 or x8/x0/x4/x0. Supports NVMe SSD as boot disks
**3-Way CrossFireX™ is only supported with CPU with 44 lanes or 28 lanes.
***This feature is only supported with CPU with 44 lanes or 28 lanes.
Storage- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel®Rapid Storage Technology 15 and Intel®Smart Response Technology), NCQ, AHCI and Hot Plug* - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** - 2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. If M2_3 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled.
**Supports Intel®Optane™ Technology M10 Series Supports PCIe RAID (on M2_2 and M2_3) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
Connector- 1 x Virtual RAID On CPU Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin)***** - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 Hub) (Supports ESD Protection) - 1 x Dr. Debug with LED
*Support up to 12V/3A, 36W LED Strip
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. CPU_OPT/W_PUMP, CHA_FAN1, CHA_FAN2 and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
*****The Thunderbolt™ AIC card can be installed in the enabled PCIe slot (depending on CPU type).
Rear Panel I/O- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x Optical SPDIF Out Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)* - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Switch - 1 x Clear CMOS Switch - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*Ultra USB Power is supported on USB3_12 ports. ACPI wake-up function is not supported on USB3_12 ports.
Software and UEFISoftware - ASRock A-Tuning - ASRock RGB LED - ASRock APP Charger - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Hardware Monitor- Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCSFR
