Dear customers:
This is Anny's shop, welcome to purchase our items, we will provide excellent products and professional service to you.
We promised all the motherboards are carefully tested, 100% working, No DEFECT, NO FAULT, NO DOA, and shipped in a safe package.
If any problem please contact us, because of the time difference, we may reply you late for hours, please be patient to wait, we must reply you in 12 hours, and give you safisfied solution.
Warranty:
Our item warranty is 90 days, if any problem, we can replace, exchange or refund. But please make sure the item was from me, because our items have warranty mark.
Warm notes:
1. Please DO NOT use fake memory, because most of genuine band motherboards can't support that.
2. Please DO NOT use single-side memory, because some motherboards can't support that.
3. Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
4. Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

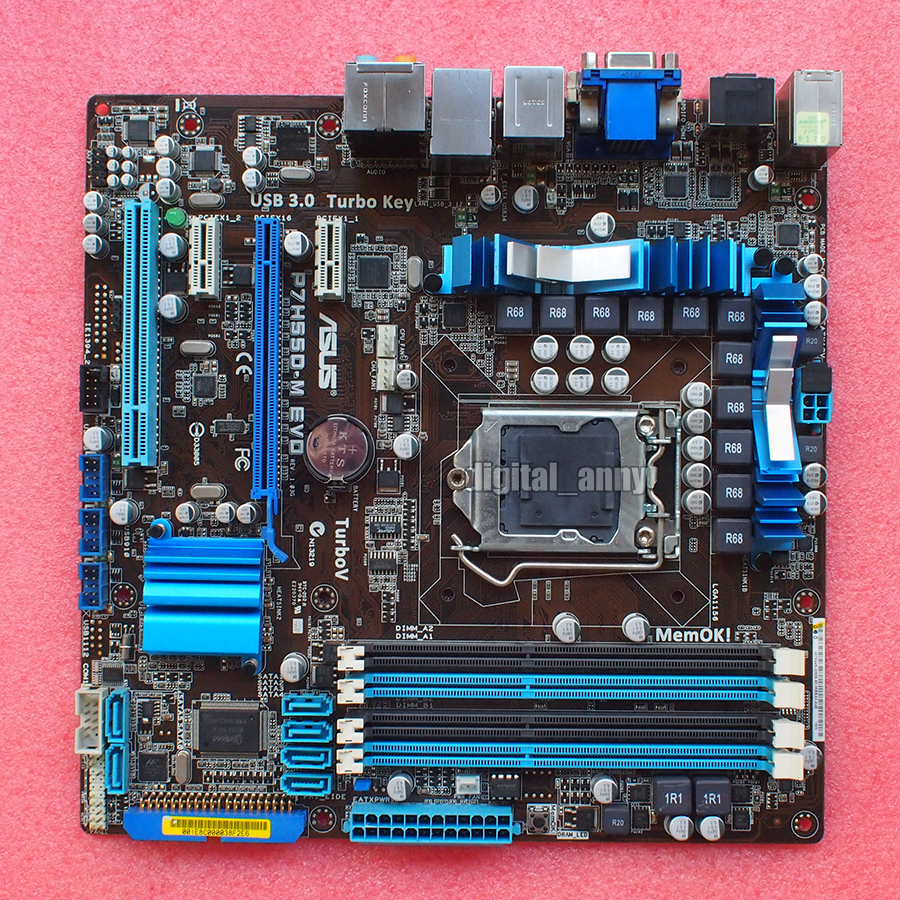

Official specification:
CPU
Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Pentium® Processors
Supports Intel® Turbo Boost Technology*
* The Intel Turbo Boost Technology support depends on the CPU types.
** Refer to ASUS official website for Intel CPU support list
Chipset
Intel® H55 Express Chipset
Memory
4 x DIMM, Max. 16 GB, DDR3 2133(O.C.)*/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
** Refer to ASUS official website for the Memory QVL(Qualified Vendors Lists).
Expansion Slots
1 x PCIe 2.0 x16
2 x PCIe 2.0 x1 (2.5GT/s, gray slots)
1 x PCI
VGA
Multi-VGA output support: HDMI, DVI-D, RGB
Supports HDMI with max. resolution 1920 x 1200 at 60Hz
Supports DVI with max. resolution 1920 x 1200 at 60Hz
Supports RGB with max. resolution 2048 x 1536 at 75Hz
Maximum shared memory of 1748 MB
Storage
Intel® H55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports
Marvell 88SE6111
1 xUltraDMA 133/100 for up to 2 PATA devices
1 xExternal SATA 3.0 Gb/s port (SATA on-the-go)
LAN
Gigabit LAN controller Realtek® 8112L Gigabit LAN controller featuring AI NET2
Audio
Realtek 8-Channel High Definition Audio CODEC
- BD Audio Layer Content Protection
- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
- Optical S/PDIF out ports at back I/O
- ASUS Noise Filter
IEEE 1394
VIA® 6315N controller supports 2 x 1394a port(s) (one at mid-board; one at back panel)
USB
NEC® USB 3.0 controller:
- 2 x USB 3.0 ports (blue; at back panel)
Intel® H55 Express Chipset:
- 10 x USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)
ASUS Unique Features
ASUS Xtreme Design
ASUS Exclusive Overclocking Features
- GPU Boost
- TurboV and Turbo Key
ASUS Xtreme Phase
- 8+3 Phase Power Design
ASUS Exclusive Features
- Express Gate
- MemOK!
- ASUS EPU
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Stack Cool 3
- ASUS Fan Xpert
ASUS EZ DIY
- ASUS Q-DIMM
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
Overclocking Features
Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.00625V increment
- vIMC: Adjustable IMC voltage at 0.02V increment
- vDRAM Bus: Adjustable DRAM voltage at 0.02V increment
- vPCH: Adjustable PCH voltage at 0.01V increment
- vCPU_PLL: Adjustable CPU_PLL voltage at 0.02V increment
- iGPU: Adjustable iGPU voltage at 0.0125V increment
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 200MHz at 1MHz increment
- Internal Base Clock tuning from 80MHz up to 500MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x D-Sub
1 x HDMI
1 x External SATA
1 x S/PDIF Out (Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
4 x USB 2.0/1.1
8 -Channel Audio I/O
1 x PS/2 Keyboard (Purple)
2 x USB 3.0/2.0 ports
1 x DVI-D
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x IDE connector
1 x IEEE 1394a connector
1 x CPU Fan connector
1 x Power Fan connector
6 x SATA 3.0Gb/s connectors
1 x Chassis Fan connector (1x4-pin)
Front panel audio connector
1 x S/PDIF Out Header
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel(Q-Connector)
1 x COM connector
1 x Clear CMOS jumper
1 x MemOK! button
BIOS
64 Mb Flash ROM , SPI, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.5 cm x 24.5 cm )
Accessories:
1 x motherboard
2 x SATA cables
Shipping & Handling:
1. Usually we need 1-2 days to process the items and prepare to ship it. According to your country, we will use the DHL, EMS, UPS, TNT, DPEX expedited shipping, the tracking number can be offered and tracked.
2. The shipping fees have included the local handing and packaging cost. We will send your item base on your address showed on order page. If your address is P.O.BOX, please give us physical address.
3. We can not mark item as "gift", because the custom office and international government regulations prohibit such behavior, thank you for your understanding.
Custom tax:
1. Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
2. Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer service:
Dear buyers, we sincerely do business with you. If you satisfy with our service and products, please leave us a good response. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 12 hours, and do our best to help you solve any problems.
Return policy:
Dear buyer, every item is very valuable to us, please know that we won't send bad products, but in case you need replace, exchange or refund, please read folloing policy.
1. Refund. Please send back the item in original package with all the accessories. When you shipped back, please give us tracking number. We'll refund all your money, as soon as got the returned package.
Please note if the package was loss, we only can refund you the shipping cost you paid. If the accessories was not complete, we need the compensation of the lost parts. If the mobo returned with wilful damage, we need the compensation.
2. Replace. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package.
Please note if the package was loss, we don't resend you any more, then refund you the shipping cost you paid. If the mobo returned with wilful damage, we need the compensation.
Thank you for viewing
