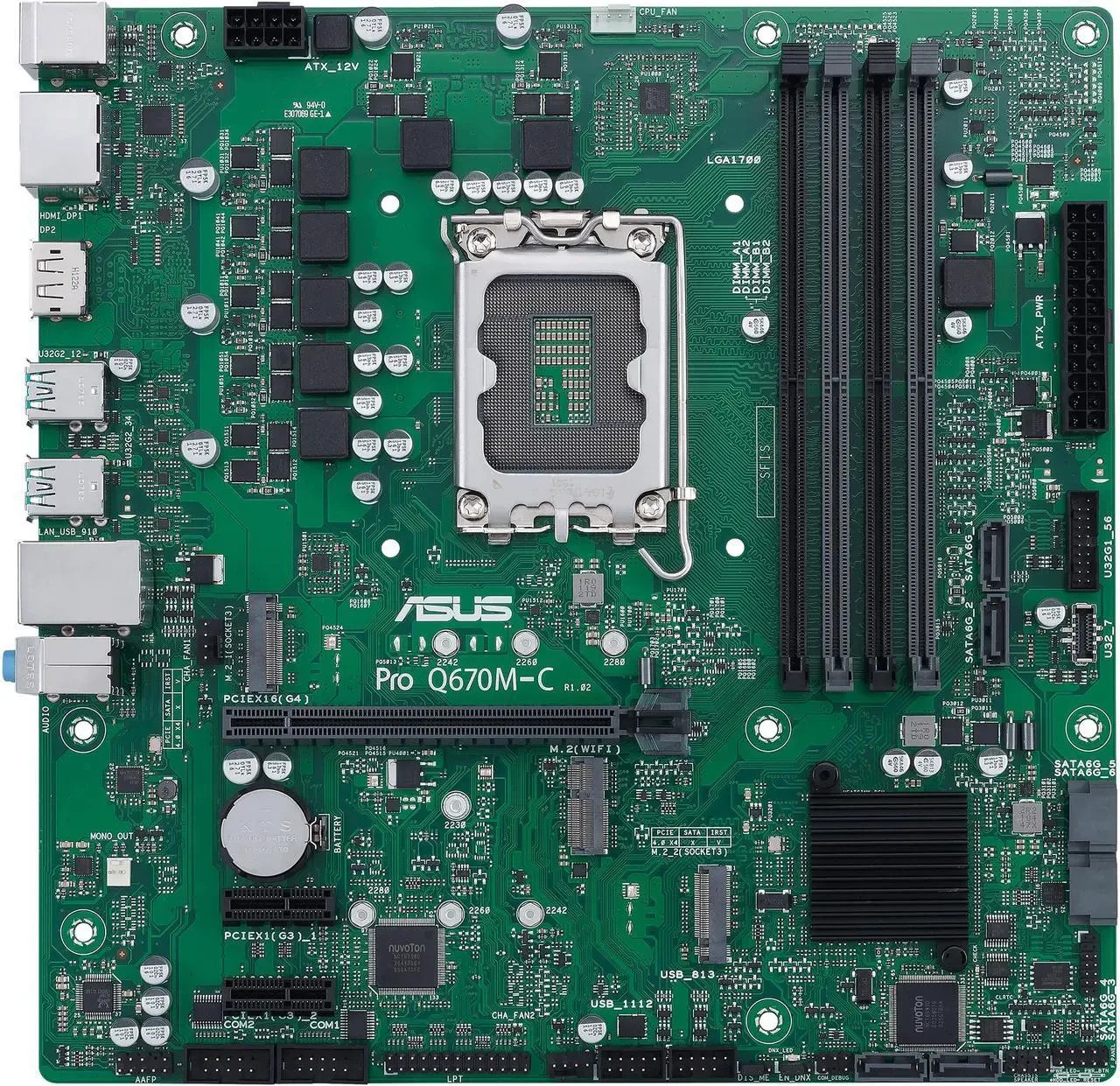

ModelBrandASUSModelPRO Q670M-C-CSMPart Number90MB19E0-MVAAYCSupported CPUCPU Socket TypeLGA 1700CPU TypeSupports 12th Gen Intel Core / Pentium Gold / Celeron Processors* Refer to www.asus.com for CPU support list.Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetsChipsetIntel Q670Onboard VideoOnboard Video ChipsetSupported only by CPU with integrated graphicMemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardDDR5 4800Maximum Memory Supported256GBChannel SupportedDual ChannelExpansion SlotsPCI Express 4.0 x161 x PCI Express 4.0 x16* Actual support may vary by CPU.
* Please check PCIe bifurcation table in support site.PCI Express x12 x PCIe 3.0 x1Storage DevicesSerial ATA (SATA)6 x SATA 6Gb/sM.2Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 modeIntel Q670 Chipset*:
M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.Intel Optane ReadyYesSATA RAID0/1/5/10Onboard AudioAudio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Audio Channels7.1 ChannelsOnboard LANLAN ChipsetIntel I219-LMMax LAN Speed1GbpsRear Panel PortsBack I/O Ports4 x USB 3.2 Gen 2 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMI port
3 x Audio jacks
1 x Intel 1Gb Ethernet
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) portInternal I/O ConnectorsOnboard USB1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 portsOther ConnectorsFan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x DIS ME jumper
1 x LPT header
1 x Mono-out header (with Amp IC)
1 x M.2 slot (Key E)
1 x Speaker header
1 x 10-1 System Panel headerSoftware FeatureWindows 11SupportedPhysical SpecForm FactorMicro ATXLED LightingNone RGBDimensions (W x L)9.6" x 9.6"Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connectorFeaturesFeaturesSpecial Features:
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Boot Defender
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection:
TPM IC onboardSoftware Features:
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE):BIOS:
256 Mb Flash ROMManageability:
WOL by PME, PXEOperating System:
Windows 11 64-bit, Windows 10 - 64 bitPackagingPackage ContentsAccessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
