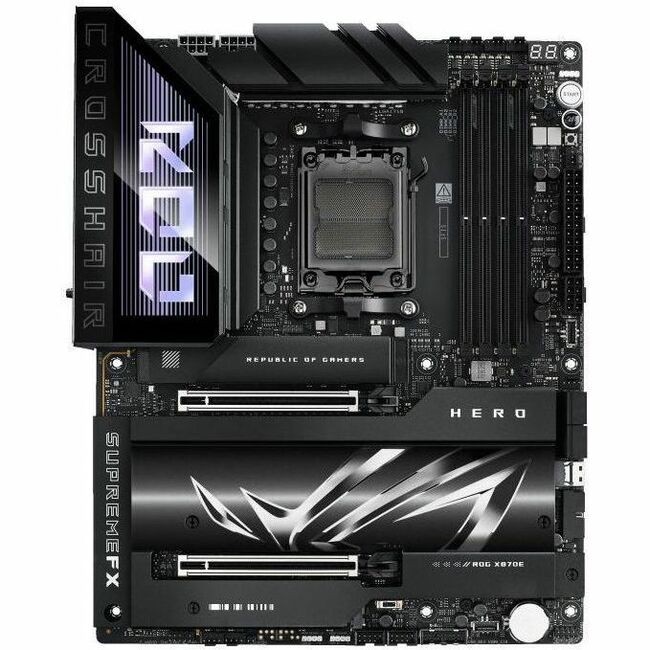

ASUS ROG Crosshair X870E Hero AMD AM5 DDR5 ATX Motherboard ROGCROSSHAIRX870EHERO Brand: ASUS UPC: 0197105710306 Mfr Part #: ROGCROSSHAIRX870EHERO

General Information

ROG Crosshair X870E HERO

The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features our Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.

ASUS AI INTELLIGENCE | AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed ofWiFi 7.

AI OVERCLOCKING

Tuning is now faster and smarter than ever before.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI COOLING II

Balance the thermals and acoustics of any build with a single click.

AI COOLING II

A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

Performance OVERCLOCKING | Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.

Core Flex

In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

Asynchronous Clock

For next-level frequency flexibility, the ROG Crosshair X870E Hero features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.

Asynchronous Clock

Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.

PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.

PBO ENHANCEMENT

By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

Performance MEMORY | DDR5 DOMINATION

Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the8 GT/s mark on the ROG CrosshairX870E Hero.

Technical InformationAI-powered:Yes

Processor & ChipsetChipset Manufacturer:AMDChipset Model:X870ETotal Processor Supported:1Processor Socket:Socket AM5Processor Supported:Ryzen 7Processor Supported:Ryzen 9

MemoryNumber of Memory Slots:4Memory Form Factor:DIMMMemory Form Factor:UDIMMMaximum Memory Supported:192 GBMemory Technology:DDR5 SDRAMMemory Speed Supported:8000 MHzError Checking:ECC

I/O ControllerController Type:Serial ATA/600RAID Supported:YesRAID Levels:0RAID Levels:1RAID Levels:5RAID Levels:10

VideoOnboard Video:CPU Dependent Video

AudioAudio Channels:7.1

Network & CommunicationBluetooth:YesBluetooth Standard:Bluetooth 5.4Gigabit Ethernet:Yes2.5Gigabit Ethernet:YesWireless LAN:YesWireless LAN Standard:IEEE 802.11be

I/O ExpansionsTotal Number of Expansion Slots:6PCI Express Standard:PCI Express 4.0PCI Express Standard:PCI Express 5.0Total Number of PCI Express Slots:6Number of PCI Express x16 Slots:6

Onboard InterfacesNumber of SATA Interfaces:4Number of M.2 Interfaces:5Total Number of Onboard USB Ports:10Number of Onboard USB 2.0 Ports:4

Physical CharacteristicsForm Factor:ATXWidth:12"Depth:9.6"

Crosshair X870E HERO Gaming Desktop Motherboard

1 x ARGB RGB extension cable

4 x SATA 6Gb/s cables

1 x ASUS WiFi Q-Antenna

1 x Q-connector

2 x M.2 Q-Latch package

3 x M.2 Q-Slide package

5 x M.2 rubber package

1 x ROG stickers

1 x ROG thank you card

1 x ROG Bottle Opener

1 x USB drive with utilities and drivers

1 x Quick start guide

Environmental Compliance:Restriction of Hazardous Substances (RoHS)
