Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

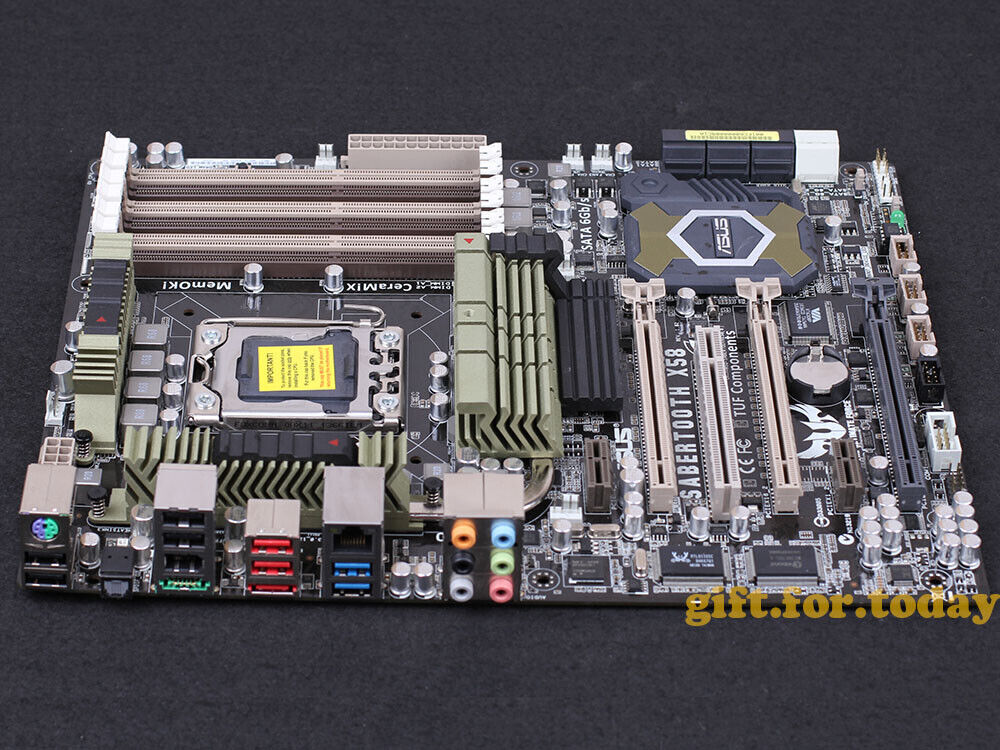

ASUS SABERTOOTH X58 Motherboard Introduction

CPU

Intel® Socket 1366 Core™ i7 Extreme Edition/Core™ i7 Processors
Supports Intel® Turbo Boost Technology

Chipset

Intel® X58/ICH10R

Memory

6 x DIMM, Max. 24GB, DDR3 1866/1800/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
Triple Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website or user manual for the Memory QVL (Qualified Vendors Lists).

System Bus

6.4 GT/s Intel® QuickPath Interconnect

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

2 x PCIe 2.0 x16 (dual x16)
1 x PCIe x16 (x4 mode)
2 x PCIe x1
1 x PCI

Storage

Intel® ICH10R controller :
6 x SATA 3Gb/s port(s), black
Support Raid 0, 1, 5, 10
Marvell® PCIe 9128 controller : *1
2 x SATA 6Gb/s port(s), gray
JMicron® JMB362 controller :
1 x Power eSATA 3Gb/s port(s), green
1 x eSATA 3Gb/s port(s), red ICH7R and Silicon Image 4723 controller

LAN

Realtek® 8110SC, 1 x Gigabit LAN Controller(s), featuring AI NET2

Audio

Realtek® ALC 892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- ASUS Noise Filter
- Optical S/PDIF out port(s) at back panel

IEEE 1394

VIA® 6308P controller
2 x IEEE 1394a port(s)
(1 at mid-board, 1 at back panel)

USB Ports

NEC® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel® ICH10R controller :
12 x USB 2.0 port(s) (6 at back panel, black+red, 6 at mid-board)

Special Features

TUF ENGINE! Power Design :
- 8 -Phase CPU Power
- 2 -Phase Memory Power
- 2 -Phase VTT_CPU Power
- TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)
- E.S.P. : Efficient Switching Power Design
Ultimate COOL! Thermal Solution :
- TUF CeraM!X Heatsink Coating Tech.
ASUS Exclusive Features :
- MemOK!
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x eSATA 3Gb/s
1 x Power eSATA 3Gb/s
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
6 x SATA 3Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s)
3 x Chassis Fan connector(s) (1 x 4 -pin, 2 x 3 -pin)
1 x Power Fan connector(s)
1 x Optional Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)

BIOS

16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a

Manageability

WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note

*1-1: These SATA ports are for data hard drives only. ATAPI devices are not supported.
*1-2: Supports EZ Backup and SuperSpeed functions.

SABERTOOTH X58Forged for Ultimate Reliability

• Intel® LGA1366 socket for Intel® Core™i7 Processor Extreme Edition / Core™i7 Processor
• Intel® X58/ ICH10R
• CeraM!X Heatsink Coating Tech. - Larger area for heat dissipation with the revolutionary ceramics-coating technology
• TUF Components (Alloy Choke, Cap. & MOSFET; certified by military-standard) - Certified for Tough Duty
• E.S.P. [Efficient Switching Power Design] - Optimal power efficiency for key components
• True USB 3.0 & SATA 6Gb/s Support

ShippingExpedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...

Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.

After Sale:

• Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale

• Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.
