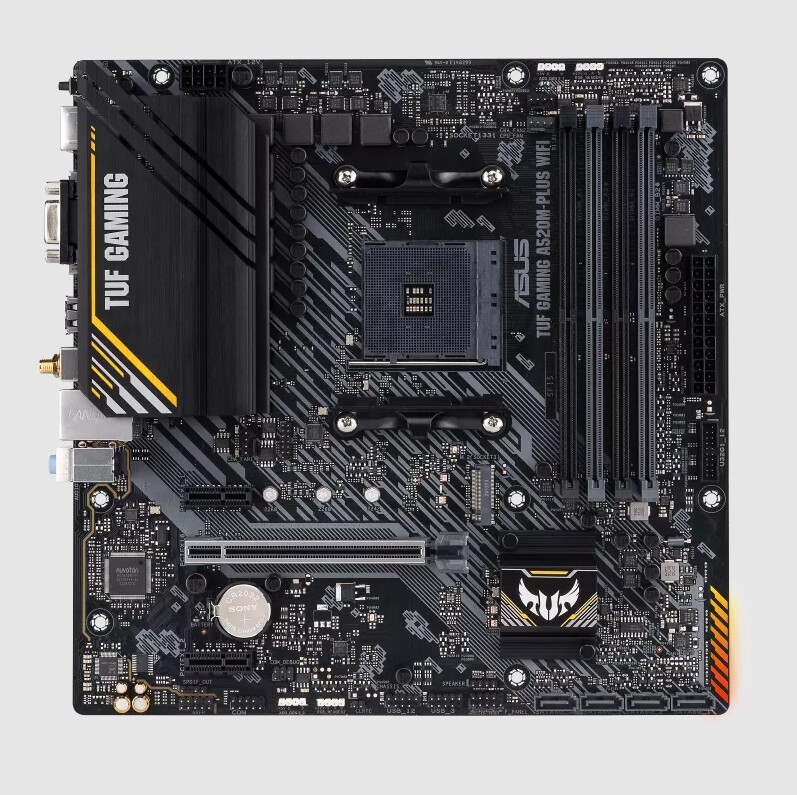

Product Description ASUS TUF GAMING A520M-PLUS WIFI Specifications

Model: TUF GAMING A520M-PLUS WIFI Chipset: AMD A520 CPU Socket: AM4 CPU Support: AMD Ryzen 3000 / 4000G / 5000 / 5000G Series Desktop Processors Form Factor: Micro ATX (24.4cm × 24.4cm)

Power Delivery

• 6+2 phase DIGI+ VRM
• 24-pin EATX + 8-pin ATX 12V power connector
• Large passive VRM heatsink + PCH heatsink
• Military-grade TUF durable components

Memory (DDR4 ONLY)

• 4 × DDR4 DIMM slots, Dual Channel
• Max capacity: 128GB
• Max overclock: up to 4866(OC) MHz
• Unbuffered non-ECC; ECC support depends on CPU
• Supports XMP memory profiles

Expansion Slots

• 1 × PCIe 3.0 x16 SafeSlot Core+
• 2 × PCIe 3.0 x1
• Supports 2-Way AMD CrossFireX

Storage

• 1 × M.2 M-key slot (2242/2260/2280), PCIe3.0 x4 / SATA dual mode
• 4 × SATA III 6Gbps ports
• AMD RAIDXpert2, RAID 0,1,10 support

Rear I/O Panel

• 1 × PS/2 combo port
• 1 × HDMI 2.1
• 1 × DisplayPort 1.2
• 1 × D-Sub (VGA)
• 4 × USB3.2 Gen1 Type-A (5Gbps)
• 2 × USB2.0 Type-A
• 1 × RJ45 Gigabit LAN
• WiFi antenna connectors
• 3 × 3.5mm audio jacks
• BIOS FlashBack button

Network & Audio

• Wired LAN: Realtek Gigabit Ethernet, TUF LANGuard, TurboLAN
• Wireless: WiFi 5 (802.11ac) + Bluetooth 5.1
• Audio: Realtek 7.1-channel HD Audio, Japanese audio capacitors, isolated audio shielding

Special Features

• Aura Sync RGB: 1 RGB header + 2 Addressable Gen2 RGB headers
• Fan Xpert 2+ fan control
• BIOS FlashBack, update BIOS without installed CPU
• TUF Gaming stress-tested protection suite
• A520 chipset does NOT support CPU overclocking / PBO
