WAVLINK Networking – Wi-Fi Routers & Extenders WAVLINKNetworking Solutions
Quick Comparison – Wi-Fi SolutionsTable 1 – Core SpecificationsModelWi-Fi StandardMax SpeedAntennasPortsCoverageMesh SupportWL-WN586X3 (AX3000 Router)Wi‑Fi 62976 Mbps (2402+574)4× 5dBi (foldable)1× WAN + 2× LAN (Gigabit)Up to 1,500 sq.ft✔ Everything MeshWN575A3(AC1200 Extender/Router)Wi‑Fi 5 (802.11ac)1167 Mbps (867+300)4× 5dBi (detachable)1× LAN + 1× WAN/LAN (Gigabit)~1,000+ sq.ft— (standalone)WL-WN583AX3 (AX3000 Repeater/AP)Wi‑Fi 62975 Mbps (2402+573)4× 5dBi (adjustable)1× WAN/LAN (Gigabit)Up to 2,000 sq.ft✔ Everything MeshTable 2 – Key Features & Best Use CasesModelKey FeaturesWorking ModesBest ForWL-WN586X31.3GHz dual‑core, 160MHz, 1024QAM, WPA3, App managementRouter, AP, MeshWhole‑home mesh, gaming, 4K streamingWN575A3800MHz dual‑core, Beamforming, high‑power amps, mode switchRepeater, AP, RouterExtending existing WiFi, wall‑mount spacesWL-WN583AX34 FEM chips, BSS Coloring, wall‑mount, intelligent LEDRepeater, AP, Router, MeshDead‑zone elimination, flexible placement
Note: All models support WPA2/WPA3 security, IPv6, and easy setup via App or Web UI. Speeds are theoretical; actual performance depends on environment and ISP.
Buying Guide – Which One Fits Your Home? 🏠 For Whole‑Home Wi‑Fi 6 Mesh → WL-WN586X3 (AX3000 Router)
Designed as a primary router, it delivers powerful Wi‑Fi 6 speeds, 1.3GHz dual‑core CPU, and Everything Mesh. Ideal for homes up to 1,500 sq.ft., supporting 256+ devices with low latency for gaming and 4K/8K streaming. 🔌 For Extending Existing Coverage → WN575A3(AC1200 Extender/Router)
Versatile 3‑in‑1 device (Repeater/AP/Router) with four high‑gain antennas and Beamforming. Perfect for apartments, dorm rooms, or filling dead zones in larger homes. Works with any standard router. 📶 For Ultimate Flexibility & Dead‑Zone Elimination → WL-WN583AX3 (AX3000 Repeater/AP)
A compact wall‑mounted Wi‑Fi 6 device that can act as a repeater, access point, or mesh node. With 4 FEM chips and 160MHz bandwidth, it delivers exceptional coverage up to 2,000 sq.ft. and integrates seamlessly with WAVLINK mesh systems. ✅ All Models Share:
- Easy setup via WavRouter App or web interface
- WPA3 security for advanced protection
- Gigabit Ethernet ports for wired connectivity
- Compatibility with major ISPs and IPv6

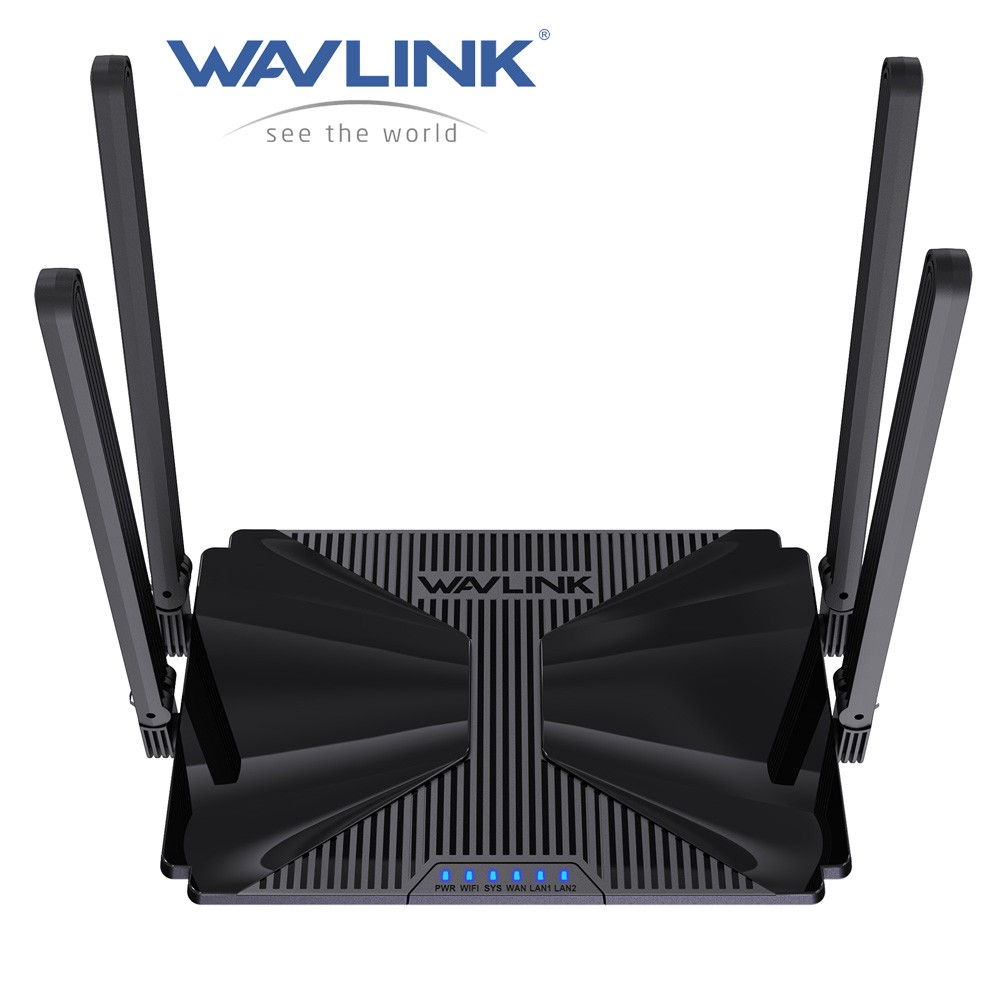

AX3000 Wi-Fi 6 Mesh Router（mesh only can build with wavlink router)Wavlink Wi-Fi 6 AX3000 Dual Band Mesh Router, 802.11ax Wireless Gigabit Router for Gaming and VR, Everything Mesh & AP Mode, MU-MIMO, Beamforming, OFDMA, WPA3, Support 160MHz & IPv6(Buy two to achieve mesh wifi and expand the wifi in the whole house)
⭐Cutting-Edge Wi-Fi 6 Speeds: Wi-Fi 6(802.11ax) technology achieves faster speeds, greater capacity and reduced network congestion compared to the previous generation. This router upgrades to 3000Mbps high speed internet (574Mbps for 2.4GHz + 2402Mbps for 5GHz), reducing buffering and ideal for 4K streaming or gaming.
⭐Everything Mesh Available: A simple way to build a WiFi network with a single WiFi name for seamless whole-home coverage by adding a mesh extender, realizing a high-speed whole-home Wi-Fi experience for larger units. You don't have to manually switch networks when you're moving around your home. Get rid of drops and lags.
⭐Expanded Coverage & More Devices: 4 high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home with coverage up to 1,500 sq.ft. Support OFDMA+MU-MIMO, this router improves the network utilization rate and solves the problem of simultaneous communication with 256+ wireless terminals.
⭐Dedicated to Reliable Network: Designed with a 1.3GHz dual core processor, IPv6, Beamforming+, 160MHz bandwidth, 1024QAM, WPA3 security protocol, TWT(Target Wakeup Time), BSS Coloring, LDPC Error Correction and more. Bring you ultra-smooth entertainment experience.
⭐Easy Setup and Use: Set up and manage your WAVLINK router in minutes with the intuitive WavRouter App with guided setup instructions. Or connect to the WiFi created by the router, enter 192.168.10.1 in the browser to login to the UI page and complete all steps within several minutes.
- Supports 160MHz bandwidth and 1024-QAM for much faster wireless connections.
- Supports MU-MIMO & OFDMA technique to simultaneously communicate with multiple devices in a very effective way.
- Supports TWT (Target Wakeup Time) technology to save power consumption.
- Provides a total networking speed of about 2976Mbps with 2402Mbps@5GHz and [email protected].
- Features four 5dBi patented antennas that are powerful, omni-directional, foldable and fitting in smaller box.
- Provides 1 x Gigabit WAN + 2 x Gigabit LAN (1000Mbpjs) for high-speed wired Internet.
- Protects network security with up to WPA2/WPA3-PSK MIX.
- Support IPV4 / IPV6.
- Sets up in minutes with the APP or Web UI, easily manage WiFi settings and monitor data usage.
- Compatible with our AX3000 and AX6000 Mesh WiFi systems for seamless roaming and whole-home coverage.
Dual-band Speeds
Up to 2976Mbps WiFi for faster browsing, streaming, gaming and downloading at the same time.
More Connection, Less Latency
OFDMA+MU-MIMO reduces network congestion by allowing up to 256 devices to share your network simultaneously.
WAVLINK Mesh Network
Everything mesh technology realizes a high-speed whole-home Wi-Fi experience with range up to 1,500 sq.ft.
Get a New Router
Connect the WAN port of the old router to the LAN port of MIGHTY EX1 with a network cable, click "Get account from the old router" on the network setting page to scan and synchronize the account and password.
1.3GHz Dual-Core Processor
High-performance wireless networking processors deliver highly flexible architecture for the ultimate performance in network-related processing, whole-house wireless coverage, AR/VR gaming.
Simple Management
An ideal choice for fast and reliable internet connectivity without the hassle of complicated setup and configuration. Allows users to quickly and easily get their router running with APP or web management.
Foldable Antennas with Beamforming
4*5dBi omnidirectional antennas boost Wi-Fi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them.
Optimal Thermal Performance
Super heat dissipation, a large number of hidden grilles with large-area heat dissipation aluminum case, ensures smooth operation and prolongs service life.
Full Gigabit Ports
Gigabit router with two Gigabit LAN ports, ideal for any internet plan and allow you to directly connect your wired devices, create fast, reliable wired connections for your PCs, smart TVs etc.
Advanced Wi-Fi 3 Encryption
The latest WPA3 security protocol greatly protects the network from hackers and malware, letting you relax with a peace of mind and just enjoy the high-speed WiFi.
Specification
Model：WL-WN586X3 (MIGHTY EX1)
Ports: 1 x WAN(10/100/1000Mbps), 2 x LAN(10/100/1000Mbps), 1 x DC in, 1 x Reset/Pair Button
Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(2402Mbps)
Antennas: 4 x 5dBi Omni Directional Antennas
Status LED: Blue
Encryption: WPA1/WPA2-PSK MIX, WPA2-PSK, WPA2/WPA3-PSK MIX
Foldable Product Size: 17.5*12.5*3.5cm/6.9*4.9*1.4in
Ethernet Cable Length: 100cm/39.4in
Weight: 253g/8.9oz
Package Includes
1 x WiFi 6 AX3000 Mesh Router
1 x DC 12V/1A Power Adapter
1 x Ethernet Cable
1 x Manual
AC1200 High Power Extender/RouterWavlink AC1200 High Power Dual Band Wi-Fi Gigabit Range Extender/Repeater/Wireless Router/Access Point with 4 External 5dBi Antennas[Boost Your Coverage]: Beamforming and high powered 4 high gained antennas work together to cover larger homes by directing stronger wireless signals to each device’s specific location, helping eliminate dead zones and buffering.
[3 Times Faster Than Wireless-N]: Runs on dual bands at a blazing combined speed of up to 1167Mbps, including 300Mbps on its 2.4GHz channel and 867Mbps on its 5GHz channel, ideal for online gaming, streaming experience.
[Easy Setup & Smart Signal Indicator]: With WPS support and simple configuration, users can set up and secure a personal Wi-Fi network in minutes. Enable wireless security at a push of the WPS button. Smart signal Indicator helps to find the best location for optimal WiFi coverage.
[Gigabit Ethernet Wired Connection]: In addition to wireless connectivity, it allows you to establish a secure wired connection with speeds up to 1,000 Mbps to a desktop, laptop, or any other device featuring an Ethernet port.
[Other Features]: Access point mode easily turn your wired internet connection into dual band Wi-Fi network. Works with any standard router or gateway.
Wavlink - Bringing Technology to Life
The Wavlink 579X3 expands your existing wireless network and eliminates dead spots with high performance antennas and 802.11ac technology - the next generation Wi-Fi. Dual Band technology lets you simultaneously enjoy lag-free HD video streaming, online gaming, emailing and web browsing with its speed up to N300 + AC867 without interruption. It’s well suited for large homes with multiple devices and heavy online media usage.
Blazing Fast Wi-Fi
Built-in 802.11ac Wi-Fi standard , WN579X3 offers total data transfer speeds achieving up to 1167 Mbps. Everyone can stream HD video, transfer large digital files and move data along at blazing fast speed.
Expand Any Wi-Fi to at Least 1000sq.ft.
With four high gain antennas and high-powered amplifier, the WN579X3 establishes a stable wireless connection, boosts the network's coverage to hard-to-reach areas and provides high-performance, wall-to-wall Wi-Fi connectivity.
Built-in High Power Amplifiers
Independent built-in high power amplifiers greatly improve the ability of signal receiving and dispatching. With up to 5x transmission power, you can enjoy a stronger signal in a boosted coverage, and keep your mobile devices connecting to the router all the time.
High Power, More Stable Wi-Fi
High power amplifiers improve output power to ensure the wireless signal is strong enough to penetrate any walls and other obstacles. So you can Enjoy smooth Wi-Fi at every room.
High-Gain Adjustable Antennas
We’ve thought every details for your best Wi-Fi experience. Four high gain antennas extremely boost the reception sensitivity and sending ability of the range extender to create fast and reliable connection over great distance.
More Reliable Connections with Beamforming
Beamforming Technology improves your coverage by directing bandwidth to your devices as you move around your home. This makes all of your connections more efficient and stable.
Two Gigabit Wired Connections for Ultrafast Data Transfer
This Gigabit Ethernet ports provide data transfer speeds 10x faster than a standard Ethernet port. It allows you to connect Gaming console, Blu-ray player, Smart TV, streaming player and more.
Hassle-free Installation
It’s virtually compatible with any Wi-Fi router. Just press the WPS button and the installation is done. It’s that easy.
Maximum Heat Dissipation
Precision-designed for maximum heat dissipation. With ventilation holes from every side, it enhances stability during working process and extends lifetime.
One Switch for Different Applications
In addition to its function as a repeater, WN579 X3 can also work as a wireless access point (AP) or as a router. Simply use the switch to choose what you want.
Note:
-The passwords of your repeater are as same as your router’s.
-More than 70% signal is recommended for the most reliable connection.
-Poor signal connection may cause slow speeds or dropped connection.
-If do not see desired wireless network, you can move the range extender closer to the router and scan again as it may be out of range.
-The Extender mode of this device can be set up by wireless device such as smart phone or laptop.
FEATURES
Ports: 1 x 1Gbps LAN, 1 x 1Gbps WAN/LAN
Button: 1 x Reset,1 x WPS,1 x Mode Switch,1 x Power ON/OFF
Power Plug: US
Power Supply: Internal DC5V / 2A
Dimensions: 113 x 63 x 32 mm
WIRELESS Wireless Standards: IEEE802.11ac,IEEE 802.11a, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Frequency Band: 5GHz and 2.4GHz
Transmit Power: Max 20dBm
Wireless Security: Wireless MAC address Screening; Wireless security function switch; WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK mix mode
Antennas: 2 * 5GHz 5dBi Detachable Omni Directional antenna; 2 * 2.4GHz 5dBi Detachable Omni Directional antenna
Beamforming: Boosts speed, reliability and range of WiFi Connections for 2.4 and 5GHz
MIM: Increase throughout to connect more devices at the same time
Processor: 800Mbps dual-core processor
Package
1 x Quick Guide
1 x WiFi AP/Router
1 x RJ45 Ethernet Cable
AX3000 Wi-Fi 6 Repeater/APWAVLINK AX3000 Dual Band Wi-Fi 6 Repeater/AP/Router, 2024 New WiFi Amplifier with 160MHz Bandwidth, 4x5dBi Antennas, Supports Beamforming, BSS Coloring, OFDMA, Coverage up to 2000sq.ft., 256 Devices
Features:
【⭐Enjoy Full-Speed AX3000 WiFi6】Come and try the 2024 new-released WN583AX3, the latest lightning-fast WiFi 6 router that outperforms regular WiFi 6 models limited to 1800Mbps. Enjoy blazing speeds with dual-band support: 2.4GHz (573Mbps) and 5GHz (2402Mbps) utilizing a 160MHz bandwidth. Whether streaming 8K videos or playing action-packed games, experience silk-smooth connectivity.
【⭐Multi-Working Modes】Supports Repeater/AP/Router/Mesh mode, the WN583AX3 flexibly adapts to diverse network needs in different environments. The Repeater mode amplifies your Wi-Fi coverage for enhanced connectivity easily. By efficiently transforming wired network into wireless accessibility, the AP mode is recommended for users in need of an expanded network footprint.
【⭐Easy Set Up & WPS Function】Comes with a simple but powerful web interface, the WiFi6 extender offers convenient setup and management from your phone or computer. Easily connect to additional devices or upstream routers with just a press of the WPS button, enhancing your network experience with ease. Press for 2s to connect the downstream devices and press for 8s to connect the upstream router.
【⭐Everything Mesh & Powerful Antennas】Use WAVLINK AX3000 WiFi6 router to build your customized mesh WiFi system, upgrading your big house into a paradise of uninterrupted connectivity. Also supports networking with other WAVLINK everything mesh routers. And the 4x5dBi high-gain antennas enhance the signal strength, further ensuring the signal coverage and the network stability.
【⭐User-Friendly Design】The wall-mounted design saves more space and reduces the hassle of storing messy charging cables. With strategic heat dissipation holes integrated into its aesthetic appeal, this WiFi 6 router maximizes performance for daily use. Additionally, a smart LED light around the WPS button showcases various router states through color changes, streamlining user convenience.
BSS Coloring
With BSS Coloring technology, the WiFi extender effectively minimizes interference from neighboring networks, ensuring a stable connection even in crowded network environments.
WiFi 6 OFDMA
OFDMA technology helps improve WiFi efficiency by allowing multiple devices to communicate with the router simultaneously, enhancing overall network performance for smoother connectivity.
4x5dBi Adjustable Antennas
The 4x5dBi high-gain antennas are designed to rotate both horizontally and vertically, which helps to adapt to different placement positions for the best signal enhancement.
Gigabit WAN/LAN Port
The 1000Mbps Ethernet port is ideal for connecting desktop computers, gaming consoles, smart TVs, streaming devices, and upper routers or modems, ensuring stable wired connections with enhanced speeds and network stability.
Intelligent FEM Chips
With the incorporation of 4 FEM chips, this WiFi 6 extender exhibits remarkable power and efficiency enhancements, allowing it to manage demanding transmission tasks like online gaming streams and 4K live feeds while maintaining stability.
Easily Accessible Web Interface
Configure your AX3000 WiFi6 repeater via web interfaces on the phone or computer, which offers user-friendly management options and convenient monitoring capabilities, enhancing control and customization of network settings for optimized performance.
Advanced Security with WPA3
Benefiting from the latest WPA3 encryption, the WN583AX3 ensures strong security for important data or private information transmitted over WiFi. Enjoy a super-fast WiFi connection without worrying about information leakage.
LED Indicator Description
Solid Purple: The device is being activated.
Fast Blinking Red: The device is not connected to the higher-level router.
Slow Blinking Red: The device doesn't have access to the Internet.
Fast Blinking Blue: Pairing with the WPS of a higher-level router.
Slow Blinking Blue: The phone is pairing with WPS./Press the pair button for Mesh pairing.
Solid Blue: The Internet is connected and stable./AP Mode.
WPS/Mesh Pair button:
AP Mode: Press and hold WPS for 2 seconds to connect to downstream devices.
Repeater Mode: Press and hold the WPS button for 2 seconds to connect to the downstream devices and for 8 seconds to connect to the upstream router.
Mesh Extender/Mesh Router Mode: Press and hold the Mesh Pair button for 2 seconds to pair.
Reset Button:
Press and hold the button for 6 seconds to reset to product's factory settings.
Specification
- Model: WL-WN583AX3
- Ports: 1 x WAN/LAN(10/100/1000Mbps)
- Buttons: 1 x Power On/Off; 1 x Reset; 1 x WPS
- Status LED: 1 x WPS(Purple/Red/Blue); 1 x WAN/LAN(Blue)
- Wireless Standard: IEEE 802.11a/b/g/n/ac/ax
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Antenna: 4 x 5dBi Omni Directional Antennas(Length: 15.4cm/6.1in)
- Wireless Security: WPA3/WPA2-PSK MIX, WPA2-PSK, WPA2/WPA1-PSK MIX
- Unit Size(without antennas): 16.0x7.5x4.2cm/6.3x3.0x1.7in ( L x W x H )
- Ethernet Cable Length: 100cm/39.4in
- Weight: 298g/10.5oz
- Everything Mesh supported Models: WN533AX6/LUX DX15, WN531AX3/LUX DX7, WN586X3/MIGHTY EXI, WN587X3/MIGHTY EX2, WN583AX3/AERIAL D6X, WN573HX3/AERIAL HD9(Does not support networking with other brands of mesh devices.)
In the Box
- 1 x Wi-Fi 6 Repeater/AP/Router
- 1 x RJ-45 Ethernet Cable
- 1 x Quick Start Guide
