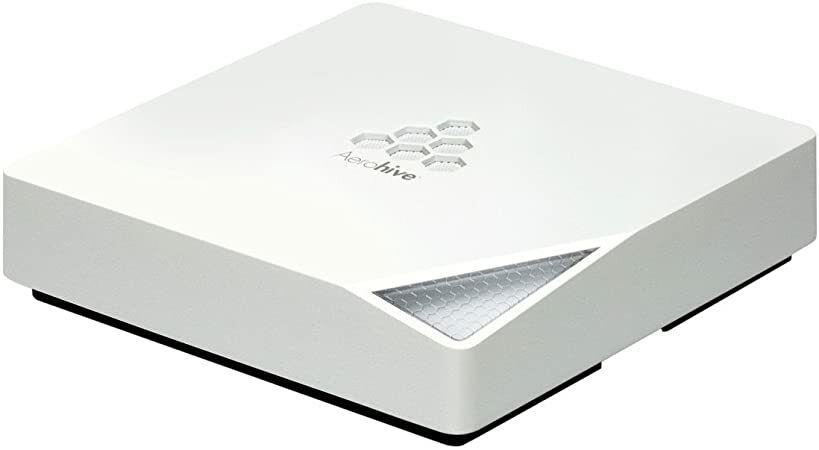

Aerohive HiveAP 330 Wireless Access Point 802.11n 450 Mbps 3x3 MIMO X2
Dual Band and Dual Radio
Can be managed with the free version of Aerohive APs1 Drop Ceiling Mount
Includes 2x Atheros AR9390 (mini-PCIe) Radios
The AP330 and AP350 802.11n wireless access points are designed for greater throughput and range, and can also be configured as routers.
The AP330 and AP350 provide dual concurrent 802.11b/g/n and 802.11a/n radios for 3x3:3 MIMO antenna configurations. When you enable 802.11n high-throughput options such as wide-channel mode (40-MHz channels), A-MPDU and A-MSDU packet aggregation, short guard interval, and MCS23 data rates, these models can provide a PHY data rate of up to 450 Mbps per radio. The AP330 has internal antennas, and the AP350 uses detachable external antennas. Both models have dual 10/100/1000 Ethernet ports for link aggregation or link redundancy. They can accept power from an 802.3af or 802.3at standard PoE (power over Ethernet) power injector or from an AC/DC power adapter connected to a 100-240 VAC input power source.
AP330: Three internal omnidirectional 802.11b/g/n 2.4 GHz antennas, and three internal omnidirectional 802.11a/n 5 GHz Type:WiFi 2017Supported Since Since Rel:18.06.0Supported Current Rel:21.02.1Gluon P1020CPU Cores:2CPU MHz:533Flash MB:64RAM MB:256Ethernet 100M ports:-Ethernet Gbit ports:2VLAN:NoModem:-WLAN Hardware:Atheros AR9390 (mini-PCIe)WLAN 2.4GHz:b/g/nWLAN 5.0GHz:a/nWLAN driver:ath9kDetachable Antennas:-Bluetooth:-miniPCI ports:2x miniPCIeUSB ports:1x 2.0SATA ports:-Video ports:-Audio ports:-Phone ports:-Serial:YesSerial connection parameters:9600 / 8N1JTAG:¿LED count:¿Button count:1GPIOs:-Power Supply:12 VDC, 2 A, PoE 802.3afOpenVPN performance:¿Wireguard performance:¿Forum search:HiveAP-330Git search:HiveAP-330WikiDevi ID:Aerohive_HiveAP_330Firmware OpenWrt Install OpenWrt Upgrade OpenWrt snapshot Install OpenWrt snapshot Upgrade method(s):U-Boot TFTP + serial recovery, see git-commitRecovery method(s):U-Boot TFTP + serial recoveryPicture
