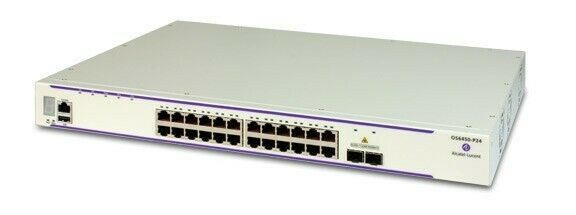

Alcatel-Lucent OmniSwitch OS6450-P24🔌 Alcatel-Lucent OmniSwitch OS6450-P24 Switch - 24 Gigabit Ethernet PoE 802.3af/at Ports - 370W Budget - 2 SFP+ 10G Ports - Layer 2/3 Manageable - Ready to Use 🌐

💼 24 Port Enterprise PoE Switch for IP Telephony, WiFi and Converged Infrastructure

✅ Ready to Use - Instant Configuration

This switch Alcatel-Lucent OmniSwitch OS6450-P24 is delivered in good condition used ready to use, tested and functional for immediate deployment in your network infrastructure. No complex configuration required for quick start - simply plug and connect your PoE equipment IP phones, WiFi hotspots and surveillance cameras. Turnkey enterprise voice-data-video converged infrastructure solution.

✨ Alcatel-Lucent OmniSwitch OS6450-P24 Switch high performance professional solution combining 24 Gigabit Ethernet 10/100/1000 ports with Power over Ethernet IEEE 802.3af/at budget 370W, 2 SFP+ 10 Gigabit fiber optic uplink ports and optional stacking module expansion slot. Managed Layer 2/3 architecture offering complete enterprise features: 802.1Q VLANs network segmentation, multi-service QoS, VoIP traffic prioritization, 802.1X security RADIUS NAC authentication, granular ACLs advanced filtering and static IPv4/IPv6 routing for converged campus networks, SMEs and demanding departmental data centers, proven Alcatel-Lucent Enterprise quality.

📋 Complete Technical Specifications🔧 Model Alcatel-Lucent OmniSwitch OS6450-P24
OmniSwitch 6450 Series
Enterprise Manageable 🔌 Gigabit Ethernet ports 24 RJ-45 ports
10/100/1000Base-T
MDI/MDI-X auto-negotiation
Full Duplex ⚡ Power over EthernetPoE Budget: 370W Total
IEEE 802.3af (15.4W/port)
IEEE 802.3at PoE+ (30W/port)
Dynamic PoE Allocation 🚀 Uplink SFP+ ports 2 Fixed SFP+ Ports
1G by Default
10G with SW-PERF License
Hot-Swappable Modules 📊 Slot Expansion 1 Modular Location
Optional Stacking Module
10G Uplink Module
Scalability Infrastructure 🧠 Switching capability Bandwidth: 48 Gbps
Non-Blocking Forwarding
Throughput: 35.7 Mpps
Wire-Speed ​​Performance 💾 Memory RAM: 512 MB SDRAM
Flash: 256 MB
MAC Table: 16K Addresses
Dual Firmware Images 📊Layer 2/3 Features Switching Layer 2 Advanced
Static IPv4/IPv6 Routing
128 Static Routes
RIP v1/v2 Support 🔗Stacking Up to 8 Stackable Units
Maximum 384 Gigabit Ports
Ring/Chain/Star Topology
(Optional Module Required) 🔐 Advanced Security 802.1X RADIUS/TACACS+
Port Security MAC
ACLs Layer 2-4
DHCP Snooping, DAI, IPSG 🌐 VLANs Support 4096 VLAN IDs
802.1Q Tagging
GVRP, Private VLANs
Voice VLAN Automation 🎯 QoS Features 8 Hardware Tails
802.1p CoS, DSCP
Rate Limiting, Shaping
Strict Priority, WRR, WRED 🔄 Redundancy IEEE 802.1w RSTP
IEEE 802.1s MSTP
LACP 802.3ad Aggregation
Dual Power Supplies Option 🖥️ Management HTTP/HTTPS web interface
SSH/Telnet CLI
SNMP v1/v2c/v3
ALE OmniVista Management 📏 Format 1U rack (43.8 mm height)
19 inches width
440 x 400 x 43.8 mm (L x D x H) ⚖️ Weight About 5.5kg ⚡ Food 100-240 VAC Auto-Ranging
50-60Hz
Consumption: ~480W Max
(including 370W PoE budget) 🌡️ Environment Operation: 0-45°C
Storage: -40 to 70°C
Humidity: 5-95% NC 🏭 Manufacturer Alcatel-Lucent Enterprise
Carrier-Grade Quality
Nokia Enterprise 📦 Status Used - Ready to Use
Tested and Working 🎯 Highlights of the OmniSwitch OS6450-P24

• Power over Ethernet 370W High Capacity - 370W IEEE 802.3af/at PoE budget allowing powering up to 24 standard 15W IP phones or 12 high-power 30W WiFi hotspots simultaneously without local electrical outlets, simplifying Cisco/Avaya/Mitel VoIP telephony infrastructure deployments and Aruba/Ruckus enterprise wireless networks
• Intelligent Dynamic PoE Allocation - Automatic management of power distribution according to real needs of connected equipment with configurable priorities per port, maximizing the number of devices powered simultaneously and avoiding energy waste of low consumption equipment
• Powerful Layer 2/3 Architecture - Wire-speed 48 Gbps non-blocking switching with static IPv4/IPv6 routing onboard 128 hardware-accelerated routes, eliminating the need for a dedicated external router for inter-VLAN communications across enterprise departments
• 10 Gigabit Ready SFP+ Ports - 2 SFP+ uplinks scalable to 10GbE with optional license for high-capacity fiber optic backbone connections, server aggregation, data center links or long-distance campus interconnections without bandwidth limitation
• Scalable Stacking 384 Ports - Stacking capacity of up to 8 switches managed as a single logical unit via optional OS6450-XNI modules, offering scalability from 24 ports to 384 Gigabit ports unified infrastructure simplifying complex multi-switch administration
• Optimized VoIP QoS - 8 hardware priority queues with automatic 802.1p/DSCP voice traffic classification, LLDP-MED Cisco Discovery Protocol IP telephone marking, bandwidth guarantees and minimum latency guaranteeing audio quality for business-critical telephone conversations
• Multi-Layer Enterprise Security - 802.1X RADIUS authentication controls NAC network access per user/machine, port security limitation MAC addresses, Layer 2-4 granular ACLs filtering malicious traffic, DHCP snooping protecting rogue servers and Dynamic ARP Inspection preventing poisoning attacks
• Carrier-Grade Reliability Alcatel-Lucent - Proven telecom manufacturer quality with millions of historic France Telecom/Orange Business operator deployments, optional power supply redundancy architecture, dual firmware automatic rollback images and high MTBF guaranteeing maximum uptime production infrastructures 24/7

🔍 Professional Applications and Uses

The Alcatel-Lucent OmniSwitch OS6450-P24 excels in multiple enterprise deployment scenarios: access switch cabinets office patching powering 24 Alcatel-Lucent Enterprise OXO/OXE IP phones with OmniAccess WiFi terminals unified converged infrastructure, university campuses student residences classrooms connecting workstations with 802.1X RADIUS authentication LDAP directory granular access control, medical establishments hospitals clinics powering IP phones DECT stations nurses with IP surveillance cameras patient rooms HIPAA compliance secure video recordings, hotels hospitality establishments connected rooms with VoIP telephones reception and WiFi terminals hospitality customer isolation Private VLANs security, retail stores chain stores with PoE-powered checkout point-of-sale terminals, barcode readers and centralized IP DVR/NVR video surveillance systems, industrial automation infrastructures connecting PLC programmable controllers, SCADA supervisors and high-power 30W PoE exterior perimeter surveillance cameras, public administrations town halls communities territorial with single standard IP telephony multi-site VPN WAN routing SIP trunking operators, or SME tertiary services 50-200 users requiring robust scalable network infrastructure without prohibitive investments Cisco Catalyst enterprise ranges high licensing costs. Budget PoE 370W particularly suitable for densely equipped environments generalized IP telephones user stations plus strategic WiFi terminals common areas, eliminating the need for multiple external midspan PoE injectors complicating infrastructure cabling.

📸 Important: The photos are given for illustration purposes. Only the exact content mentioned in this announcement is authentic for the product reference and the elements included. If you have any doubts about the condition or accessories, do not hesitate to contact us before your purchase.

🔋 Power over Ethernet - Technical Details370W PoE Budget – Capacity Calculation

The 370W Power over Ethernet budget allows flexible configurations depending on equipment mix:

• 24 standard IP phones: 24 ports × 7-10W = 240W (remaining 130W margin or additional equipment)
• 12 802.11ac WiFi hotspots: 12 ports × 25-30W PoE+ = 360W (almost full budget)
• Telephony + WiFi mix: 18 10W telephones + 6 25W terminals = 330W (typical office configuration)
• PTZ IP cameras: 16 cameras 20W = 320W (high resolution perimeter surveillance)

Intelligent PoE management prioritizes critical ports and automatically deactivates excess ports if budget exceeded, avoiding power overloads. Configuration of PoE priorities by CLI/web interface according to business equipment criticality.

✅ Condition and Guarantees

• Ready for Immediate Use - Used switch configured in operational state allowing rapid deployment without complex prior interventions, simply network connection and PoE equipment for commissioning IP telephony or WiFi infrastructure
• Tested and Working 100% - Exhaustive verifications including POST bootup firmware Alcatel-Lucent OS, validation of 24 Gigabit ports link-up auto negotiation, PoE delivery tests 15.4W ports random selection confirming 370W budget available, SFP+ uplinks validation and normal LED status verification
• Stabilized Configuration - Mature stable firmware pre-installed production proven version, factory reset performed allowing configuration customization according to specific network environment without previous conflicts
• 30 Day Guarantee - Protection of hardware hardware faults preventing normal operation (multiple inoperative ports, faulty PoE power supply, system bootup failure) with return exchange according to legal conditions
• Alcatel-Lucent Enterprise Quality - Historic French telecoms manufacturer, leader in operator network infrastructure, France Telecom with millions of equipment deployed worldwide guaranteeing proven reliability and robustness in demanding carrier-grade environments
• All consumables are original brand and authentic - We do not sell any compatible toner or cartridge
• Secure Shipping - Professional packaging reinforced protection anti-shock foam with carrier tracking number full traceability
• Professional Invoice - Invoice in paper format with 0% VAT attached in each package for business accounting

⚠️ Exclusions of Liability

Software and Technical Support:

• No utility CD-ROMs, paper documentation user manuals or optional software licenses (OS6450-SW-PERF 10G uplinks, stacking licenses) provided, technical documentation downloadable from Alcatel-Lucent Enterprise website subject to availability
• We do not provide technical support for advanced configuration stacking inter-switches XNI modules, complex multi-tier VoIP QoS programming, RADIUS server integrations 802.1X Active Directory authentication, troubleshooting spanning-tree redundant topologies or network administrator training
• SFP/SFP+ optical fiber transceiver modules not included unless otherwise stated, available separately on the original Alcatel-Lucent market or third-party MSA standard compatible depending on multimode/single mode connection distances
• Optional OS6450-XNI or 10G uplink expansion stacking modules not included, available separately according to needs scalability multi-switch infrastructure chaining
• Cat5e/Cat6 Ethernet network patch cords, RS-232/USB console cables, optional redundant power supplies, 19-inch rack mount kits, or accessories not explicitly listed are not included
• For complex multi-site campus network infrastructure deployments, migrations to current Alcatel-Lucent Enterprise platforms OmniSwitch 6860/6900 with OmniVista 2500 cloud management, OXO/Rainbow UCaaS telephony system integrations or security compliance audits, we recommend ALE certified integrator partners or specialist enterprise network consultants

❓ Frequently Asked Questions (FAQ)🔹 What is Alcatel-Lucent Enterprise and how reliable is this brand? Alcatel-Lucent Enterprise (ALE) is a historic company division of French telecom manufacturer Alcatel-Lucent, specializing in business communications network infrastructures for decades. After acquisition of Alcatel-Lucent by Nokia in 2016, ALE business division resold to private investors in 2017, becoming an independent entity preserving technological heritage, carrier-grade telecom quality. ALE today equips 830,000+ customers in 100 countries including governments, universities, hospitals, banks and Fortune 500 companies with OmniSwitch switches, OXO/Rainbow IP telephony and OmniAccess WiFi network solutions. Exceptional reliability inherited from historic France Telecom/Orange Business telecom operator expertise requiring uptime 99.999% five-nine SLA, robust hardware architecture industrial quality components, stable mature firmware tested exhaustively in critical production environments, and ALE France technical support available via national certified partners. Compared to Cisco domination of the American market, ALE offers a competitive European alternative equivalent performance licensing costs generally lower 30-50% versus Catalyst similar ranges, particularly appreciated by French administrations public procurement authorities favoring European manufacturers digital sovereignty. 🔹 Can the switch power high-power WiFi 6 (802.11ax) terminals? Yes, the 370W PoE budget with IEEE 802.3at PoE+ support 30W per port allows powering latest generation WiFi 6 (802.11ax) terminals requiring typical powers 20-30W depending on models and active radio configurations. Standard enterprise WiFi hotspots Aruba AP-515/535, Cisco Catalyst 9120AX, Ruckus R650/R750, or Alcatel-Lucent OmniAccess Stellar AP1201/1251 work perfectly with PoE+ 802.3at. For very high power WiFi terminals exceeding 30W (reinforced outdoor models, amplified directional antennas, or simultaneous tri-band radios), check manufacturer specifications: some require PoE++ 802.3bt 60-90W not natively supported OS6450-P24 standard, then requiring specialized external PoE++ midspan injectors or recent dedicated PoE++ switches. Recommended configuration: reserve 12 PoE+ 30W ports for high-density WiFi terminals = 360W almost total budget, allowing to cover 1200m² open-space office with density 1 terminal per 100m² optimal performance 802.11ax WiFi 6. Real-time PoE consumption monitoring via CLI web interface "show power-over-ethernet" command validating budget use avoiding saturations progressive deployments future terminal additions. 🔹 How to configure the switch for a VoIP infrastructure with IP phones? VoIP IP telephony configuration on OS6450-P24 requires essential steps: creation of separate dedicated voice VLAN data VLAN (example 10 voice VLAN, 20 data VLAN) isolating telephone traffic guaranteeing QoS security, automatic Voice VLAN activation via LLDP-MED allowing IP phones to self-configure voice VLAN discovery without manual administrator interventions, priority QoS configuration voice VLAN with 802.1p high CoS guaranteeing minimum latency bandwidth critical audio conversations, activation of PoE ports connecting phones with high priorities ensuring power supply maintained even saturation budget 370W, and optionally DHCP Option 66/150 distributing server addresses TFTP provisioning phones automatic firmware configurations. Intuitive Alcatel-Lucent web interface VLANs/QoS/PoE sections simplifies configurations versus complex Cisco IOS CLI. For Alcatel-Lucent OXO/OXE PBX IP telephony system integrations, OmniSwitch switches offer single-manufacturer optimized native interoperability with simplified auto-provisioning. Third-party phones Cisco, Yealink, Polycom, Snom also operate standard SIP/MGCP with appropriate manual VLANs/QoS configurations. Complete documentation VoIP deployment guides available on ALE website with examples of typical multi-vendor configurations. 🔹 Which SFP+ modules are compatible with 10G uplink ports? The 2 SFP+ ports of the OS6450-P24 accept standard MSA industry compatible transceiver modules operating natively 1 Gigabit (classic SFP) or 10 Gigabit with optional OS6450-SW-PERF license activating 10G mode. Compatible modules: SFP 1000Base-SX/LX multimode/single mode standards for economical Gigabit uplinks reusing existing modules, SFP+ 10GBase-SR multimode 850nm OM3/OM4 fiber distances 300m ideal for intra-datacenter interconnections server rooms nearby floors, SFP+ 10GBase-LR single mode 1310nm OS1/OS2 distances 10km inter-building campus backbone links MAN, or SFP+ 10GBase-ER extended-reach 1550nm 40km long-distance WAN applications remote site interconnections. Favor original Alcatel-Lucent modules guaranteeing DDM optical power firmware monitoring compatibility without warnings, but third-party compatible modules FS.com/10Gtek/Fiberstore generally functional, savings 60-70% versus OEM. For constrained budgets, maintaining standard 1G SFP uplinks remains more than sufficient aggregations switches access 24 ports load typical office traffic 2-5 Gbps aggregate peak peak hours. 🔹 Is the switch compatible with existing Cisco network infrastructures? Yes, the Alcatel-Lucent OS6450-P24 integrates perfectly with heterogeneous multi-vendor infrastructures including Cisco equipment via industry open standard protocols. Guaranteed interoperability: VLANs 802.1Q standard tagging compatible with Cisco dot1q trunks allowing extension of VLANs transparent switches from different manufacturers, spanning-tree RSTP/MSTP IEEE 802.1w/s eliminating loops, redundant topologies mixing Cisco Catalyst and ALE OmniSwitch, LACP 802.3ad link aggregation compatible with Cisco Etherchannel increasing bandwidth of inter-switch uplinks, QoS 802.1p CoS and DSCP interoperable markings VoIP traffic crossing Cisco upstream equipment, 802.1X RADIUS/TACACS+ authentication compatible with Cisco ISE ACS servers unified network access control, SNMP monitoring standard NMS integration Cisco Prime/DNA Center or third-party Nagios/PRTG tools, and STP root bridge election negotiated automatically mixed topologies according to configured priorities. Differences to consider: CLI ALE command syntax differs from Cisco IOS requiring learning administrators accustomed to show/configure, VLANs interface naming conventions slightly varying depending on manufacturers, and incompatible advanced Cisco proprietary features (StackWise, TrustSec, SD-Access) requiring equivalent standard alternatives. For gradual Cisco migrations to ALE or long-term coexistence, plan training technical teams alternative CLI syntaxes and document unified VLAN naming conventions global infrastructure. 🔹 What is the difference between this model and the non-PoE OS6450-24? The main difference lies in presence/absence of Power over Ethernet: OS6450-P24 ("P" = PoE) incorporates 370W IEEE 802.3af/at power budget allowing powering equipment via Ethernet cables eliminating local power adapters, while OS6450-24 standard ("non-P") offers only data connectivity without PoE capability requiring separate phone/camera/terminal power supplies. All other specifications identical: 24 Gigabit ports, 2 SFP+ uplinks, 48 ​​Gbps switching capacity, Layer 2/3 functionalities, similar VLANs/QoS/ACLs. Choice of model according to applications: favor OS6450-P24 PoE for generalized VoIP IP telephony environments, WiFi infrastructure multiple access points, IP video surveillance cameras powered by Ethernet, or IoT sensors PoE building automation. Consider OS6450-24 non-PoE for aggregation distribution switches only connecting servers, graphics workstations, network printers or equipment already independently powered by the mains, saving acquisition costs and unnecessary power consumption if PoE is not required by application.

• 1x Alcatel-Lucent OmniSwitch OS6450-P24 Switch ready to use
• 24x Gigabit Ethernet RJ-45 Ports with 802.3af/at PoE
• 2x SFP+ uplink ports (transceiver modules not included)
• Power over Ethernet budget: 370W total
• Mains power cable (subject to availability)
• 1x Professional paper invoice with 0% VAT

ℹ️ Not Included: SFP/SFP+ fiber optic transceiver modules, OS6450-XNI expansion stacking modules, OS6450-SW-PERF optional software licenses, Cat5e/Cat6 Ethernet network cables, RS-232 console cables, 19-inch rack mount kits, utility CD-ROMs, hard copy documentation and accessories are not included unless otherwise noted. Switch sold only device used condition ready for use.

🚚 Shipping and Customer Service

We guarantee professional packaging adapted to sensitive PoE switches: triple-thickness reinforced cardboard, optimal protection, high-density polyurethane foam cut to measure enveloping the complete switch, multi-layer bubble film securing RJ-45 ports, front and rear connectors against shock impacts, and rigid stabilizing cushioning avoiding movements during transport and multiple handling by carriers. Our technical customer service remains available for specific VoIP IP telephony infrastructure project compatibility questions, quick start configuration advice, voice/data VLANs QoS, recommendations for compatible SFP+ modules depending on backbone connection distances, or return exchange guarantee conditions. For complex multi-site campus business network deployments requiring architectural engineering, Alcatel-Lucent OXO/Rainbow UCaaS telephony system integrations, legacy infrastructure migrations or ALE certification administrator training, we can recommend Alcatel-Lucent Enterprise France certified integrator partners or independent consultants specialized according to geographic region. Standard shipping time 24-48 hours working days receipt of confirmed payment.

🛒 Alcatel-Lucent OmniSwitch OS6450-P24 Switch - Ready to Use
24 Gigabit PoE Ports 370W • VoIP Ready • 2x SFP+ 10G • Layer 2/3 • Enterprise Quality

✅ 30-day guarantee • 📦 Secure shipping with tracking • 🧾 Professional invoice
