Product Description

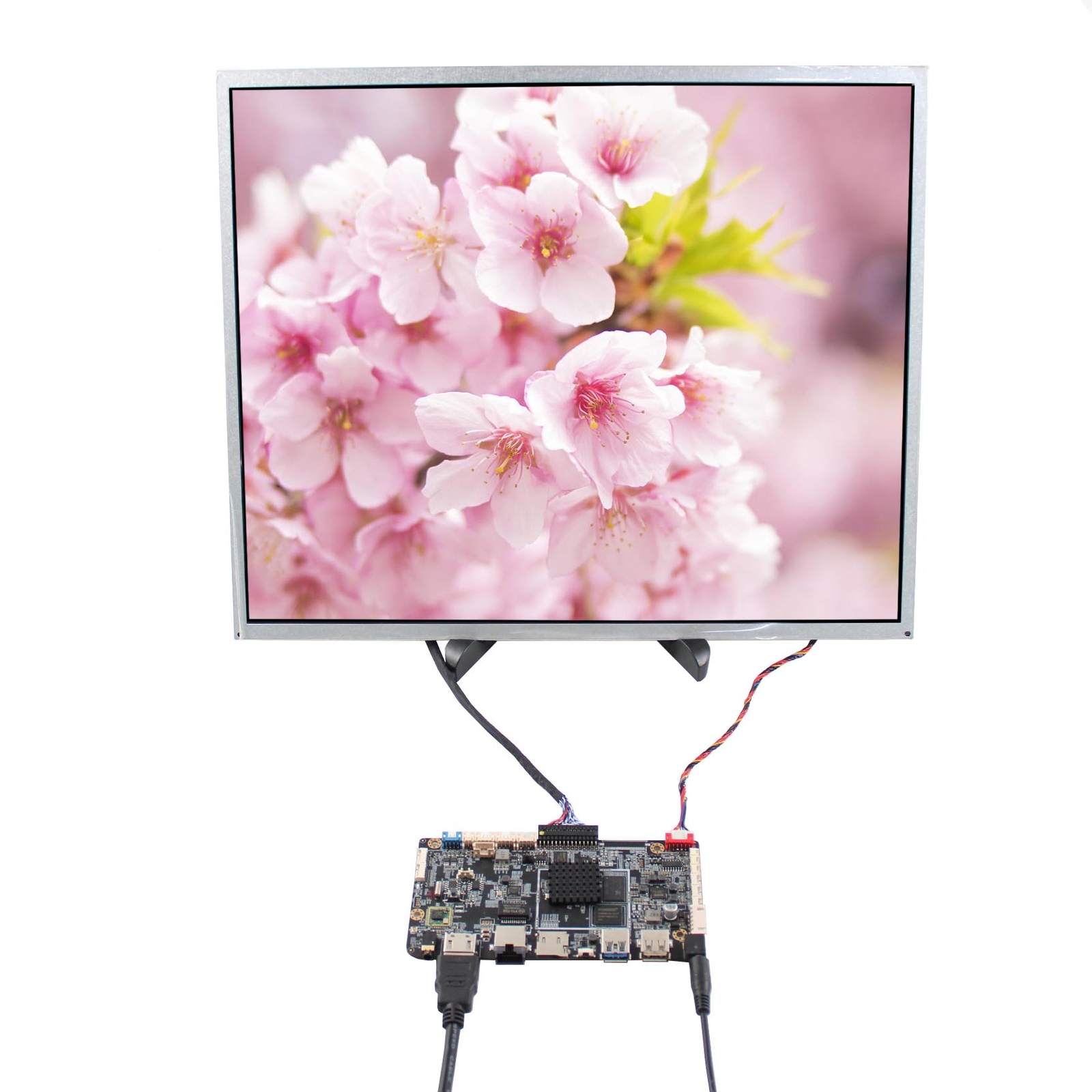

AndroidLCD Controller Board:
Android11 BoardCompatible With OpenGL ES 1.1/2.0/3.2、OpenCL 2.0 Vulkan 1.1
CPU: RK3566 UP to1.8GHz
GPU: Mali-G52-2EE
NPU: 0.8T
Memory: 2G LPDDR4X/LPDDR4
Built-in Memory: EMMC16G/32G
Decoding Resolution:1080P/H.265(4K2K)
Operating System: Android11
USB: 5 x USB2.0 1 x USB3.0
HD：Up to 3840x2160 eDP：Up to 1920x180
LVDS：Up to 1920x180 MIPI：Upto2560x1440
Audio Output: Speaker 8R/2W
Serial Port：3 x TTL 1 x Debug 1x RS232
Input Power Adapter: 12Vdc more than 2A
Come In Standby Model When Not Input Signal
Standby Model <0.5W
Board Size: 142mm x 75mm x 16mm
19" G190ETN01.41280X1024 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1280(RGB)×1024
Outline Size 396× 324×13.38 (H×V×D)
Active Area 376.32× 301.056(H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel LVDS (2 ch, 8-bit) , 30 pins
Backlight WLED
Input Voltage 5V (Typ.)
Packing list:
1×Android LCD Controller Board YF-023D Android 11
1x19inchG190ETN01.4 1280X1024 LCDScreen
1× Backlight Cable
1×LVDS Cable
1×Keyboard With Cable
