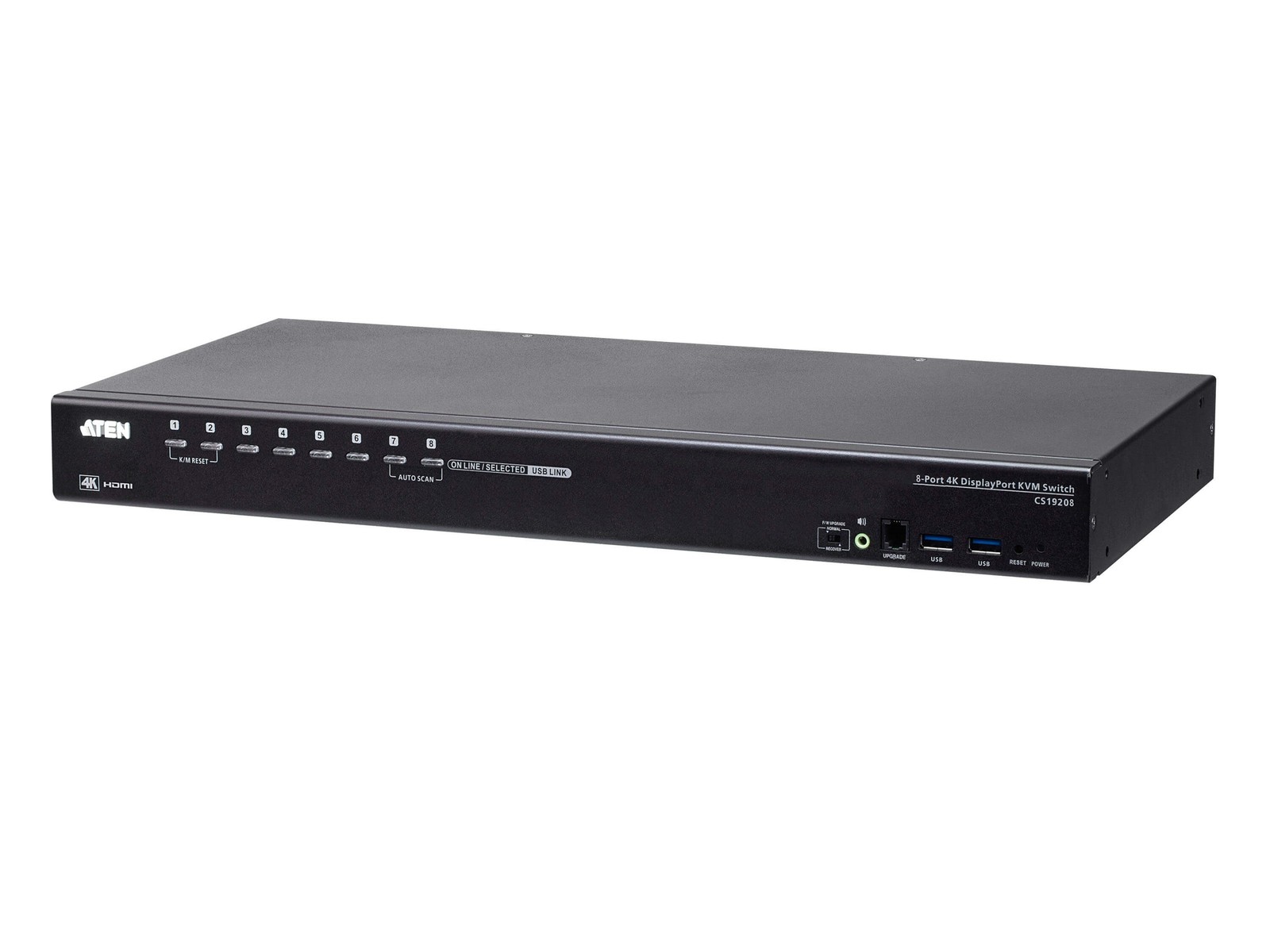

for All Products Aten CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch Manufacturer:Aten SKU:CS19208 Condition:New Warranty:3 Years
The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 at 60Hz), presenting crystal-clear visuals.
To meet the needs of easy expansion and flexibility, the CS19208 can be cascaded to two levels to control up to 128 computers from a single console. Furthermore, the CS19208 supports multi-display function by stacking up to eight CS19208 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.
With two patented ATEN technology - Video DynaSync™ and EDID Expert™ , the CS19208 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.
Besides, the CS19208 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the CS19208 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.
To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS19208 is ideal for server room/computer room management applied in industries with requirements for high-quality images and multitasking, such as Enterprise, Government, Production, Telecom, Finance, Medical Healthcare, Industrial Automation, etc.
Features:
- One USB console controls up to eight DisplayPort interface computers and two additional USB 3.0 peripheral devices
- Cascadable to two levels - controls up to 128 computers1
- Multi-Display feature - stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
- Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- EDID Expert™ - selects optimumEDIDmode for smooth power-up and highest quality display
- Supports a DisplayPort or HDMI video output - allows you to choose an appropriate video output and deploy console with flexibility
- Superior video quality - up to 4K DCI (4096 x 2160 at 60Hz)
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio enabled - full bass response provides a rich experience for 2.1 channel stereo sound
- Supports HD audio2
- Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
- Independent switching of KVM and USB peripheral focus3
- Two-level (administrator/user) password authorization for enhanced security protection
- Broadcast mode - operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
- Auto Scan Mode for monitoring all computers
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Multilingual keyboard mapping - supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
- Mac/Sun keyboard support and emulation4
- Supports hot-plugging
- DisplayPort 1.2 compliant;HDCP2.2 compliant
- Multiplatform support - Windows, Linux, Mac, and Sun
- Firmware upgradable
- Supports multimedia, wireless keyboards and mouse
Note:
1. Cascading between CS19208 andCS19216is available.
2. HD audio through HDMI and DisplayPort channel cannot be switched independently.
3. Independent switching is only supported under mouse emulation mode.
4. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.
Specifications:
Computer Connections Direct 8 Maximum 128 (via Cascade) Port Selection OSD, Hotkey, Pushbutton, RS-232 Commands Connectors Console Ports 1 x DisplayPort Female
1 x HDMI Female (Black)
2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) KVM Ports 8 x DisplayPort Female
8 x USB3.1 Gen1 Type B Female (Blue)
8 x 3.5mm Audio Jack Female (Green) Firmware Upgrade 1 x RJ11 Female (Black) Power 1 x DC Jack USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 2 x front) Switches Port Selection 8 x Pushbutton Reset 1 x Semi-recessed Pushbutton Firmware Upgrade Recovery 1 x Slide Switch LEDs On Line /Selected 8 (Orange) Power 1 (Green) USB Link 8 (Green) Emulation Keyboard / Mouse USB Video DisplayPort: 4096 x 2160 at 60Hz; HDMI: 4096 x 2160 at 60Hz Scan Interval 0–255 seconds (default: 5 secs.) Power Consumption DC12V:18.44W:136BTU Environmental Operating Temperature 0–40°C Storage Temperature -20–60°C Humidity 0–80% RH, Non-condensing Physical Properties Housing Metal Weight 3.11 kg ( 6.85 lb ) Dimensions (L x W x H) 43.24 x 21.43 x 4.40 cm
(17.02 x 8.44 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
- 2x DisplayPort 1.4 Cables
- 2x USB 3.0 Cables
- 2x Audio Cables
- 1x Firmware Upgrade Cable
- 1x Foot Pad Set (4 pcs)
- 1x Power Adapter
- 1x User Instructions
