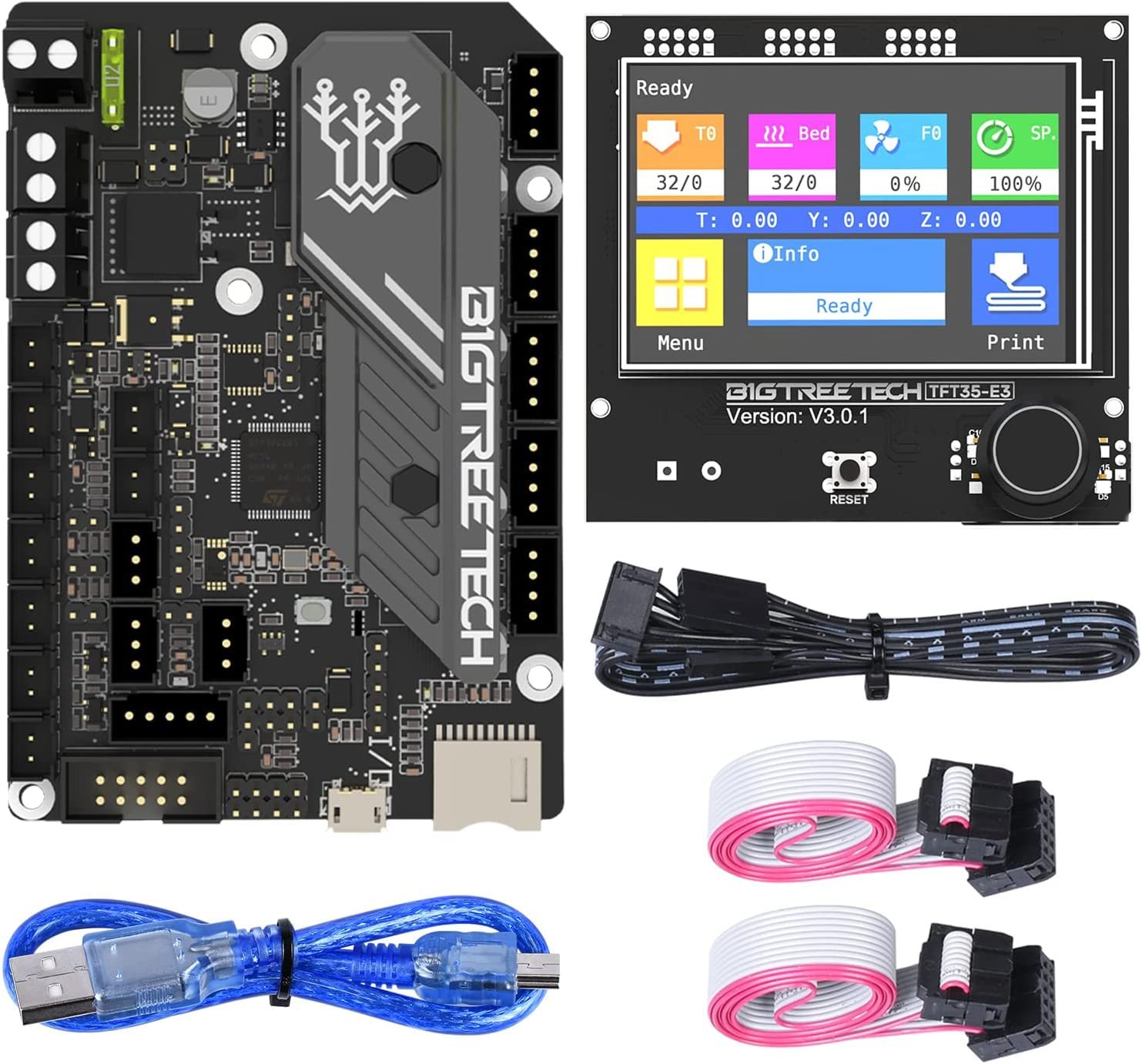

BIGTREETECH SKR Mini E3 V3.0 Control Board +TFT35 E3 V3.0.1 Touch Screen Display 32Bit Silent Board Integrated with TMC2209 UART Stepper Driver Compatible with Ender 3/5 Ender 3 Pro/V2 3D Printer
- BIGTREETECH Combo Set: Comes with BIGTREETECH SKR Mini E3 V3.0 32 bit control board and TFT35 E3 V3.0.1 touch screen display with dual modes as a set. perfect for Ender 3 3D Printer, plug and playing, Adopted the latest G0 series MCU-STM32G0B0RET6 main control chip packing excellent performances
- Upgraded More Capabilities: Intergrated with TMC2209 V1.3 mute stepper driver, BIGTREETECH SKR Mini E3 V3.0 motherboard offers silent performance as default, and supports dual Z steppers for linear rail and belt upgrades, filament runout support, automatic shutdown (UPS support), power-off resume, sensorless homing and so on
- Impressive Heat Dissipation: The BTT SKR MINI E3 V3.0 silent board also looks aesthetic with upgraded designs.New heatsink and 3 PWM controlled fans serve to cool down the machine during printing, effectively improving performances on heat dissipation. A direct 3D printer control board replacement for Ender 3, Ender 3 Pro, and Ender 5 3D Printer motherboards
- Supports Touch and Graphic Display: BTT tft35-e3 v3.0 display enables you to easily switch between the Marlin LCD emulator and touch screen with menu interface, simply by pressing and holding the selector wheel. It's a plug and play on Ender series printers with BTT SKR MINI E3 V3.0 control board.（Note: When running Klipper firmware, tft35 e3 v3.0.1 display only support 12864 mode)
- Satisfying After-Sales Support: If you have any problems about BTT SKR MINI E3 V3.0 with TFT35 E3 V3.0.1 smart display combo sets, please feel free to tell us anytime. We have profession technical supports team to help you as soon as we can
Main Update Features
1) Redesign the motherboard ID to improve the aesthetics of the motherboard
2) Adopt STMicroelectronics' latest G0 series MCU STM32G0B1RET6;
3) Redesign the drive heat sink to strengthen the drive heat dissipation capacity;
4) Increase the heat dissipation controllable fan of the whole machine to reduce the temperature of the whole machine when the equipment is working;
5) Change the USB interface to USB Micro B;
6) Increase the SPI output port +3.3V power supply, and the external SPI sensor power supply voltage +3.3V and +5V are optional;
Main Parameters
1. Appearance size: 103.75*70.25mm
2. Input voltage: DC12-28V
3. Motor driver: UART mode of onboard TMC2209;
4. Motor interface: XM, YM, dual Z axis (ZAM, ZBM), EM
5. Temperature sensor interface: TH0, THB, 2 channels 100K NTC (thermal resistance)
6. Display: 2.4 inch TFT, 3.5 inch TFT, Ender3 original LCD12864 screen, etc.
7.PC communication interface: USB Micro B type, communication baud rate 115200
8. Expanded interface function support: material interruption detection, continuous printing after power failure, shutdown after printing, BL_Touch, etc.
9. Support file format: G-code
10.Recommended software: Cura, Simplify3D, Pronterface, Repetier-host, Makerware
11. Support SD card offline printing
12. Support online printing
13. Support SPI, UART expansion, connect to Raspberry Pi through SPI, UART, USB (Type-C) virtual serial port
14. Support 2 heating rod output (heating rod, hot bed). Support three-way controllable fan output. Support 4-way limit switch.
15. Integrate RGB color light strip drive circuit.
