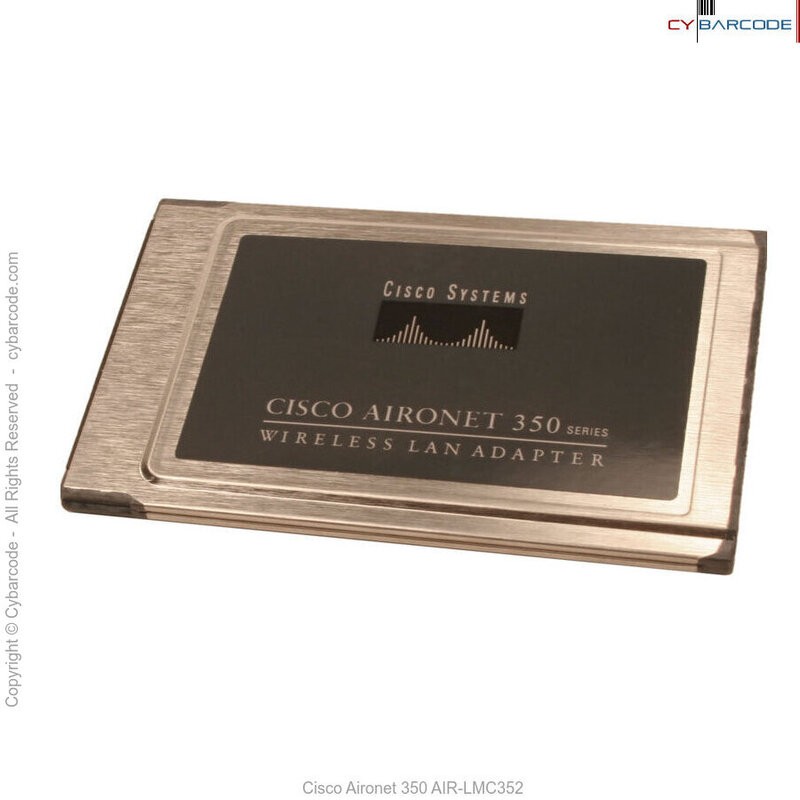

For sale is a Cisco Aironet 350 PCMCIA Wireless LAN Adapter PC Card AIR-LMC352 without Antenna.
In great shape and warranted non-DOA.
See our other sales for more quality laptop Aironet 350 Series Client Adapter Specifications
Data Rates Supported 1, 2, 5.5, and 11 Mbps
Network Standard IEEE 802.11b
System Interface AIR-PCM35x: PC Card (PCMCIA) Type II
Frequency Band 2.4 to 2.4897 GHz
Network Architecture Types Infrastructure and ad hoc
Wireless Medium Direct Sequence Spread Spectrum (DSSS)
Media Access Protocol Carrier sense multiple access with collision avoidance (CSMA/CA)
Modulation DBPSK @1 Mbps DQPSK @ 2 Mbps CCK @ 5.5 and 11 Mbps
Operating Channels North America: 11 ETSI: 13 Japan: 14
Nonoverlapping Channels Three
Receive Sensitivity 1 Mbps: –94 dBm 2 Mbps: –91 dBm 5.5 Mbps: –89 dBm 11 Mbps: –85 dBm
Delay Spread 1 Mbps: 500 ns 2 Mbps: 400 ns 5.5 Mbps: 300 ns 11 Mbps: 140 ns
Available Transmit Power Settings 100 mW (20 dBm) 50 mW (17 dBm) 30 mW (15 dBm) 20 mW (13 dBm) 5 mW (7 dBm) 1 mW (0 dBm) Maximum power setting will vary according to individual country regulations
Range (typical) Indoor: 130 ft (40 m) @ 11 Mbps 350 ft (107 m) @ 1 Mbps Outdoor: 800 ft (244 m) @ 11 Mbps 2000 ft (610 m) @ 1 Mbps
Compliance Operates license free under FCC Part 15 and complies as a Class B device; complies with DOC regulations; complies with ETS 300.328, FTZ 2100, and MPT 1349 standards
Operating Systems Supported Windows 95, 98, NT 4.0, 2000, ME, XP, CE 2.11, CE 3.0, CE .NET (CE 4.0, CE 4.1), Mac OS 9.x, Mac OS X, MS-DOS and Linux
Antenna AIR-PCM35x: Integrated diversity dipoles AIR-LMC35x: Two MMCX connectors (antennas optional, none supplied with unit) AIR-PCI35x: External, removable 2.2 dBi Dipole with RP-TNC Connector
Encryption Key Length 128-bit
Security Cisco Wireless Security Suite supporting Wi-Fi Protected Access (WPA) including:
Authentication: • 802.1X support including LEAP, EAP-FAST, PEAP-GTC, PEAP-MSCHAP V2, EAP-TLS, EAP-TTLS and EAP-SIM to yield mutual authentication and dynamic, per-user, per-session encryption keys • MAC address and by standard 802.11 authentication mechanisms
Encryption: • Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits • TKIP enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation via WPA TKIP and Cisco TKIP
Status Indicators Link Status and Link Activity
Dimensions AIR-PCM35x: 2.13 in. (5.4 cm) wide x 4.37 in. (11.1 cm) deep x 0.1 in. (0.3 cm) high AIR-LMC35x: 2.13 in. (5.4 cm) wide x 3.31 in. (8.4 cm) deep x 0.1 in. (0.3 cm) high AIR-PCI35x: 6.6 in. (16.8 cm) wide by 3.9 in. (9.8 cm) x .5 in. (1.3 cm) high
Weight AIR-PCM35x: 1.6 oz (45g) AIR-LMC35x: 1.4 oz (40g) AIR-PCI35x: 4.4 oz (125g)
Environmental AIR-PCM35x and AIR-LMC35x: –22° to 158°F (–30° to 70°C) AIR-PCI35x: 32° to 131°F (0° to 55°C) 10 to 90% (noncondensing)
Input Power Requirements +5 VDC =/– 5%
Typical Power Consumption (at 100 mW transmit power setting) Transmit: 450 mA Receive: 270 mA Sleep mode: 15 mA
Dropped or otherwise abused your OmniBook? I stock the most commonly broken or lost OmniBook small parts, let me know if you don't find what you need in my other sales.
Check out my response, I am a reputable Seller.
