2U

IOS-XE 3.15

1x NIM-4MFT-T1/E1

appxk9

2x PWR-4450-AC (Takes C13 Plug)

Minor signs of prior use, including
scratches, scuffs and possible adhesive
residue remaining.

Power Cord(s)

• NO Rack Ears

Router#show env all
Sensor List: Environmental Monitoring
Sensor Location State Reading
P: pwr: Pwr 1/0 Normal 8 Watts
Temp: Temp 1 P0 Normal 30 Celsius
Temp: Temp 2 P0 Normal 27 Celsius
Temp: Temp 3 P0 Normal 27 Celsius
V: PEM Out P0 Normal 12433 mV
I: PEM In P0 Normal 1 A
I: PEM Out P0 Normal 4 A
P: In pwr P0 Normal 50 Watts
P: Out pwr P0 Normal 41 Watts
RPM: fan0 P0 Normal 2160 RPM
Temp: Temp 1 P1 Normal 30 Celsius
Temp: Temp 2 P1 Normal 26 Celsius
Temp: Temp 3 P1 Normal 27 Celsius
V: PEM Out P1 Normal 12420 mV
I: PEM In P1 Normal 1 A
I: PEM Out P1 Normal 4 A
P: In pwr P1 Normal 48 Watts
P: Out pwr P1 Normal 42 Watts
RPM: fan0 P1 Normal 2160 RPM
RPM: fan0 P2 Normal 4430 RPM
RPM: fan1 P2 Normal 4556 RPM
RPM: fan2 P2 Normal 4471 RPM
RPM: fan3 P2 Normal 4515 RPM
P: pwr P2 Normal 5 Watts
Temp: Inlet 1 R0 Normal 25 Celsius
Temp: Inlet 2 R0 Normal 25 Celsius
Temp: Outlet 1 R0 Normal 31 Celsius
Temp: Outlet 2 R0 Normal 33 Celsius
Temp: core-A R0 Normal 44 Celsius
Temp: core-B R0 Normal 38 Celsius
Temp: core-C R0 Normal 43 Celsius
V: 12v R0 Normal 12371 mV
V: 5v R0 Normal 5084 mV
V: 3.3v R0 Normal 3339 mV
V: 3.0v R0 Normal 3006 mV
V: 2.5v R0 Normal 2439 mV
V: 1.05v R0 Normal 1036 mV
V: 1.8v R0 Normal 1793 mV
V: 1.2v R0 Normal 1218 mV
V: Vcore-C R0 Normal 1147 mV
V: 1.1v R0 Normal 1099 mV
V: 1.0v R0 Normal 1020 mV
V: 1.8v-A R0 Normal 1769 mV
V: 1.5v-A R0 Normal 1503 mV
V: 1.5v-C1 R0 Normal 1513 mV
V: 1.5v-B R0 Normal 1503 mV
V: Vcore-A R0 Normal 994 mV
V: 1.5v-C2 R0 Normal 1500 mV
V: Vcore-B1 R0 Normal 830 mV
V: Vcore-B2 R0 Normal 899 mV
V: 0.75v-B R0 Normal 751 mV
V: 0.75v-C R0 Normal 762 mV
I: 12v R0 Normal 6 A
P: pwr R0 Normal 70 Watts
P: pwr: Pwr 0/1 Normal 4 Watts
Router#show inv

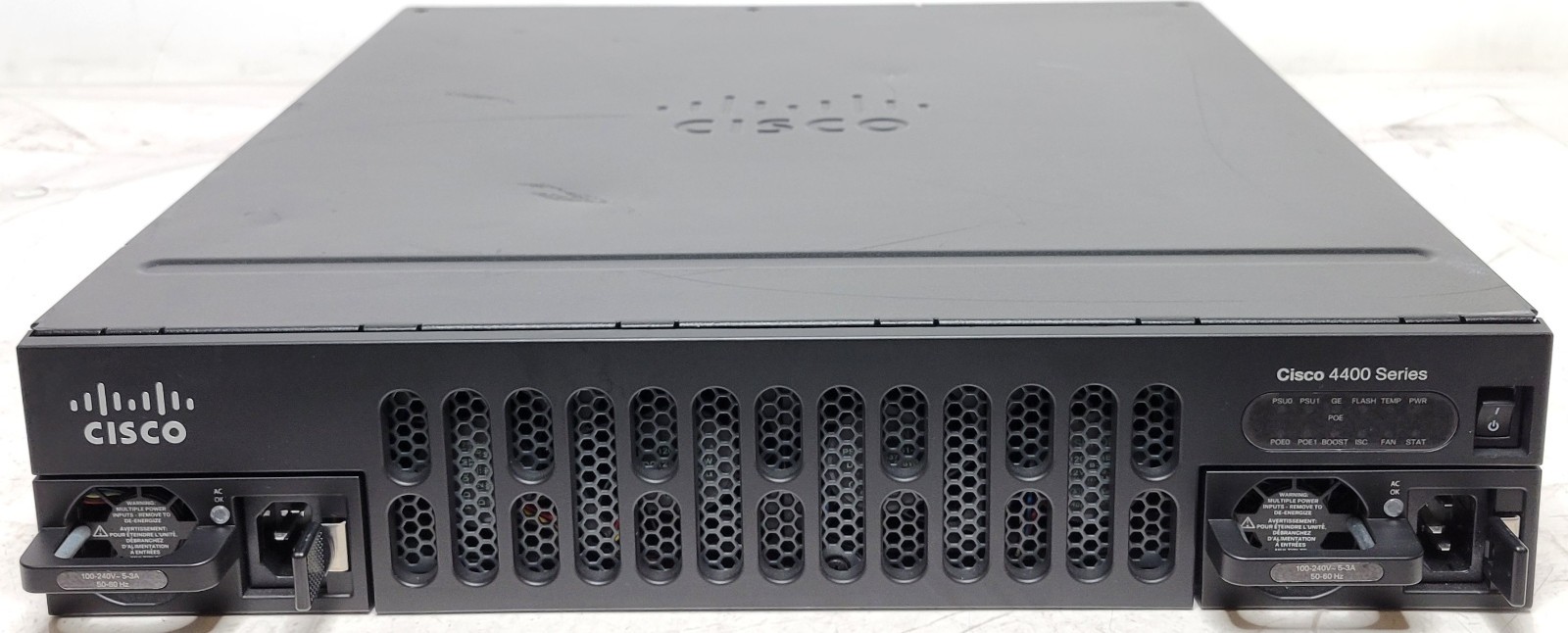

NAME: "Chassis", DESCR: "Cisco ISR4451 Chassis"
PID: ISR4451-X/K9 , VID: V06, SN: FJC2014D08PNAME: "Power Supply Module 0", DESCR: "450W AC Power Supply for Cisco ISR4450, ISR4350"
PID: PWR-4450-AC , VID: V02, SN: DCA1949X3PKNAME: "Power Supply Module 1", DESCR: "450W AC Power Supply for Cisco ISR4450, ISR4350"
PID: PWR-4450-AC , VID: V02, SN: DCA1949X3JSNAME: "Fan Tray", DESCR: "Cisco ISR4450, ISR4350 Fan Assembly"
PID: ACS-4450-FANASSY , VID: , SN:NAME: "module 0", DESCR: "Cisco ISR4451 Built-In NIM controller"
PID: ISR4451-X/K9 , VID: , SN:NAME: "NIM subslot 0/1", DESCR: "NIM-4MFT-T1/E1 - T1/E1 Serial Module"
PID: NIM-4MFT-T1/E1 , VID: V03, SN: FOC20064D3GNAME: "PVDM subslot 0/4", DESCR: "PVDM4-64 Voice DSP Module"
PID: PVDM4-64 , VID: V02, SN: FOC200833DVNAME: "NIM subslot 0/0", DESCR: "Front Panel 4 ports Gigabitethernet Module"
PID: ISR4451-X-4x1GE , VID: V01, SN: JAB092709ELNAME: "module 1", DESCR: "Cisco ISR4451 Built-In SM controller"
PID: ISR4451-X/K9 , VID: , SN:NAME: "SM subslot 1/0", DESCR: "UCS-E180D-M2/K9 - UCSE DW Module"
PID: UCS-E180D-M2/K9 , VID: V01, SN: FOC200647SWNAME: "module 2", DESCR: "Cisco ISR4451 Built-In SM controller"
PID: ISR4451-X/K9 , VID: , SN:NAME: "module R0", DESCR: "Cisco ISR4451 Route Processor"
PID: ISR4451-X/K9 , VID: V06, SN: FOC20105KWTNAME: "module F0", DESCR: "Cisco ISR4451 Forwarding Processor"
PID: ISR4451-X/K9 , VID: , SN:
Router#show license
Index 1 Feature: appxk9
Period left: Life time
License Type: Permanent
License State: Active, In Use
License Count: Non-Counted
License Priority: Medium
Index 2 Feature: uck9
Period left: Life time
License Type: Permanent
License State: Active, In Use
License Count: Non-Counted
License Priority: Medium
Index 3 Feature: securityk9
Period left: Life time
License Type: Permanent
License State: Active, In Use
License Count: Non-Counted
License Priority: Medium
Index 4 Feature: ipbasek9
Period left: Life time
License Type: Permanent
License State: Active, In Use
License Count: Non-Counted
License Priority: Medium
Index 5 Feature: cme-srst
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Active, Not in Use, EULA not accepted
License Count: 0/0 (In-use/Violation)
License Priority: None
Index 6 Feature: hseck9
Period left: Life time
License Type: Permanent
License State: Active, In Use
License Count: Non-Counted
License Priority: Medium
Index 7 Feature: throughput
Period left: Life time
License Type: Permanent
License State: Active, Not in Use
License Count: Non-Counted
License Priority: Medium
Index 8 Feature: internal_serviceRouter#show ver
Cisco IOS XE Software, Version 03.15.01c.S - Standard Support Release
Cisco IOS Software, ISR Software (X86_64_LINUX_IOSD-UNIVERSALK9-M), Version 15.5(2)S1c, RELEASE SOFTWARE (fc1)
Technical Support: (c) 1986-2015 by Cisco Systems, Inc.
Compiled Sat 15-Aug-15 21:40 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2015 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMONRouter uptime is 2 minutes
Uptime for this control processor is 3 minutes
System returned to ROM by reload
System image file is reload reason: LocalSoftADRThis product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.A summary of U.S. laws governing Cisco cryptographic products may be found you require further assistance please contact us by sending email to
(email)
Technology Package License Technology-package Technology-package
Current Type Next appxk9 Permanent appxk9
uc uck9 Permanent uck9
security securityk9 Permanent securityk9
ipbase ipbasek9 Permanent ipbasek9cisco ISR4451-X/K9 (2RU) processor with 3713895K/6147K bytes of memory.
Processor board ID FJC2014D08P
4 Gigabit Ethernet interfaces
32768K bytes of non-volatile configuration memory.
8388608K bytes of physical memory.
7341807K bytes of flash memory at bootflash:.Configuration register is 0x2102
