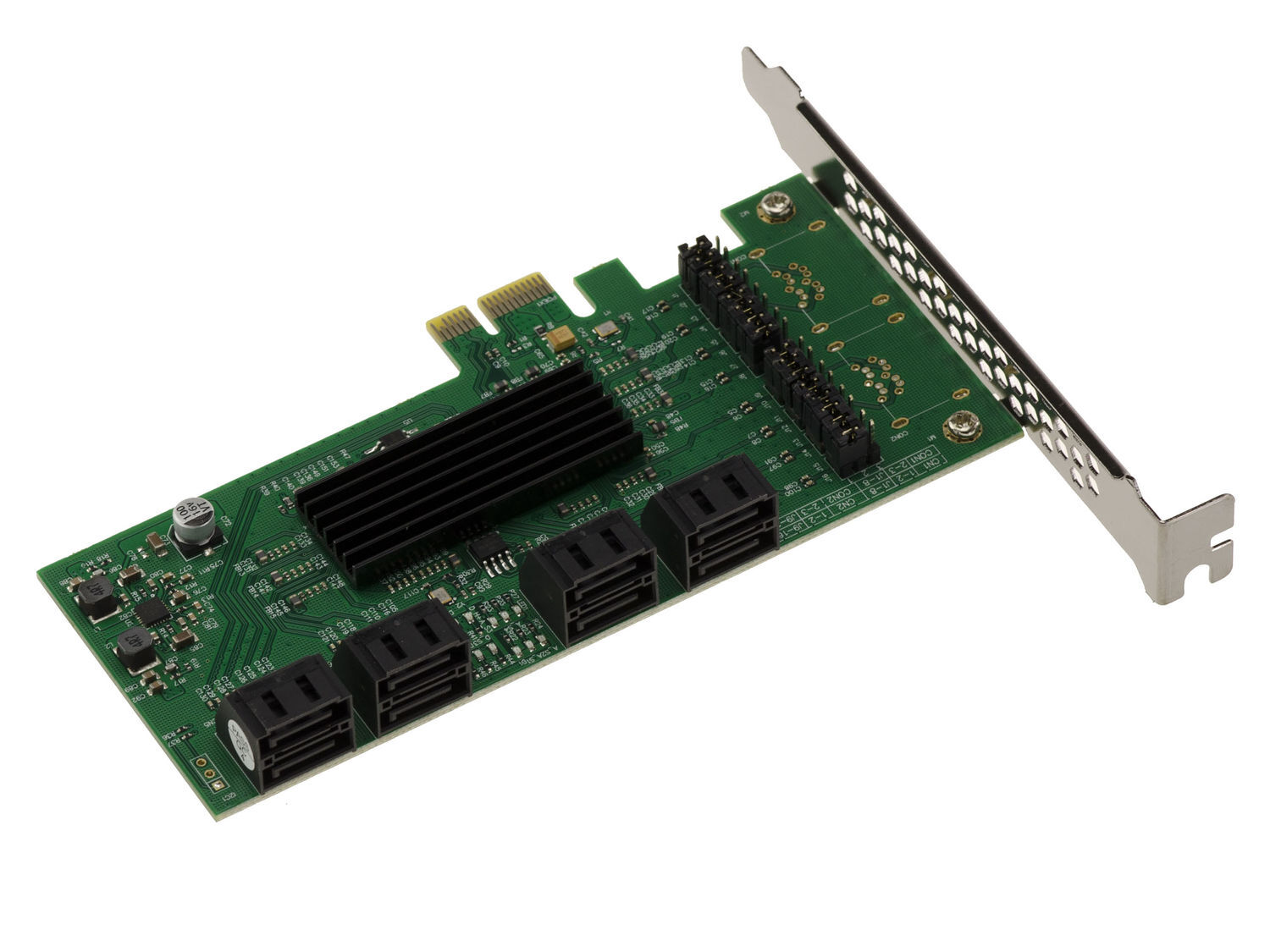

For DESKTOP PC on PCI EXPRESS port. Allows you to add 8 SATA ports (internal) to connect 1 to 8 SATA III devices 3 (backwards compatible with SATA 1 and 2).
Theoretical maximum throughput with SATA 3 hard drives: 600 MB/s (i.e. a bandwidth of 6GB). Drivers included for: Windows 2000, XP32/64, Vista32/64, Seven, 8 and 10-11 32/64 - Linux Kernel 2.6.19 and beyond.
Features :
Dual Chipset: Marvell 88SE9215 and Marvell 88SM9705.
PCI EXPRESS 1x Port (PCIe 2.0) - Will fit over a PCIe 1x, 2x, 4x, 8x or 16x port.
Compatible with SATA 3 (accepts SATA 1 and 2 disks, but the maximum speed will then be 150MB/s and 300MB/s respectively).
For hard drives or optical drives.
Maximum transfer speed of 600MB/second (6Gb bandwidth).
Eight independent SATA III ports.
Supports NCQ (32 commands/port).
Compatible with FIS port multipliers.
Compatible with 'port multiplier' devices.
Immediate installation (plug and play).
Card supplied with SATA cables and two brackets: High profile + Low profile.
For DESKTOP PC on PCI EXPRESS port. Allows you to add 8 SATA ports (internal) to connect 1 to 8 SATA III devices independently. SATA 3 (backwards compatible with SATA 1 and 2). Theoretical maximum throughput with SATA 3 hard drives: 600 MB/s (i.e. a bandwidth of 6GB). Drivers included for: Windows 2000, XP32/64, Vista32/64, Seven, 8 and 10-11 32/64 - Linux Kernel 2.6.19 and beyond. Dual Chipset: Marvell 88SE9215 and Marvell 88SM9705. PCI EXPRESS 1x Port (PCIe 2.0) - Will fit over a PCIe 1x, 2x, 4x, 8x or 16x port. Compatible with SATA 3 (accepts SATA 1 and 2 disks, but the maximum speed will then be 150MB/s and 300MB/s respectively). Maximum transfer speed of 600MB/second (6Gb bandwidth). Compatible with 'port multiplier' devices. Card supplied with SATA cables and two brackets: H Recommended products Provided by Pcie 4 Ports Sata 3 6G - Chipset Marvell 88Se9215 - High Low Profile View product PCIe 3.0 X1 Card With 10 Ports For SATA 3.0 6G Hard Drives, Dual Chipset J View product Pcie Raid Sata III 6GB 4 Ports Marvell 88se9230 View product PCIe 3.0 X4 Controller Card 5 SATA 3.0 6G Hard Drive Ports JMB585 View product Pcie 3.0 Controller Card SAS + SATA - 12GB - 24 Internal Ports - OEM 9305-24i View product Mini PCI EXPRESS Card (Minipcie) - 2 SATA 3.0 Ports - ASM1061R Chipset - RAID View product Pcie Sata III 6GB Controller 2 Ports ASM1061 High Low Profile Compact View product KALEA-INFORMATIQUE ASM1064 PCIe SATA Controller, 6GB, 4 Ports, AHCI UEFI View product
