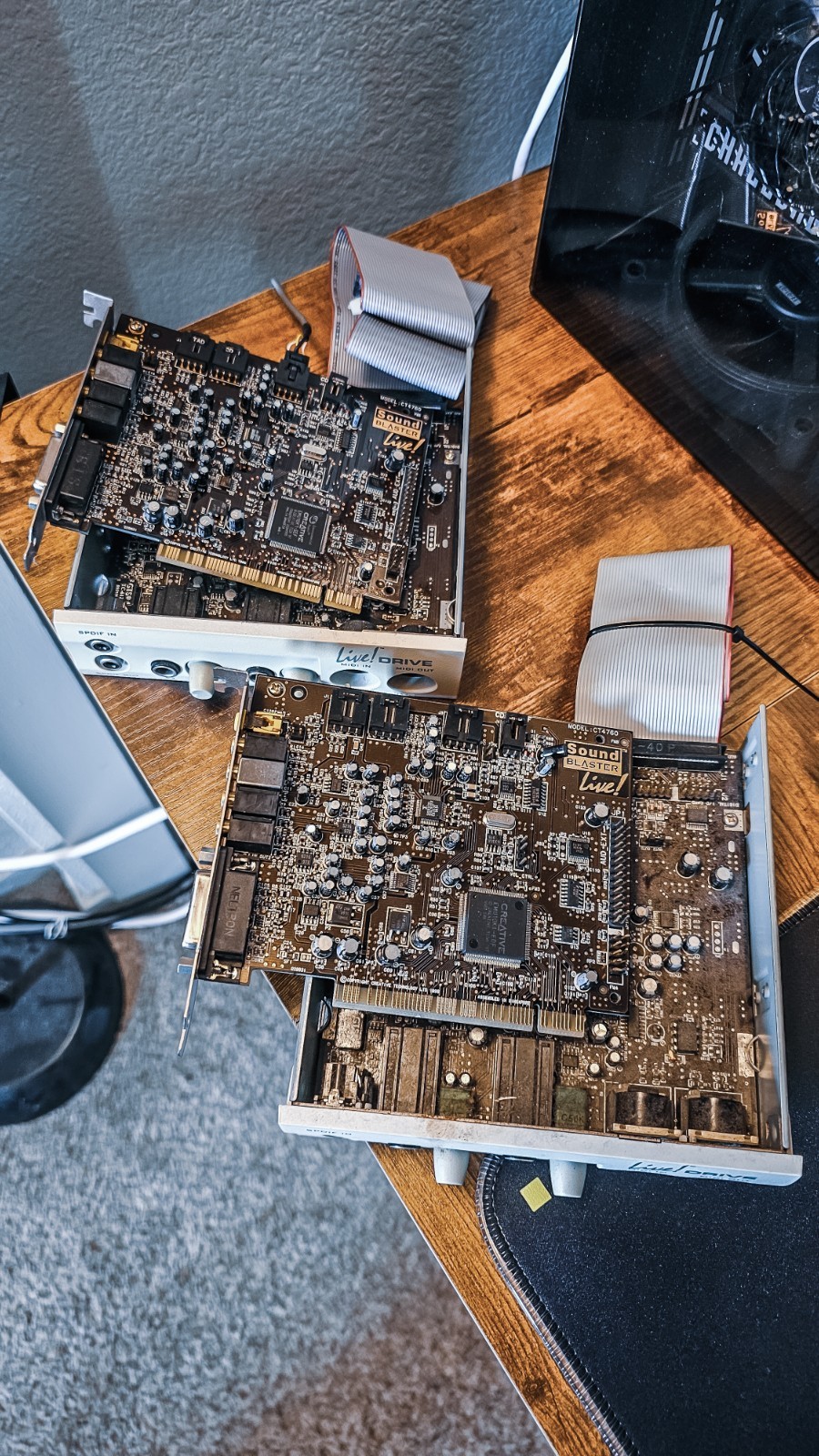

Two used Creative Labs Sound Blaster Live! 5.1 (Model CT4760) cards with their joining LIVE DRIVES from front PC panel control. I have had both of these for almost 30 years, so it's crazzzyyy to finally try and part ways with them. The Creative Labs Sound Blaster Live! (Model CT4760) is a classic 32-bit PCI internal sound card released in 1999, powered by the Creative EMU10K1-SEF audio processor. [1, 2]Key Specifications & Features - Bus Interface: 32-bit PCI (5V) [1, 2]
- Audio Chipset: Creative EMU10K1-SEF [1, 2]
- Sound Standards: Hardware-accelerated Environmental Audio Extensions (EAX 1.0 and EAX 2.0), 3D Positional Audio, multi-channel speaker support [1, 2]
- Sample Rate: 8 kHz to 48 kHz [1]
- External Connections / Ports:
- 2x 3.5mm Audio Line-In
- Microphone-in
- Front/Rear Line-Out (3.5mm jacks)
- Digital S/PDIF Output (3.5mm)
- Standard 15-pin Game / MIDI port (DA-15/DB-15) [1, 2, 3]
- Internal Connections:
- CD/Aux Audio In, TAD, CD S/PDIF
- S/PDIF input (pin header)
- Internal 40-pin AUD_EXT header (compatible with the front-panel Live! Drive accessory included in Platinum/bundle variants) [1, 2, 3, 4]
- OS Compatibility: Designed for legacy retro PC builds running Microsoft Windows 98SE, ME, 2000, and XP. Driver packages and utilities can be found via Creative Worldwide Support. [1, 2, 3]
- Detailed Database Reference: Full technical cataloging is available on The Retro Web. [1]

|
|
