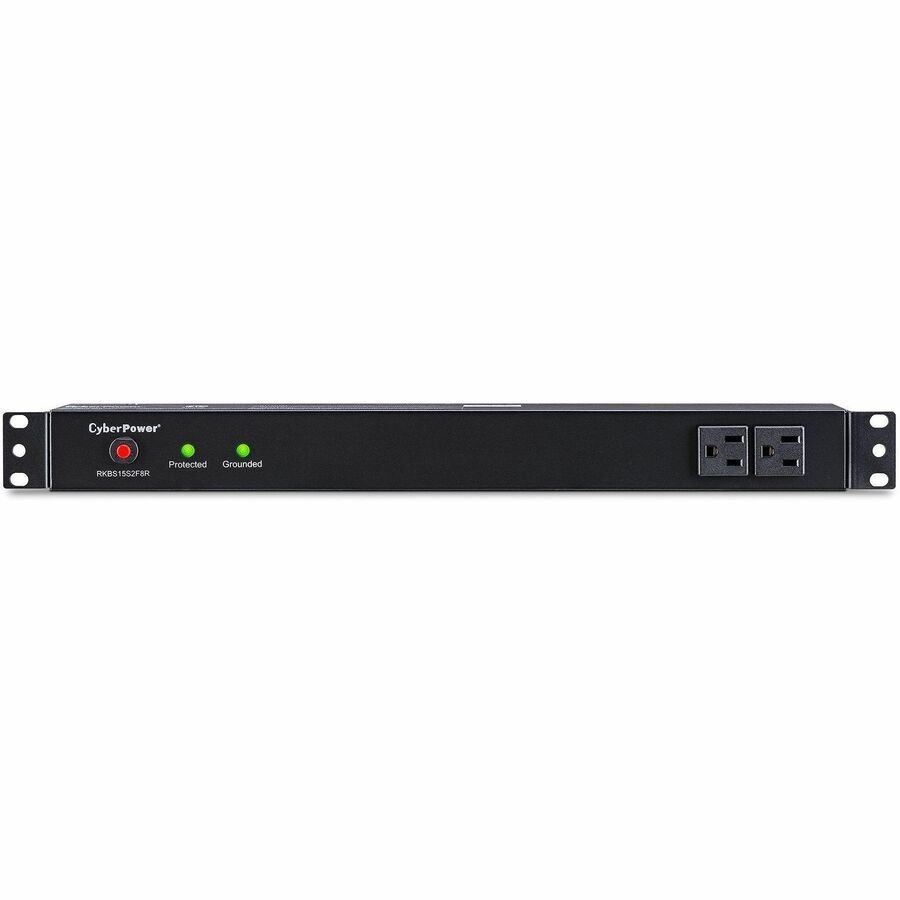

CyberPower 1U Rackmount Rackbar 10-Outlet Surge Suppressor, 3600 Joules Brand: Cyberpower UPC: 0649532901678 Mfr Part #: RKBS15S2F8R

General Information

Engineered for the most demanding applications, the professional-grade Rackbar™ Surge Protector RKBS15S2F8R from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the RKBS15S2F8R also performs superbly for home office use, providing 3600 joules of protection, 15-Amp electrical capacity with circuit breaker, and 10 surge-protected outlets (2 front, 8 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. Two sets of mounting brackets provide flexible installation options: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations.

Features of the RKBS15S2F8R include an EMI/RFI noise filter, LED status indicators, industrial-grade metal housing, AC power cord (15 ft.), and a cord retention tray. The RKBS15S2F8R also comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee.

More from the Manufacturer

Technical InformationPlug/Connector Type:NEMA 5-15PReceptacles:10 x NEMA 5-15RProtection Type:SurgeFeatures:LED IndicatorFeatures:Switch Free Design

Power DescriptionInput Voltage:120 V ACOutput Voltage:120 V ACMaximum Line Current:15 AMaximum Surge Current:180 kASurge Energy Rating:3600 JCircuit Breaker:Yes

Physical CharacteristicsColor Family:BlackProduct Color:BlackProduct Material:MetalPower Cord/Cable Length:15 ftForm Factor:Rack-mountableRack (Approximate):4.01 lb

Rackbar Surge Suppressor RM 1U RKBS15S2F8R 15A 10-Outlet

Mounting Brackets (2 Sets)

Cord Retention Tray

Cord Organizers

User DeviceAdditional Information:

Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm)

Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in)

Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm)

Weight (kg) : 1.82

Weight (lb) : 4.01

Shipping Dimensions - (WxHxD) (cm) : 18.11 x 7.62 x 51.13 (cm)

Shipping - Dimensions (WxHxD, in) : 7.13 x 3.0 x 20.13 (in)

Shipping - Dimensions (WxHxD, mm) : 181.1 x 76.2 x 511.3 (mm)

Shipping - Weight (kg) : 2.18

Shipping - Weight (lb) : 4.8

Circuit Breaker : 15 A

Cord Length : 15 ft (4.6 m)

Input Frequency Range : 50 Hz - 60 Hz

Input Plug Type : NEMA 5-15P

Maximum Input Current : 15A

Plug Style : Straight

Nominal Output Voltage : 120 VAC

Outlets - Front : 2

Outlets - Rear : 8

Outlets - Total : 10

Outlet Type COMPUTED : 10 - NEMA 5-15R

Overload Protection : 15A

USB Charge Port : No

Attenuation : 50 dB

Clamping Voltage : 400V (H-N, H-G, N-G)

EMI/RFI Filtration COMPUTED : Yes

Maximum Surge Current : 180000 A

Maximum Surge Current H-G : 30000 A

Maximum Surge Current H-N : 120000 A

Maximum Surge Current N-G : 30000 A

Maximum Surge Voltage : 6000 V

Response Time : 1 Nanosecond

Surge Suppression (Joules) : 3600 J

Attenuation : 50 dB

Clamping Voltage : 400V (H-N, H-G, N-G)

EMI/RFI Filtration COMPUTED : Yes

Maximum Surge Current : 180000 A

Maximum Surge Current H-G : 30000 A

Maximum Surge Current H-N : 120000 A

Maximum Surge Current N-G : 30000 A

Maximum Surge Voltage : 6000 V

Response Time : 1 Nanosecond

Surge Suppression (Joules) : 3600 J

LED Indicators : Power On (green)

Adjustable Mounting Brackets : 2 sets (L-Short, L-Long)

Color : Black

Cord Retention Tray/Cord Organizers : Yes

External Site Ground Pin : Yes

Form Factors Supported : 1U Rackmount

Material of Construction : Metal

Rack Height : 1U

Style : Rackmount

Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 95 °F (0 - 35 °C)

Storage Elevation : 0 - 50000 ft (0 - 15239 m)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1363

CEG Amount : $150000

Connected Equipment Guarantee : Lifetime

Product Warranty : Limited Lifetime Warranty

Certifications & Standards:UL1363Environmentally Friendly:YesCompatibility:

• Data Equipment
• Telecommunications Equipment
• Security Systems
• Audio/Video Equipment

Environmental Compliance:Restriction of Hazardous Substances (RoHS)
