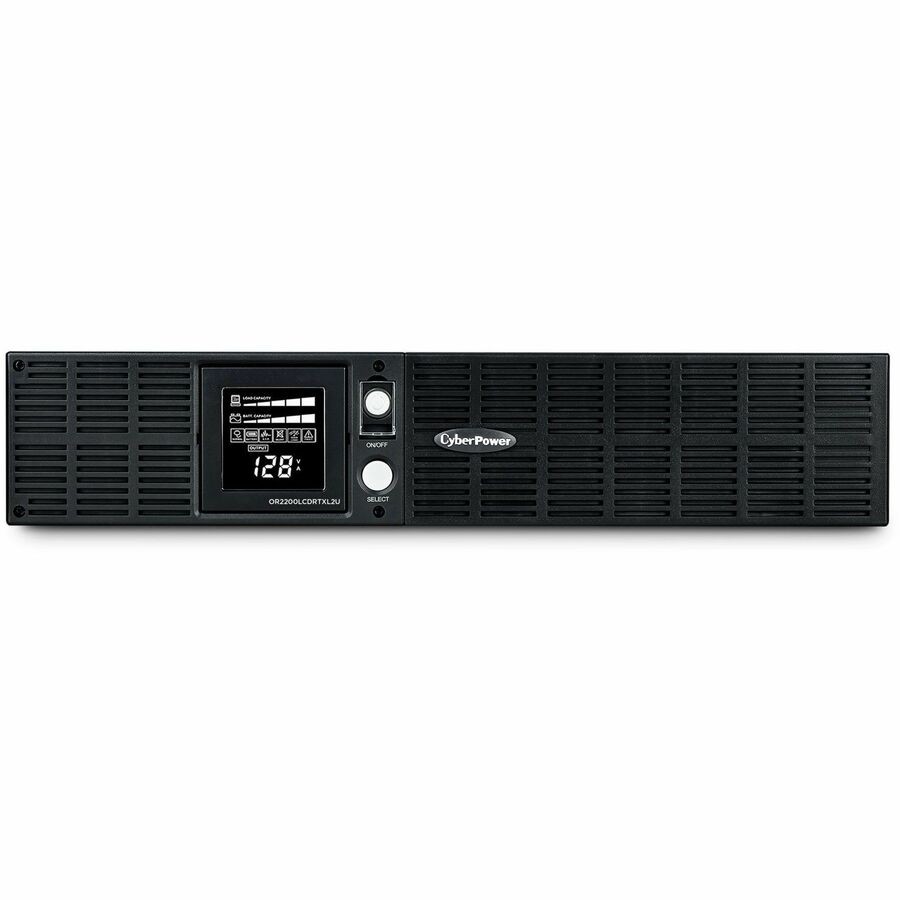

CyberPower OR2200LCDRTXL2U Smart App LCD UPS Systems
Price: US $953.98
A rack/tower convertible UPS with line interactive topology, the CyberPower Smart LCD OR2200LCDRTXL2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR2200LCDRTXL2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
  • About Us
  • Payment Info
  • Shipping Info
  • Customer Support
  • response
CyberPower OR2200LCDRTXL2U Smart App LCD UPS Systems Brand: Cyberpower UPC: 0649532022038 Mfr Part #: OR2200LCDRTXL2U

General Information

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart LCD OR2200LCDRTXL2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR2200LCDRTXL2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

More from the Manufacturer

Technical InformationAVR:YesPlug/Connector Type:NEMA 5-20PReceptacle Type:NEMA 5-20RReceptacle Detail:8 x NEMA 5-20RNumber of Battery & Surge Outlets:8Transfer Time:4 msDataline Protection:RJ-11Dataline Protection:RG-6Overload Protection:YesEnergy Saving:GreenPower UPS™ Bypass class="product_spacer">

Power DescriptionLoad Capacity (VA):2190 VAInput Voltage:120 V ACOutput Voltage:120 V ACInput Frequency:63 HzOutput Frequency:60 HzWaveform Type:Simulated Sine Wave

  • Power On
  • Wiring Fault

    • Battery InformationNumber of Batteries:4Battery Characteristics:Maintenance-freeBattery Chemistry:Lead AcidBattery Size:12VBattery Capacity:9000 mAhBackup/Run Time (Full Load):6 MinuteBackup/Run Time (Half Load):15 MinuteTypical Battery Recharge Time:8 HourReplaceable Battery:Yes

    Physical CharacteristicsColor Family:BlackProduct Color:BlackForm Factor:Rack/TowerRack (Approximate):90 lb

  • Smart App LCD OR2200LCDRTXL2U 2190 VA Tower/Rack-mountable UPS
  • User's manual
  • Rackmount brackets
  • Stands, Telephone cable
  • Emergency Power Off cable
  • USB A+B type cable
    • Certifications & Standards:
    • UL1778
    • CSA C22.2 No 107.3
    • FCC/DoC Class B
    Additional Information:
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • UPS Topology : Line Interactive
  • Battery Quantity : 4
  • Battery Size : 12 V / 9 Ah
  • Battery Type : Sealed Lead-Acid Battery
  • Extended Battery Module : BP48VP2U02
  • Hot Swappable : Yes
  • Replacement Battery Cartridge : RB1290X4B
  • Replacement Battery Cartridge Quantity : 1
  • Runtime at Full Load : 6 min
  • Runtime at Half Load : 15 min
  • Typical Recharge Time : 8 Hours
  • User Replaceable Battery : Yes
  • Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.89 x 47.75 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17 x 3.5 x 18.8 (in)
  • Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 478 (mm)
  • Weight (kg) : 40.82
  • Weight (lb) : 90
  • Shipping Dimensions - (WxHxD) (cm) : 55.25 x 26.67 x 60.96 (cm)
  • Shipping - Dimensions (WxHxD, in) : 21.75 x 10.5 x 24.0 (in)
  • Shipping - Dimensions (WxHxD, mm) : 552.45 x 266.7 x 609.6 (mm)
  • Shipping - Weight (kg) : 40.82
  • Shipping - Weight (lb) : 90
  • Circuit Breaker : 20 A
  • Cord Length : 10 ft (3.0 m)
  • Input Frequency Range : 47 Hz - 63 Hz
  • Input Plug Type : NEMA 5-20P
  • Nominal Input Voltage : 120 VAC
  • Plug Style : Straight
  • Automatic Voltage Regulation : Single Boost
  • On AC WaveForm : Sine Wave
  • On Battery Frequency : 60 Hz ± 1%
  • On Battery Voltage : 120 VAC ± 5%
  • On Battery Waveform : Simulated Sine Wave
  • Outlets - Battery & Surge Protected : 8
  • Outlets - Total : 8
  • Outlet Type COMPUTED : 8 - NEMA 5-20R
  • Output Power Factor : 0.8
  • Overload Protection : Internal Circuitry Limiting
  • Typical Transfer Time : 4 ms
  • USB Charge Port : No
  • VA : 2100 VA
  • Watts : 1650 W
  • Coax Protection RG6 COMPUTED : 1 in
  • EMI/RFI Filtration COMPUTED : Yes
  • Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
  • Surge Suppression (Joules) : 2060 J
  • Coax Protection RG6 COMPUTED : 1 in
  • EMI/RFI Filtration COMPUTED : Yes
  • Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
  • Surge Suppression (Joules) : 2060 J
  • Audible Alarms : Battery Mode
  • HID Compliant USB Port : Yes
  • LCD : Multifunction LCD
  • LED Indicators : Power On
  • Management Cable : USB Cable
  • Serial Port : 1 Serial
  • SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
  • Software (Free Download) : PowerPanel® Business
  • Color : Black
  • Form Factor : Rack / Tower
  • Material of Construction : Metal
  • Rack Height : 2U
  • Operating Relative Humidity : 0 - 90 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  • Environmental : RoHS Compliant
  • Safety : UL1778
  • CEG Amount : $300000
  • Connected Equipment Guarantee : Lifetime
  • Extended Warranty Option : WEXT5YR-U4B
  • Product Warranty : 3 Year Limited Warranty
    • Software Included:PowerPanel Business Edition SoftwareEnergy Star:NoCountry of Origin:PhilippinesEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
