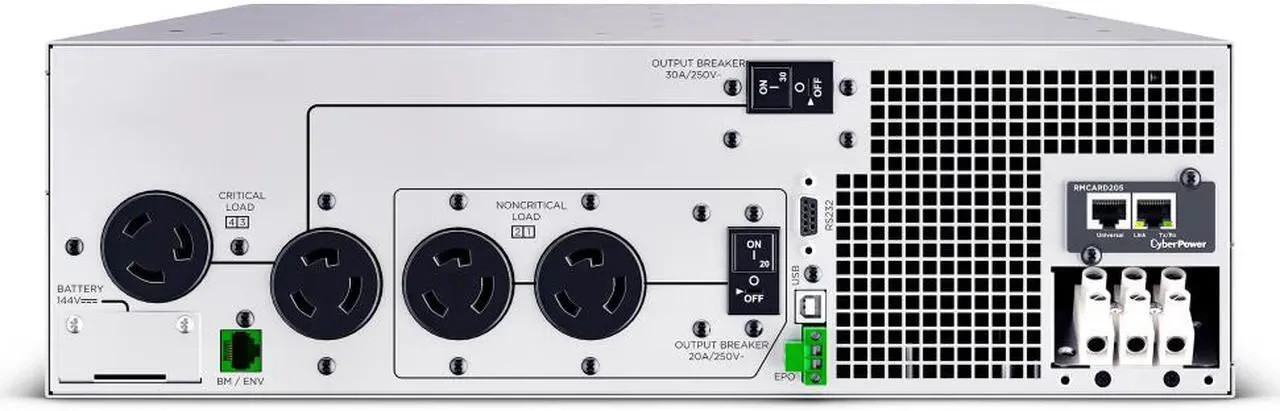

CyberPower OL5KRTHDL Smart App Online UPS Systems - 5000VA/5000W, 200 - 240 VAC, Hardwire Terminal (NEMA L6-30P power cord included), 3U, Rack / Tower, Sine Wave, 4 Outlets, LCD, PowerPanel® Business
>How long will the UPS power my systems after the power goes out?
Run times vary based on the power required by connected devices. This system is estimated to run for 14.3 minutes at half load, 4.9 minutes for a full load. The LCD provides an estimated run time based on the required power usage during blackouts.
>Can this UPS model be monitored?
Yes, the OL5KRTHDL comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
> Do all of the outlets have battery backup power and surge protection?
Yes, all four outlets provide battery backup power and surge protection. Two outlets provide critical load protection to maximize the run time for critical equipment.
> Can the battery capacity be expanded?
Yes, the OL5KRTHDL can support the optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power.
> How do I mute the alarms?
Users can disable or enable the audible alarms from the basic set up via the LCD screen, navigate to audible alarm and then set to Mute on battery.
- Capacity: 5000 VA / 5000 W
- High Density: 3U Size
- Power Factor (PF): 1
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Runtime (half/full): 14.3 minutes / 4.9 minutes
- Plug type & cord: NEMA L6-30P Power Cord with Hardwire Option
- Outlet types: 2 x NEMA L6-20R, 2 x NEMA L6-30R
- Communication ports: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business Edition
- Energy Saving: ECO Mode Efficiency >96%
- Remote management: Yes, RMCARD205 pre-installed
- LCD Control Panel: Multi-Function Color
- Battery Equalization Technology: Yes
- Smart Battery Management: Yes
- Fast Charge Technology: Yes
