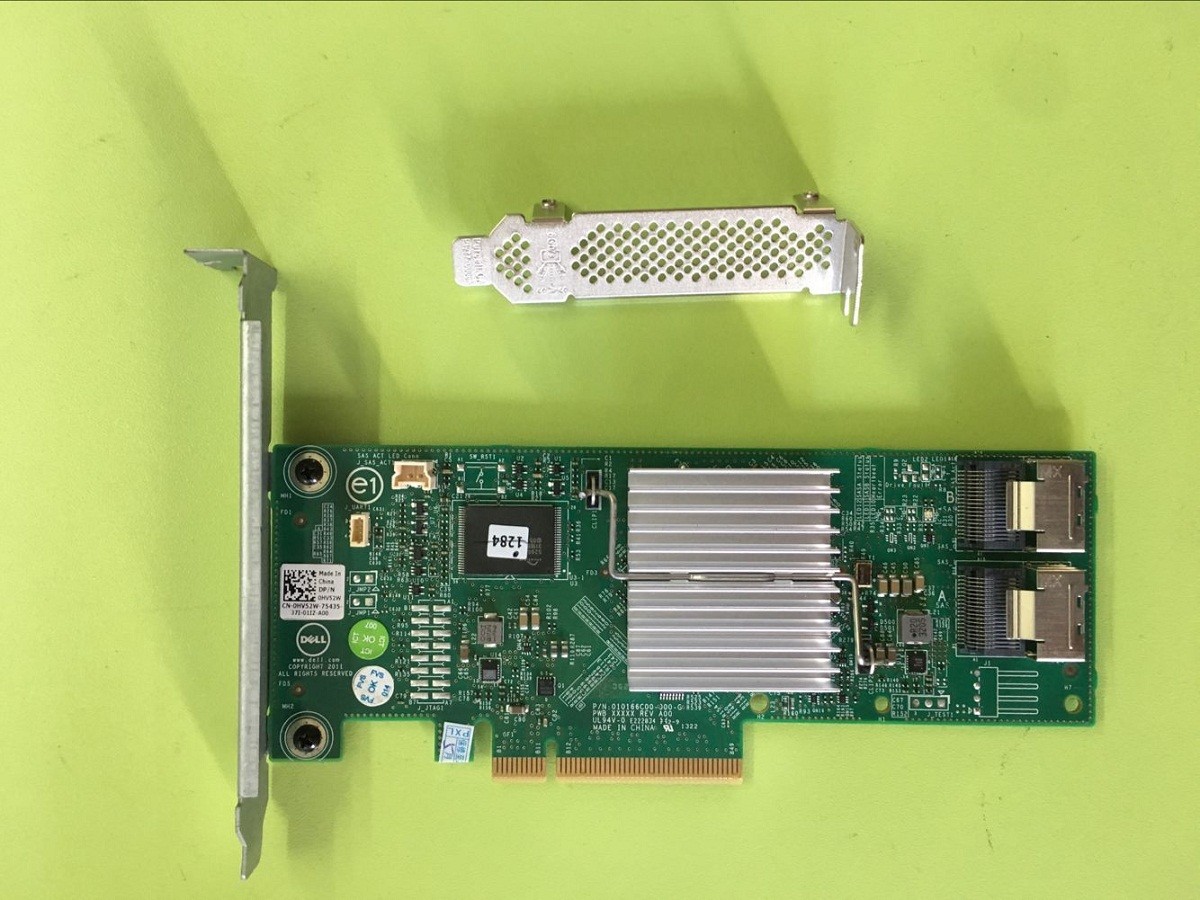

Dell Perc H310 SATA / SAS HBA Controller RAID 6Gbps PCIe x8 LSI 9240-8i M1015 Description: The eight-port MegaRAID SAS 9240-8i, supports data transfer rates of up to 6Gb/s per port, brings new features and improved performance to entry-level server applications using up to 64 SATA or SAS devices.
Features: - 6Gb/s data transfer rate - Eight internal 6GB/s SATA+SAS ports - Two x4 Mini-SAS Internal connectors (SFF8087) - LSISAS2008 controller - PowerPC 440 @ 533MHz - RAID 0, 1, 5, 10, 50 and JBOD mode - Hardware RAID solution - x8 PCI Express 2.0 host interface - Low-profile form factor - Supports up to 64 physical devices - Up to 16 physical devices in a RAID configuration - Patrol read - Consistency Check - S.M.A.R.T error detection - Power management support - MegaRAID Storage Manager
Technical Information: Solution Provided:Low-cost, green SATA+SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drives Physical Dimensions:6.6" X 2.536" (Low-Profile) Connectors:Internal Two X4 Mini-SAS SFF8087 (vertical orientation) Max Number of Physical Devices:Non-Raid: 64, RAID 0: 16 per volume, RAID 1: 2 per volume plus hotspare, RAID 5: 16 per volume, RAID 10: 16 per volume, RAID 50: 16 per volume Host Bus Type:8-lane, 5 GT/s PCI Express 2.0 Compliant Data Transfer Rates:Up to 6Gb/s per port SAS Controller:LSISAS2008 Key RAID Data Protection Features: - RAID levels 0, 1, 5, 10, 50 and JBOD mode - Selectable logical drive as boot drive - Consistency Check - Fast initialization for quick array setup - Native Command Queuing - Staggered spin up for SATA drives - Hot plug support - Global hot spare support - Online Capacity Expansion (OCE) - Online RAID Level Migration (RLM) - Single controller Multipathing (failover) - Load balancing -SafeStore Encryption Services - Instant Secure Erase - SSD support with SSD Guard - Automatic rebuild of hot spare drives - Auto resume during array rebuild - Fault LED support through SGPIO - >2TB logical drive support - Soft bad block management - Error recovery support - DDF compliant Configuration on Disk - S.M.A.R.T. support - Patrol read for media scanning and repairing - Enclosure management - SES (inband) - SGPIO (sideband) - RAID ManagmentMegaRAID Management Suite: - MegaRAID Storage Manager - MegaCLI (command-line interface) - WebBIOS EnvironmentsOperating: 0°C to 70°C, 5 to 90% Non-condesingStorage, -45°C to 105°C, 5 to 90% Non-condesing PCI Card Type:3.3V Add-in Card PCI Voltage:+12V±10% PCI Power:13.5W PCI Modes:Bus Master DMA LED Indicators:Internal Activity/Fault per x4 port - Hearbeat MTFB:>2,000,000 Hours Compliances:EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950 OS Support:Microsoft Windows, Linux (SuSE, Red Hat), Solaris, Vmware. Brackets:Full Height and Low-Profile
