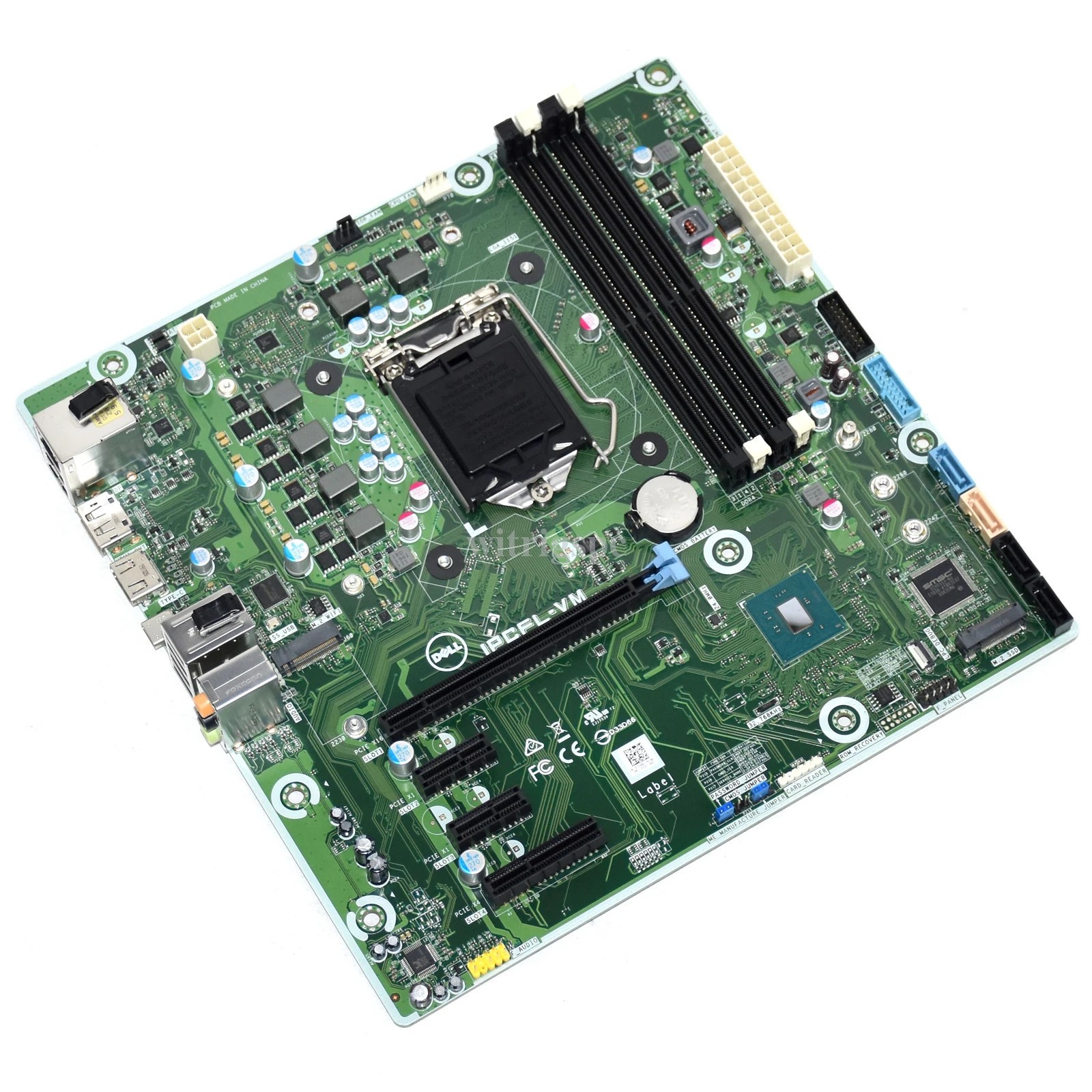

Dell XPS 8930 Motherboard Intel Z370 Socket LGA1151 DDR4 IPCFL-VM DF42J T2HR0

Brand: Dell
Part Number: T2HR0
MPN: T2HR0 / 0T2HR0 / DF42J / IPCFL-VM
Type: Desktop Motherboard
Compatible Brand: For Dell
Compatible Product Line: For Dell XPS
Compatible Model: For Dell XPS 8930

CPU Support
Socket: Intel LGA 1151
Chipset: Intel Z370
Supported CPUs:
8th Gen Intel Core only (Coffee Lake)
Intel Core i3 (non-K)
Intel Core i5 / i5K
Intel Core i7 / i7K

Memory
Type: DDR4 UDIMM (Non-ECC, Unbuffered)
Slots: 4 × DIMM
Max RAM: 64 GB
Speeds:
Up to 2400 MHz with Core i3
Up to 2666 MHz with Core i5/i7

Storage Options
SATA Ports: 4 × SATA III (6 Gbps)
M.2 Slots:
1 × M.2 2280: NVMe or SATA SSD (bootable)
1 × M.2 2230: For Wi-Fi/Bluetooth module only

Expansion Slots
1 × PCIe x16 (for GPU)
1 × PCIe x4
1 × PCIe x1

Power Connectors
1 × 24-pin ATX main power
1 × 8-pin CPU power

Internal Headers
Front panel header (power switch, HDD LED, etc.)
1 × USB 3.0 header
1 × USB 2.0 header
1 × CPU fan header
2–3 system fan headers

Rear I/O Ports
4 × USB 3.1 Gen 1
2 × USB 2.0
1 × RJ-45 Gigabit Ethernet
1 × HDMI out (from CPU iGPU)
1 × DisplayPort (from CPU iGPU)
1 × PS/2 combo port
Audio (Realtek ALC codec):
Line-in
Line-out
Microphone

This item will be shipped exactly as shown in the picture.
