Desktop Computer GIGABYTE GA-MA790GP-DS4H Motherboard 6GB RAM & 256GB SSD
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Desktop Computer GIGABYTE GA-MA790GP-DS4H Motherboard 6GB RAM & 256GB SSD
Price: US $70.00
Desktop Computer GIGABYTE GA-MA790GP-DS46 Motherboard 6GB RAM & 256GB SSDFully Functional / Works Fine

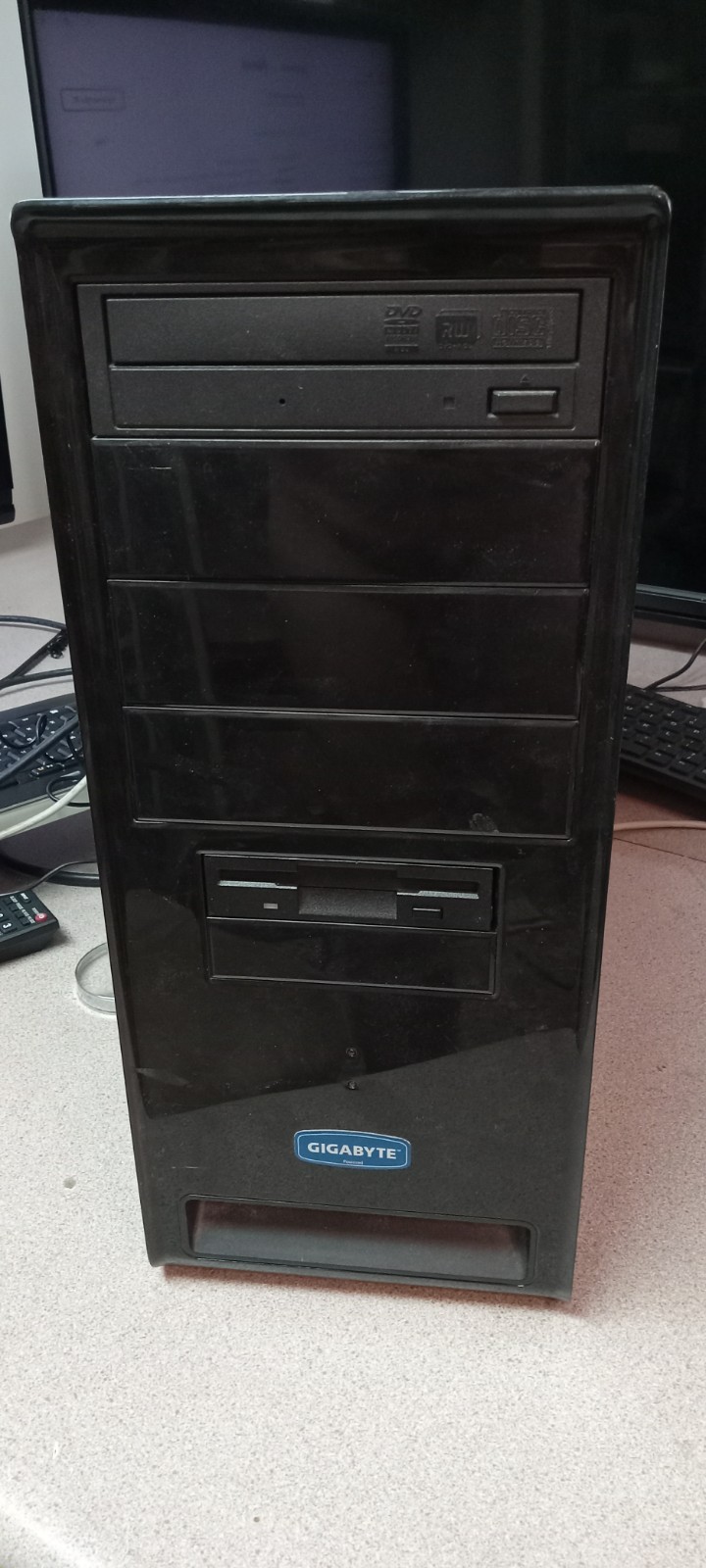

Comes in a very nice computer case with Gigabyte Logo on the front has a GIGABYTE GA-MA790GP-UD4H motherboard, with an AMD Phenom 9550 processor. It comes with 6GB of RAM and a 256GB SSD
* Running Windows 11 (Harbor Tech tiny)* IDE DVD-RW Drive
  • CPU
    1. Support for Socket AM3 / AM2+ / AM2 processors: AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ X2 processor/ AMD Sempron™ processor
  • Hyper Transport Bus
    1. 5200/2000 MT/s
  • Chipset
    1. North Bridge: AMD 790GX
    2. South Bridge: AMD SB750
  • Memory
    1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR2 1200 (Note 2)/1066/800 MHz memory modules
  • Integrated Memory
    1. 128MB DDR3 SidePort memory
  • Audio
    1. Realtek ALC889A codec
    2. High Definition Audio
    3. Support for Dolby Home Theater
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. Realtek 8111C chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) (Note 3)
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8_1)
      (The PCIEX16_1 and PCIEX8_1 slots support ATI Hybrid CrossFireX technology and ATI CrossFireX technology, and conform to PCI Express 2.0 standard.)
    3. 3 x PCI Express x1 slots
    4. 2 x PCI slots
  • Storage Interface
  • South Bridge:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
    3. Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
  • Integrated in the South Bridge
    1. Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)
  • IEEE 1394
  • T.I. TSB43AB23 chip
    1. Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan header
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In/Out header
    13. 2 x IEEE 1394a header
    14. 4 x USB 2.0/1.1 headers
    15. 1 x serial port header
    16. 1 x chassis intrusion header
    17. 1 x power LED header
  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D port (Note 4)
    5. 1 x HDMI port
    6. 1 x optical S/PDIF Out connector
    7. 1 x IEEE 1394a port
    8. 4 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • I/O Controller
    1. ITE IT8718 chip
  • H/W Monitoring
  • System voltage detection
    1. CPU/System temperature detection
    2. CPU/System fan speed detection
    3. CPU overheating warning
    4. CPU/System fan fail warning
    5. CPU/System fan speed control (Note 5)
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Virtual Dual BIOS
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 6)
    8. Support for Easy Energy Saver (Note 7)
  • Operating System Running Windows 11 Tiny Harbour Tech
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm


Buy Now
