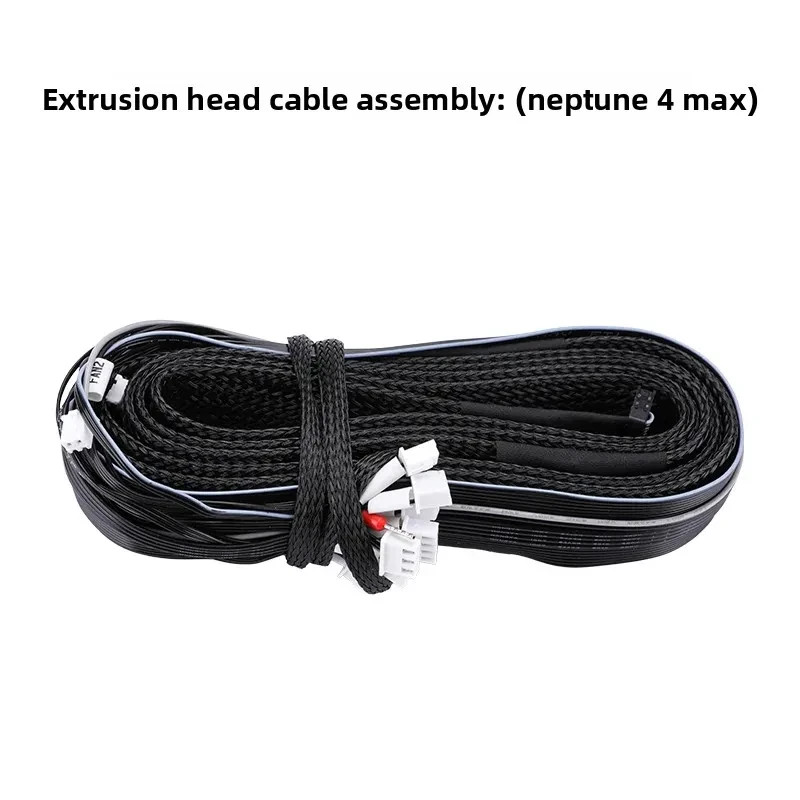

Restore your toolhead's connectivity with this complete, original Elegoo wiring harness. This set provides the critical electrical pathways for all print head functions, including the heater, thermistor, extruder motor, fans, and leveling sensor. Replace frayed or shorted wires to ensure consistent, reliable printing performance.

This is a Genuine Elegoo OEM (Original Equipment Manufacturer) Wiring Set, harvested from an authenticated Neptune 4 Max. If your printer is experiencing intermittent connection errors, failing to detect temperature, or if the print head cooling fans are unresponsive, this wiring harness is the definitive solution to resolve underlying signal failures.

⚠️ CRITICAL INSTALLATION NOTICE

PROFESSIONAL REPAIR MANDATORY:

• Power Safety: Must be powered off and disconnected from AC power before beginning.

• Documentation: Take high-resolution photos of your existing cable routing and connection points before removal.

• Precision Handling: This harness features delicate, high-density JST and ribbon connectors. Do not pull on the wires; always hold the connector body firmly when seating into the toolhead controller board.

• Strain Relief: Correct installation requires precise routing through the cable management system (drag chain/sleeving). Failure to follow original factory routing will lead to rapid "trace fatigue," causing the new wires to break prematurely due to print head movement.

• Risk: Self-installation is performed entirely at your own risk. Incorrect wiring can cause permanent damage to your mainboard or toolhead adapter board.

Condition Note: Safe-Pull Inspected

⚠️ PRE-OWNED HARVEST COMPLIANCE: Every wiring harness has been meticulously extracted and verified for electrical integrity.

• Continuity Verified: Every individual wire segment has been tested for continuity, ensuring no internal copper breaks or hidden intermittent faults.

• Connector Integrity: All factory-terminated connectors are checked for bent pins, corrosion, or loose contact tension.

• Insulation Health: The protective wire sheathing is inspected for cracks, heat-stress brittleness, or physical nicks that could lead to short-circuits.

Key Features

• Genuine Elegoo Factory Hardware: Guarantees 100% compatibility with your Neptune 4 Max’s toolhead architecture. Third-party wire sets often lack the correct gauge or connector pinout, which can cause erratic thermal readings or stepper motor failure.

• Complete Harness: Includes all necessary leads for a total toolhead refresh, saving you the time and effort of diagnosing and repairing individual wire segments.

• Factory-Spec Insulation: Utilizes heat-resistant, flexible insulation designed to move thousands of times within the cable drag chain without stiffening or cracking.

• Modular Integration: Designed for a straightforward "plug-and-play" swap when paired with the Neptune 4 Max's toolhead controller board.

Symptoms This Replacement Resolves

• "Heating Failed" or "Thermal Runaway": Often caused by a broken thermistor wire or a loose heater power connection within the main harness.

• Fan Failure: Fixes part-cooling or hot-end fans that fail to spin despite the mainboard sending the command.

• Intermittent "Homing" Errors: A broken wire in the leveling sensor (CR-Touch/inductive) lead will prevent the printer from correctly calibrating or "homing."

• Extrusion Issues: If the extruder motor is stuttering, stopping, or "clicking," a damaged motor cable lead in this set is the frequent cause.

Technical ModelElegoo Neptune 4 MaxComponent TypeFull Toolhead Wiring HarnessConditionUsed Original OEM (Tested, Integrity Verified)Donor OriginAuthenticated Elegoo Neptune 4 Max Pull
