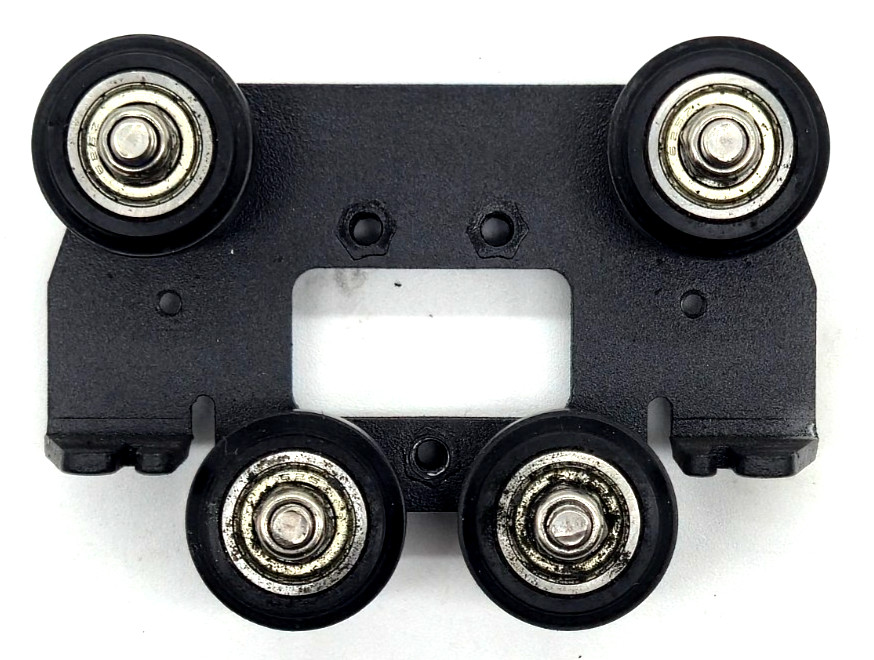

Restore the structural integrity and motion accuracy of your Neptune 4 Max. This complete printhead back plate assembly comes pre-equipped with the factory-spec V-wheel pulleys, providing a comprehensive, "drop-in" solution to fix nozzle tilt, toolhead wobble, or damaged carriage hardware.
This is a Genuine Elegoo OEM (Original Equipment Manufacturer) Back Plate Kit, harvested from an authenticated Neptune 4 Max. By including the pre-mounted V-wheel pulleys, this assembly allows you to replace the entire X-axis carriage interface in a single operation, ensuring factory-perfect alignment and smooth movement along the X-axis rail.
⚠️ CRITICAL INSTALLATION NOTICE
PROFESSIONAL REPAIR RECOMMENDED:
Precision Alignment: This plate serves as the interface between the toolhead and the X-axis linear rails. Installing it incorrectly will lead to an angled nozzle, resulting in poor layer adhesion and print quality issues.
Eccentric Nut Tuning: CRITICAL: After mounting, you must correctly adjust the eccentric nut on the bottom V-wheel. It should be tightened just enough to eliminate "play" without causing the plate to bind or the wheels to flatten. Over-tightening will lead to rapid wear on both the wheels and the aluminum rail.
Hardware Transfer: You will need to move your existing hotend, extruder, and leveling sensor to this plate. Ensure all standoffs and vibration-dampening washers are reused exactly as they were originally positioned.
Risk: Self-installation is performed entirely at your own risk.
Condition Note: Safe-Pull Inspected
⚠️ PRE-OWNED HARVEST COMPLIANCE: Every assembly has been meticulously inspected for structural and motion integrity.
Plate Flatness: The metal back plate is verified to be perfectly flat, with no bends or warping from previous thermal cycling or nozzle impacts.
Wheel/Pulley Health: The V-wheels are checked for "flat spots," pitting, or signs of dry-rot. The bearings inside the pulleys rotate silently and smoothly, ensuring your X-axis movement is noise-free and fluid.
Mounting Integrity: All factory-threaded holes are verified for clean, unstripped threads.
Key Features
Genuine Elegoo Factory Hardware: Guarantees 100% compatibility with your Neptune 4 Max’s X-axis rail profile. Generic carriage plates often feature incorrect wheel spacing, leading to jittery movement or "banding" in your prints.
All-in-One Carriage Solution: Includes the steel back plate and pre-installed V-wheel pulleys. This eliminates the need to press-fit or align new wheels onto an old, potentially bent plate.
Factory-Spec Rigidity: Constructed from heavy-duty steel to handle the high-torque, high-acceleration demands of the Neptune 4 Max’s print head movement without flexing.
Integrated Mount Points: Features factory-precision mounting holes for the toolhead, leveling probe, and cable management harness, ensuring a seamless, no-modification installation.
Symptoms This Replacement Resolves
"Wobbly" Toolhead: If you can physically shake or tilt the printhead despite tightening the adjustment nuts, the original plate or the wheels are likely fatigued/worn.
First-Layer Inconsistency: If the nozzle tilt causes one side of the print to adhere while the other does not, this plate replacement fixes the geometry of the toolhead.
Noisy X-Axis Movement: Replace this assembly if your printer makes a "grinding" or "rumbling" sound during X-axis travel, indicating failed or pitted wheel bearings.
Nozzle Crashes: Replaces plates that were physically bent or warped due to accidental nozzle contact with the build plate.
Technical ModelElegoo Neptune 4 MaxComponent TypePrinthead Back Plate with V-Wheel PulleysConditionUsed Original OEM (Tested, Performance Verified)Donor OriginAuthenticated Elegoo Neptune 4 Max Pull
