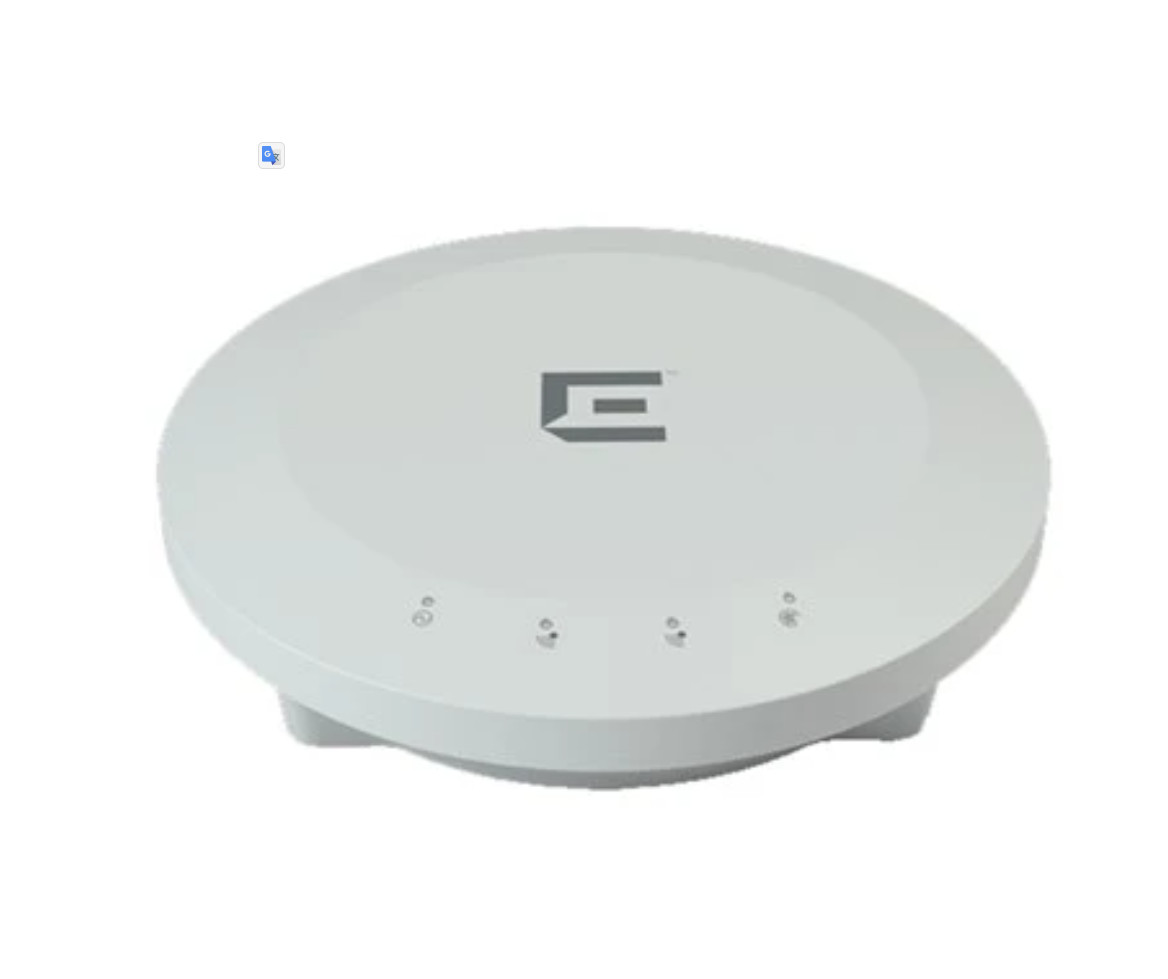

Extreme-Networks WS-AP3915i-ROW802.11ac Wave 2 Indoor Access Point with Internal Antenna Mfr Part #31029 - WS-AP3915i-ROW - Extreme Indoor Access Point - Cloud-ready - Dual band - Dual Radio 802.11ac/abgn - 2x2:2 MIMO Indoor Wave - 2 access point with four internal antenna array and integrated BTLE/802.15.4 radio Feature Rich Enterprise-Grade Performance and Security The AP 3915i is designed to blend into any office, carpeted enterprise, or classroom environment and offers multiple connectivity options including 2.4G, 5G, and BLE/802.15.4 (e.g. Thread™) for location services and connectivity to Internet of Things (IoT) sensors and devices.Built Using Proven Technology The AP 3915 offers 802.11ac Wave 2, dynamic radio management, spectrum analysis with interference classification, beamforming, multi-user MIMO, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control to ensure consistent and secure connectivity to users and sensors. ExtremeCloud™Enabled The AP 3915 supports zero touch provisioning and secure connectivity to ExtremeCloud™, with a single pane of glass for unified cloud management of Extreme switching and wireless LAN across your network.Specifications: General - Fully-Featured Enterprise Class AP
- 2 Wi-Fi Radios
- 2x2 MIMO Implementation for High-Performance 11ac & 11n Throughputs
- 2 Spatial Streams
- 2 Simultaneous Users (MU-MIMO)
- 300 Mbps Maximum Throughput 2.4GHz Radio
- 867 Mbps Maximum Throughput 5GHz Radio
- 1.167 Gbps Maximum Throughput Per AP
- 50,000 pps RFC2285 Wire/Wireless Forwarding Rate
- 8/16 SSIDs Supported Per Radio/Total
- 240/480 Per AP Simultaneous Users Per Radio/Total
- 30 or less Simultaneous Voice calls (802.11b, G711, R>80)
- Semi-autonomous Mode of Operation
- Plug and Play Operation/Zero Touch Deployment
- Security and Standards: WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12, SSL
- Internet of Things (IoT) Radio:
- Dual mode selectable (2.4 GHz with Co-Existence): Bluetooth Low Energy (BLE) 4.1
- Single and Dual mode operation (Classic and Low Power Profiles 802.15.4 -2011)
Multiple Operating Modes - Intelligent Thin AP: Encryption, Security, QoS and RF Management Services done at AP
- Distributed and Centralized Data Paths Within Same SSID
- Application Based Distributed and Centralized Data Paths Within Same User / Device Session
- Simultaneous RF Monitoring and Client Services
- BYOD / Device Fingerprinting Visibility
- Application / Layer 7 Visibility and Control
- In-Channel WIDS
- In-Channel WIPS
- Dedicated Multi-Channel WIDS (Guardian Mode)
- Dedicated Multi-Channel WIPS (Guardian mode)
- Dedicated Multi-Channel RF Spectrum Analysis and Fingerprinting
- Locates Devices and Threats via RF Triangulation
- Self-Forming and Self-Healing Meshing
- Remote Access Point
- Hardware-Based, End-to-End Data and Control Plane Encryption
- Private and Public Cloud Deployments
- SSL
- Policy Enforcement for Wireless Clients (L2-L7 Access Control, QoS, Rate Limiting, and VLAN Containment)
- Fabric Attach ready (end-to-end network orchestration and automation)
Hybrid Operation - Security Scanning and Serve Clients On Same Radio
- Security Scanning and Spectrum Analysis On Same Radio
- Spectrum Analysis and Serve Clients On Same Radio
- Multi-Channel Dedicated Security Scanning and Spectrum Analysis
Radio Characteristics Max Total Conducted Power (does not include antenna gain)* - Radio 1 (5GHz): 26 dBm (AP3915i), 23 dBm (AP3915e)
- Radio 2 (2.4GHz): 26 dBm (AP3915i), 23 dBm (AP3915e)
- IoT Radio: 3 dBm
Max Antenna Gain (Integrated Antenna) - Radio 1 (5GHz): 5.3 dBi
- Radio 2 (2.4GHz): 4.3 dBi
- IoT: 4.1 dBi
Adaptive Radio Management - Dynamic Channel Control: 802.11h: DFS and TPC support (ETSI)
- Efficient Use of the Spectrum with A Multi-Channel Architecture
- Automatic Transmit Power and Channel Control
- Self-Healing with Coverage Gap Detection
- Band Steering with Multiple Steering Modes
- Spectrum Load Balancing of Clients
- Airtime Fairness
- Performance Protection In Congested RF Environments
- Fast Transition Roaming (802.11k)
- Mitigates Co-Channel Interference with Coordinated Access
- Mitigates Adjacent Channel Interference with Optimized Receive Sensitivity
- Efficient Reuse of Channels At Shorter Intervals
- Mitigates Non 802.11 Interference Without Dedicated Radios
- Probe Suppression and Client Link Monitoring
- Management Frame Protection (802.11w)
Quality of Service - Quality of Service (WMM, 802.11e)
- Power Save (U-APSD)
- Fast Secure Roaming and Handover Between APs (802.11r)
- Pre-Authentication (Pre-Auth)
- Opportunistic Key Caching (OKC)
- Bonjour/LLMNR/UPNP Identification, Containment and Control
- Supports Voice, Video, and Data Using the Same SSID
- Prioritizes Voice Over Data for Both Tagged and Untagged Traffic
- Rate Limiting (Rule and User-Based)
- Rule and Role Based Qos Processing
Multicast Rate Control - Multicast to Unicast Conversion
- Adaptable Rate Multicast
- Power Save Mode Optimization for Multicast
Wireless Services - Media Access Protocol
- Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: Performance Table, check on datasheet
- 802.11ac: Performance Table, check on datasheet
- Receiver Sensitivity 802.11a:
- -94dBm @ 6Mbps
- -79dBm @ 54Mbps
- 802.11g:
- -95dBm @ 6Mbps
- -79dBm @ 54Mbps
- 802.11n: See 802.11n Receiver Sensitivity Table, check on datasheet
- 802.11ac: See 802.11ac Receiver Sensitivity Table, check on datasheet
- Frequency Bands
- 802.11 ac/a/n:
- 5.15 to 5.25 GHz (FCC/IC/ETSI)
- 5.25 to 5.35 GHz (FCC/IC/ETSI)*
- 5.47 to 5.725 GHz (FCC/IC/ETSI)*
- 5.725 to 5.850 GHz (FCC/IC)
- 802.11b/g/n:
- 2.400 to 2.4720 GHz (FCC/IC)
- 2.400 to 2.4835 GHz (ETSI)
- *FCC/IC DFS planned after release
- Wireless Modulation
- 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM with OFDM
- 802.11ac Packet Aggregation: A-MPDU, A-MSDU
- 802.11ac Very HighThroughput (VHT): VHT20/40/80
- 802.11ac Advanced Features: LDPC, STBC, Maximum Likelihood (ML) Detection
- 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
- 802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU
- 802.11n Advanced Features: LDPC, STBC and TxBF
- 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM
- 802.11g: DSSS and OFDM
- 802.11b: DSSS
Interfaces - Uplink: 1x 10/100/1000 Mbps auto-sensing Ethernet port
- Console Port: RJ45
- USB Port: USB 2.0 (AP3915e)
- Ext. 12VDC
Mounting - Integrated Wall Mounting
- Single/Dual Gang (Junction) Box Installation
- Drop-ceiling mounting bracket (p/n: 37201 included)
Environmental - Plenum rated (UL 2043) (AP3915i)
- Operating Temperature: AP3915i 32° F to 104° F/ 0° C to +40° C
- Humidity: 0%-95% (noncondensing)
- Operating Temperature: AP3915e
- -4° F to 131° F/ -20° C to +55° C ambient temperature anywhere
- -4° F to 140° F/ -20° C to +60° C ambient temperature near sea level
- Storage Temperature -40° C to +70° C (-58° F to +158° F)
- Transportation Temperature -40° C to +70° C (-58° F to +158° F)
Wireless and EMC |
|
