EXCLUDING POWER SUPPLY


EXCLUDINGNETWORK CABLES

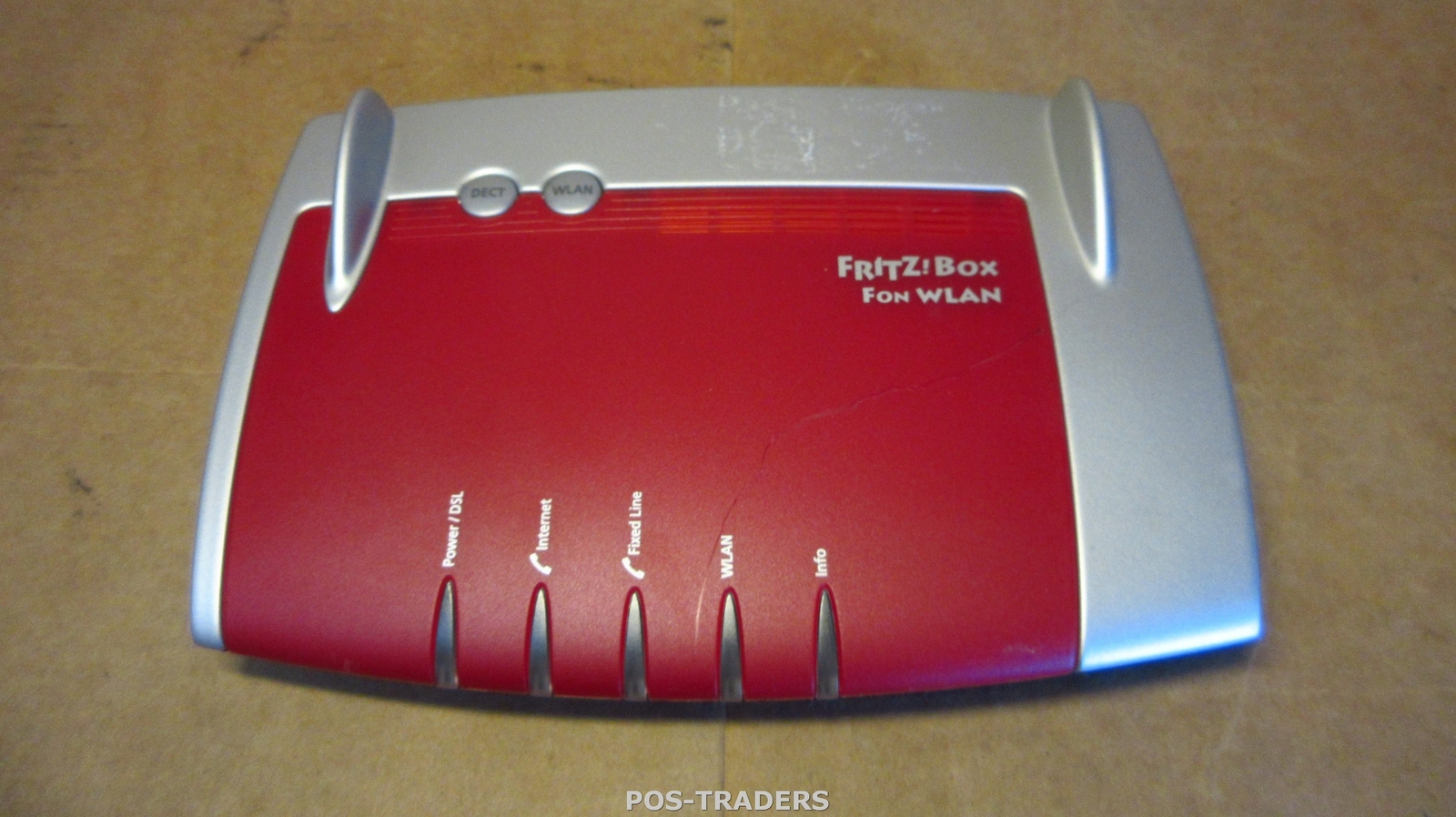

See photos for actual item!

Price is for 1 item.

Router functions

• High-performance WLAN router with firewall/NAT, DHCP server, DynDNS client, UPnP
• Integrated ADSL modem for ADSL (6 Mbit/s), ADSL2+ (24 Mbit/s) and VDSL (100 Mbit/s)
• Router operation, even at cable modem or with UMTS stick (UMTS/HSPA)
• Full support for IPv6 in home network and Internet
• Setup in browser independent of operating system, allows use with Windows, Mac OS and Linux computers
• Stateful Packet Inspection Firewall with port activation for secure Internet surfing
• Secure remote access to FRITZ!Box network with VPN (IPSec)

Telephony functions

• Telephone system for Internet and fixed-line network
• Integrated DECT base station for up to 6 cordless telephones
• ISDN S₀ bus for connecting ISDN telephones or an ISDN telephone system
• 2 a/b ports for connecting analog telephones, answering machines and fax machines
• DECT: secure straight out of the box thanks to encrypted speech transmission
• Internet telephony, even when your PC is switched off
• Supports HD telephony for natural sound
• Bandwidth management - optimum quality telephoning and surfing via ADSL
• Full Eco-Mode DECT reduces field strength and energy consumption
• Up to 5 internal answering machines, voice-to-mail included
• Fax reception includes e-mail forwarding (Fax-to-Mail)
• Extensive PBX functionality, such as call diversion, internal calls, three-way conferences, switching, number blocking, wake-up call, VIP calls, ring blocking and caller number forwarding with Internet and ISDN telephony
• Internet telephony SIP-compliant with RFC 3261

WLAN functionality

• WLAN wireless networks compliant with 802.11n (up to 300 Mbit/s* for each frequency band), downward compatible with 802.11g/b/a
• Dual-band WLAN N with simultaneous 2.4 and 5 GHz
• Pre-configured individual WLAN encryption with WPA/WPA2 Mixed Mode, WPA2,WPA, WEP-64 or WEP-128
• AVM Stick & Surf: automatically secure and wireless surfing
• WLAN push-button (switch WLAN on/off manually)
• Wi-Fi Protected Setup (WPS) for really simple and secure WLAN connections at the press of a button or with a PIN
• WLAN guest access - secure surfing for friends and visitors
• Integrates iPhones and Android smartphones wirelessly in the home network and allows forfixed-line and Internet telephony
• Support for Wireless Distributed System (WDS) to extend wireless coverage
• WLAN Eco-Mode reduces field strength

Media functions

• 512 MB integrated network storage with NAS functionality
• FRITZ!NAS - simple access via browser to all files in the network, no matter
• where they are saved
• Media server distributes music, pictures and films (SMB, FTP, UPnP AV)
• High-performance processor for networked applications, such as IPTV, video
• on demand and music streaming

Connection options

• Connect to ADSL+ ISDN or ADSL + analog fixed-line network
• 4 gigabit Ethernet connection (10/100/1000 Base-T) for computers, games consoles
• 2 connections for analog telephone, fax and answering machine
• ISDN S₀ NT for up to 8 ISDN terminals
• 2 USB 2.0 ports for network storage and printer and for Stick & Surf

System requirements

• For ADSL: ADSL or VDSL connection as per 1TR112/U-R2
• For LAN connection (standard Ethernet, 10/100 Base-T): PC, notebook,
• Mac, games console or other network-enabled devices
• For WLAN connection: WLAN client as per IEEE 802.11n, g, b or
• For FRITZ!ADSL software package: Windows 7/Vista/XP
• Device dimensions 226 x 159 x 47 mm, wall or tabletop mounting
• Average power consumption: 8-11 watts

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
