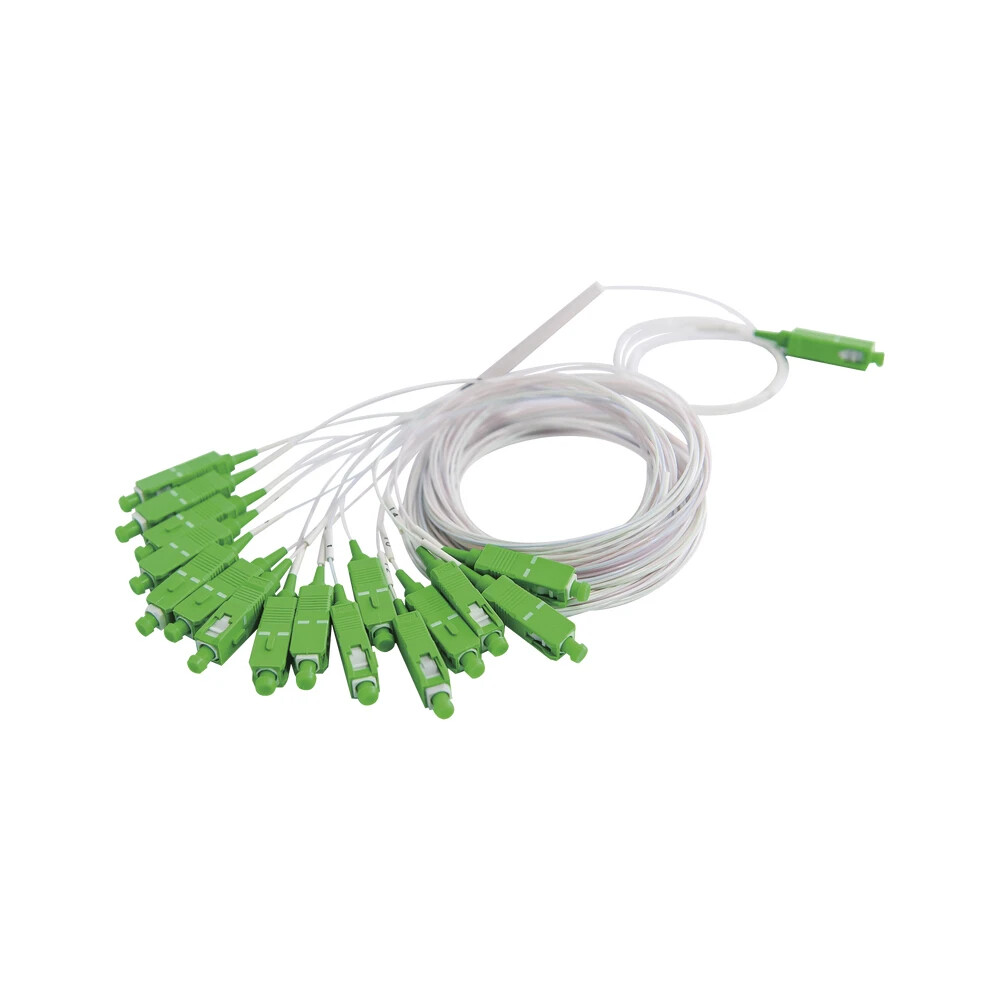

Fiber Optical Splitter 1 X 16 with SC/APC Output Connectors 1*16 PLC FTTH 0.9mm
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Fiber Optical Splitter 1 X 16 with SC/APC Output Connectors 1*16 PLC FTTH 0.9mm
Price: US $24.87
Individual Packing, 5 ft (1,5 m)
Technical Specifications:
  • Ø0.9mm input loose tube pigtail without connector
  • Ø0.9mm output loose tube pigtail without connector
  • Adopts G.657A optical fiber
  • Microencapsulation
  • Provides split ratio 1x16
  • 4.92 ft (1.5 meters)

Optical Properties:

  • Wavelength Range: 1260 ~1650nm
  • Maximum Input Power: >300mW
  • Directivity: >55dB
  • WDL: <0.5dB
  • PDL: <0.3dB

Applications:

  • FTTx
  • LAN, WAN
  • CATV
  • Tests and measurements
