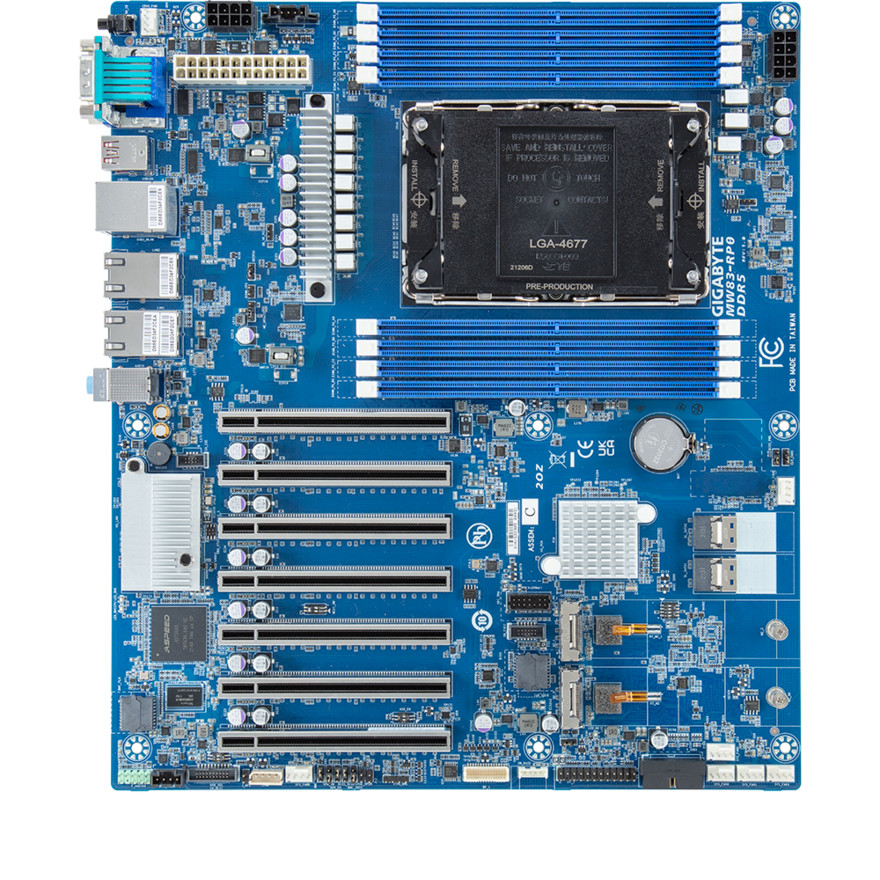

Board SizeCEB
304.8W x 266.7D mmProcessor SupportedIntel® Xeon® W-3400 Processors
Single processor, TDP up to 350WSocket1 x LGA 4677
Socket EChipset DescriptionIntel® W790 ChipsetMemory Type8 x DIMM slots
DDR5 memory module supported only
8-channel memory architecture
RDIMM modules up to 64GB supported
RDIMM-3DS modules up to 256GB supported
Memory speed: up to 4800 MHzNOTE: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0Integrated Network2 x 10GbE LAN ports (Intel® X710-AT2)
1 x 10/100/1000 Management LAN (Realtek® RTL8211FD)Integrated Video ControllerIntegrated in Aspeed® AST2600
- 1 x VGA PortIntegrated Audio ControllerRealtek® ALC897 HD audio codec
Supports 2/4/5.1/7.1 channel configurations
3 ports Audio Jack (Audio in/Audio out/Mic)Integrated SAS ControllerN/AIntegrated SATA Controller2 x SlimSAS with 8 x SATA 6Gb/s portsSupport RAID FunctionIntel® SATA RAID 0/1/10/5Expansion SlotSlot_7: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU
Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from PCH
- Supports NGFF-2280 cards2 x U.2 connectors:
- SlimSAS type
- 8 x SATA 6Gb/sOn-Board Connector1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors for CPU and DDR 12V input
1 x CPU fan header
6 x System fan headers
2 x USB 3.2 Gen1 headers
1 x Front audio header
1 x PMBus connector
1 x Clear CMOS jumper
2 x SlimSAS ports
2 x M.2 slots
1 x Front panel header
1 x Backplane board header
1 x TPM header
1 x VROC connectorRear I/O Connectors1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x USB 3.2 Gen2 Type-A
1 x USB3.2 Gen2x2 Type-C
1 x ID button with LED
3 x Audio jacksTPM1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010OS Driver SupportedWindows 11 Enterprise (x64)
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
CentOS Stream 9 (x64)
Debian 11.5.0Server ManagementASPEED® AST2600PSU Connector1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectorsOperating PropertiesOperating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)Packaging Bundle1 x MW83-RP0
1 x I/O shield
1 x XCC CPU Carrier
1 x Quick start guide
1 x SlimSAS to SATA cableBox dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one cartonBulk Packaging Content10 x MW83-RP0
10 x I/O shields
10 x XCC CPU carriersCarton dimensions: 600 x 473 x 495 mmOrdering InformationRetail: 9MW83RP0MR-000-10*
Bulk: 9MW83RP0NR-000-10*Part numbers:
- I/O shield: 12AIO-MW83RP-00R
- XCC CPU Carrier: 12KRC-0I4677-00R
- M.2 heatsink: 12SP2-080027-00R
- SlimSAS to SATA cable: 25CFM-600700-A4R Delivery details:
