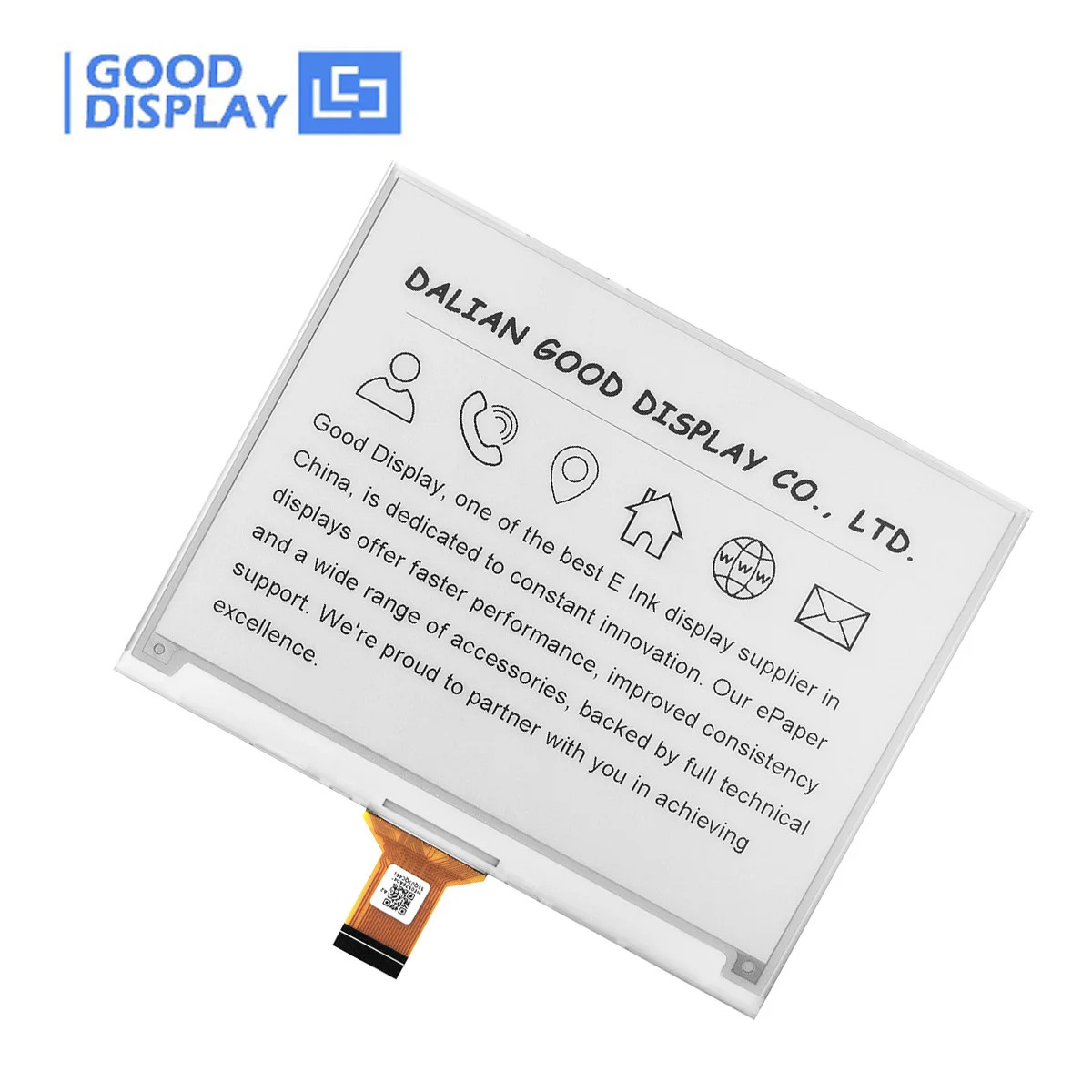

GooDisplay 5.76" HD E-Ink Display Module

920x680 Resolution • 198 DPI • SPI Interface • GDEH0576T81

Overview

This 5.76-inch E-Ink display module from GooDisplay delivers a crisp, paper-like reading experience with 920x680 resolution at 198 DPI. Featuring an SSD2677 controller IC and SPI interface, it's a professional-grade component ideal for e-reader development, digital notebooks, and IoT display projects. 📖✨

Key FeaturesUltra-Fast Refresh

0.3s partial refresh and 0.75s full refresh time, roughly 50% faster than conventional e-paper displays.

Paper-Like Display

170° wide viewing angle with no blue light emission for reduced eye strain, simulating a natural paper reading experience.

Zero Power Consumption

Consumes zero power when displaying static content, with deep sleep power as low as 0.003mW — ideal for battery-powered devices.

Development Ready

Compatible with matching adapter and demo boards for ESP32 and STM32 platforms for fast prototyping.

SpecificationsPart NumberGDEH0576T81Display Size5.76 inchResolution920 x 680 (198 DPI)Refresh Time0.3s Partial / 0.75s FullInterfaceSPI (24 Pin FPC Connector)Controller ICSSD2677Operating Temperature0°C ~ 50°CStorage Temperature-25°C ~ 60°COutline Size125.4 x 99.5 x 0.9mmActive Area117.668 x 86.972mmPackage Contents

1 x GooDisplay 5.76" E-Ink Display Module (variation-dependent: EPD Only, With ESP32 Kit, or With Adapter Board)

Product ImagesFAQQ: Is this a complete tablet or e-reader?

A: No, this is a raw E-Ink display module/panel intended for developers and integrators building their own devices.

Q: Does it need a driver board?

A: Yes, a compatible adapter or driver board is required for operation. Select the variation that includes one if needed.

Q: What platforms are supported for development?

A: Sample code and documentation are available for ESP32 and STM32 platforms.
