The ENGINEER PAD-02crimping tool kit is anultra precise crimping tool where the precision dies can be easily changed - thisprovides you with thecapability to crimp a multitude of different sized crimp pin types from the likes of Molex, JST, Tyco, JAE, Amp etc.
The kit comes with acrimping tool handle/frame (to which the die plates are fitted)+ all three available die plate sizes (small, medium & large), six transparent crimp pin storage boxes ...plus a custom hard plastic storage case to store everything in.
Click here for to watch the demo video of the crimping tool in action >>ENGINEER pad series handy crimping tool<<(please note, video is of the previous kit version, but the only thing that has changed is the case)
A pin compatibility chart availablevia this link >>ENGINEER Crimping Tool Pin compatibility chart<<(note: a 'O'on the chartmeans a pin is crimp-able & an 'X' means the pin is not crimp-able. Also when viewing the chart for this kit, you are essentially checking against the PAD-11, THE PAD-12 & THE PAD-13 columns because that's the spread/coverage of this kit)
- ultra precise crimping tool for open-barrel contacts with inter-changeable plates
- comes supplied with all 3 available crimping die plate sets ('S', 'M' & 'L') - allows crimping of over 300 different pin types
- easy die plate swap-out, with perfect alignment into the frame's jaws
- integral wire stripper & cutter
- spring loaded handles for easy operation (handles latch shut for storage)
- oil-resistant TPR (thermoplastic rubber) grips for unmatched comfort
- strap holes at end of handles
- constructed from special alloy steel
- made in Japan (ROHS Compliant)

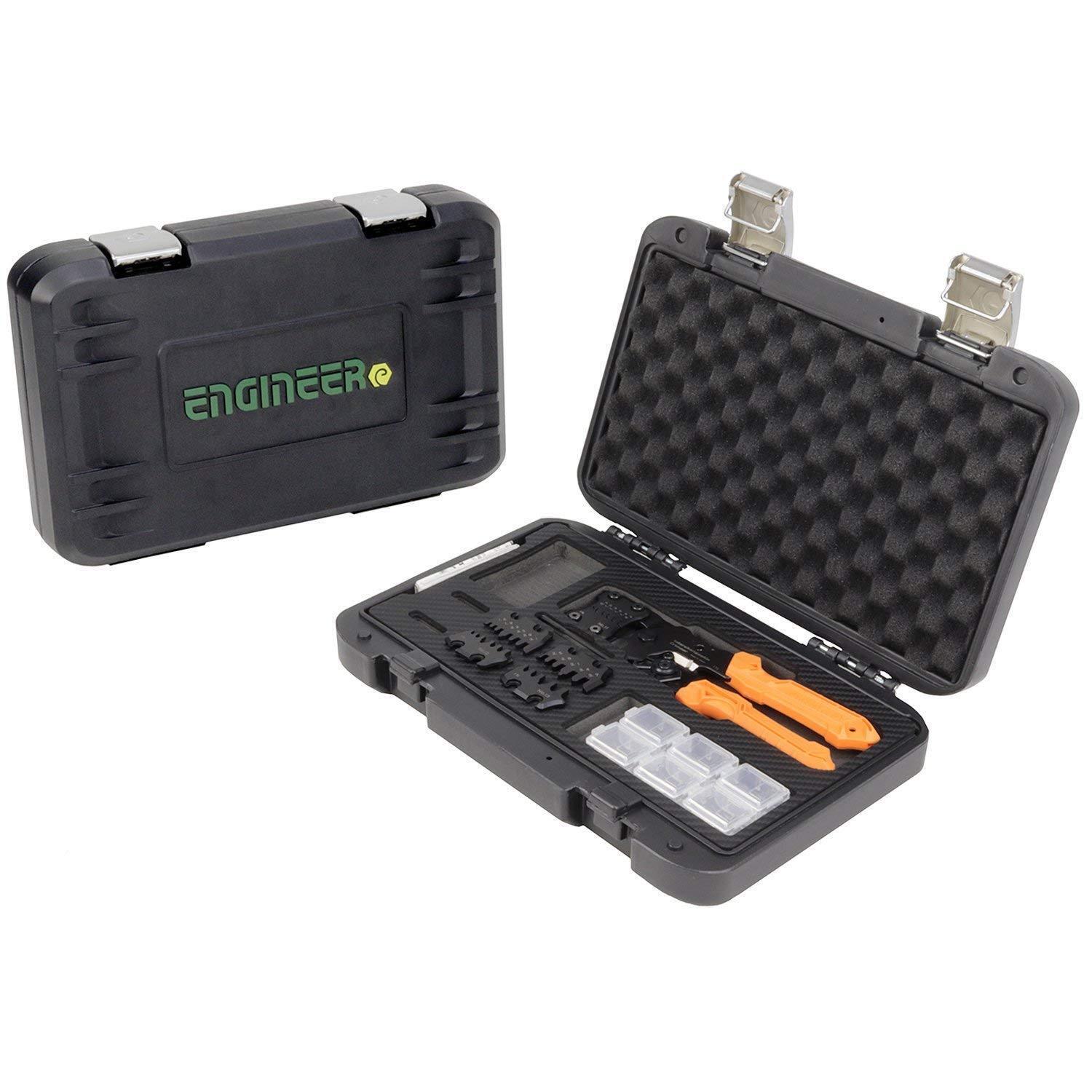

Kit Contents:
- PAD-11 crimping tool (pre-fitted with with the PAD-11S - size 'S' die plate set)
- PAD-12S die plate set (size 'M')
- PAD-13S die plate set (size 'L')
- 6 x crimp pin transparent storage boxes - external dimensions 20mm x 29 mm x 16mm
- 2.5mm hex key wrench (used for swapping out die plates)
- custom hard case (polypropylene) - external dimensions 240mm x 186mm x 48mm
- overall weight - 950g (approx.)
