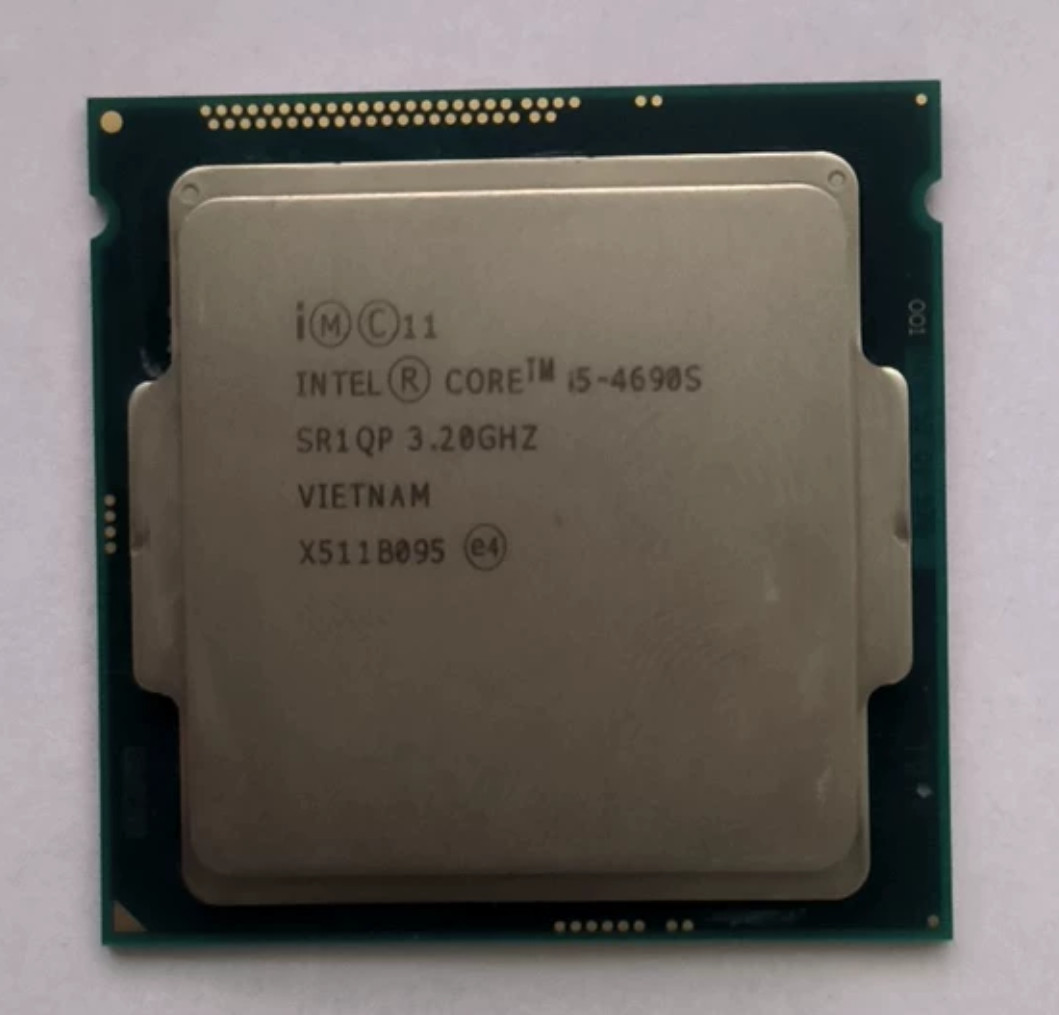

Essentials Product Collection 4th Generation Intel® Core™ i5 Processors Code Name Products formerly Haswell Vertical Segment Desktop Processor Number i5-4690S Lithography 22 nm CPU Specifications Total Cores 4 Total Threads 4 Max Turbo Frequency 3.90 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.90 GHz Processor Base Frequency 3.20 GHz Cache 6 MB Intel® Smart Cache Bus Speed 5 GT/s TDP 65 W Supplemental Information Marketing Status Discontinued Launch Date Q2'14 Expected Discontinuance 07/14/2017 Servicing Status End of Servicing Lifetime End of Servicing Updates Date Wednesday, June 30, 2021 Embedded Options Available No Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 32 GB Memory Types DDR3-1333/1600, DDR3L-1333/1600 @ 1.5V Max # of Memory Channels 2 Max Memory Bandwidth 25.6 GB/s ECC Memory Supported‡ No GPU Specifications GPU Name‡ Intel® HD Graphics 4600 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.20 GHz Graphics Video Max Memory 2 GB Graphics Output eDP/DP/HDMI/VGA Max Resolution (HDMI)‡ 4096x2304@24Hz Max Resolution (DP)‡ 3840x2160@60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 3840x2160@60Hz Max Resolution (VGA)‡ 1920x1200@60Hz DirectX* Support 11.2/12 OpenGL* Support 4.3 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Flexible Display Interface (Intel® FDI) Yes Intel® Clear Video HD Technology Yes # of Displays Supported‡ 3 Device ID 0x412 Expansion Options Scalability 1S Only PCI Express Revision Up to 3.0 PCI Express Configurations‡ Up to 1x16, 2x8, 1x8+2x4 Max # of PCI Express Lanes 16 Package Specifications Sockets Supported FCLGA1150 Max CPU Configuration 1 Thermal Solution Specification PCG 2013C TCASE 71.35°C Package Size 37.5mm x 37.5mm Advanced Technologies Intel® Turbo Boost Technology‡ 2.0 Intel® Hyper-Threading Technology‡ No Intel® Transactional Synchronization Extensions No Intel® 64‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Intel® My WiFi Technology Yes Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Identity Protection Technology‡ Yes Security & Reliability Intel vPro® Eligibility‡ Intel vPro® Platform Intel® Secure Key Yes Intel® AES New Instructions Yes Intel® OS Guard Yes Intel® Trusted Execution Technology‡ Yes Execute Disable Bit‡ Yes Anti-Theft Technology Yes Intel® Stable IT Platform Program (SIPP) Yes Intel® Virtualization Technology (VT-x)‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d)‡ Yes Intel® VT-x with Extended Page Tables (EPT)‡ Yes
